11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp

11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp photo-1
11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp photo-2
11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp photo-3
11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp photo-4
11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp photo-5
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
3
Input Voltage(V):
85-277
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source SMD2835
Warranty(Years) 3
Input Voltage(V) 85-277
Lamp Power(W) 11
Lamp Luminous Flux(lm) 1130
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Warm White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Other, Aluminum+PC
IP Rating IP44
Certification CE, PSE
Place of Origin Guangdong, China
Brand Name Toplight
Model Number Other, TP-G10SMD205-20

11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp





Features:

  • Wattage: 11W
  • Colour Temperature: 3000K Warm White,4000K Natural White,6000K Cool White
  • Base: G10q
  • Lumens:  950lm or 1100lm

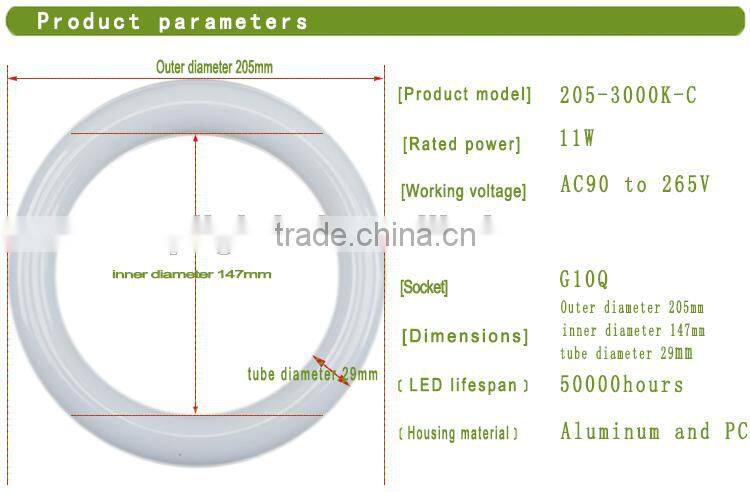

  • Dimensions: Dia205mm*29mm
  • CRI: >75
  • Replacement of T9 20W Tradional Circular Tube Respectively
  • Retrofits T9 Circular Fluorescent Lamp
  • Aluminium Housing, Transparent/Milky PC Cover
  • Shock Resistant
  • Instant Start
  • Input: 85-277VAC
  • Life Time 50,000 Hours
  • 3Y Warranty,CE RoHS PSE approved

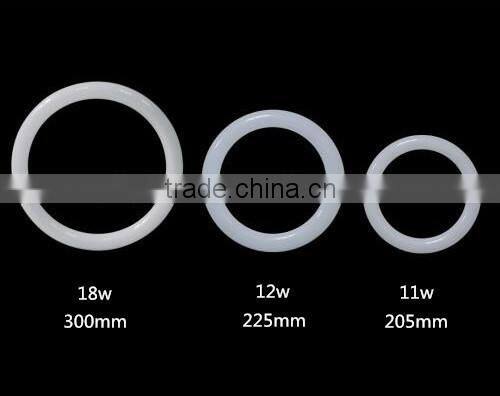

Model No. TP-G10SMD205-20 TP-G10SMD225-30 TP-G10SMD300-32
Dimension Dia205*29mm Dia225*29mm Dia300*29mm
Power 11w 12w 18w
Replace Philips 20w 30w 40w
Led quantity 84pcs 108pcs 150pcs
LED chips Taiwan Epistar 2835 SMD
Light efficiency 85-90lm/w, 95-100lm/w
Input Voltage 100-265VAC, 85-277VAC
CCT 2700K ~ 6500K(Warm white,pure white,cold white)
CRI >70Ra,>80Ra Optional
Power factor >0.95
Housing materials Aluminum + Clear/Milky PC cover
Socket G10Q
Power supply install Internal/External, non-isolated/Isolated

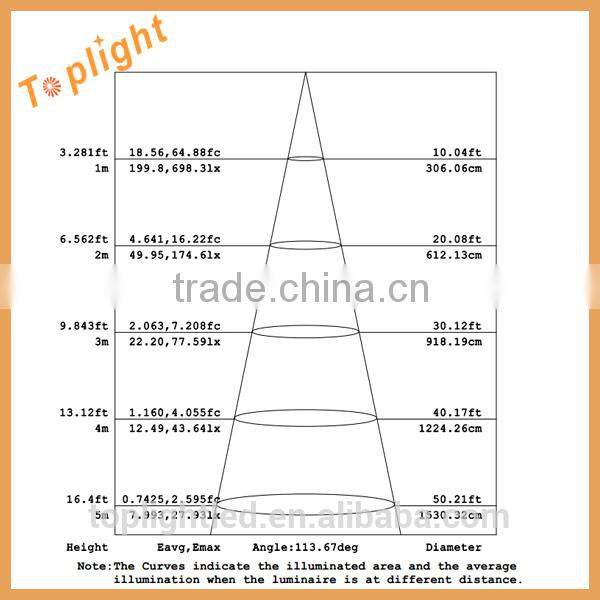

Beam angle >120 degree
Lifespan 50000hours





11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp






Caution:

  • Isolate Power Before Fitting Tube
  • Disconnect Starter And Capacitor
  • For Better Power Efficiency, We Recommoned you Bypass The Ballast As Well

 11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp

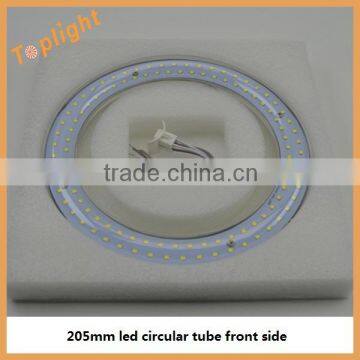

Image Details:

11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp

11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp

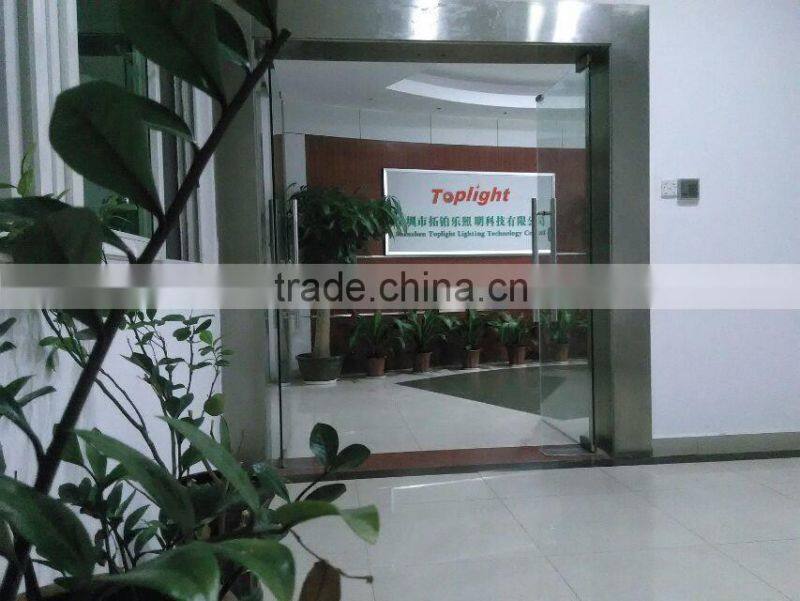

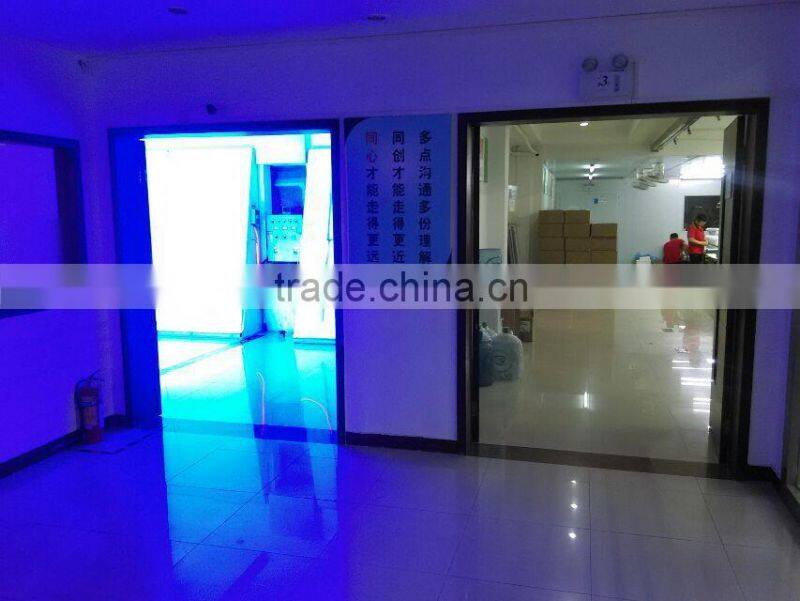

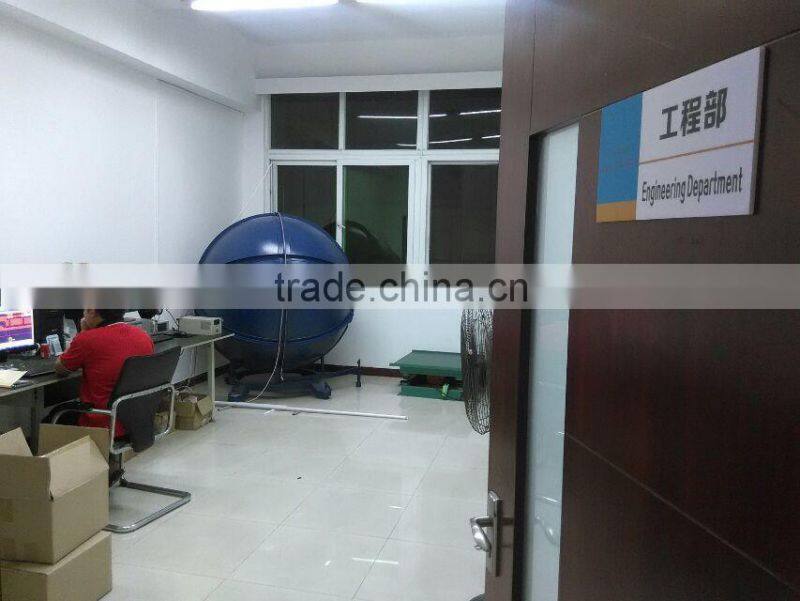

Factory pictures:

11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp11W G10q Base LED Circular Tubes Circline LED Bulbs Circle LED Lamp
