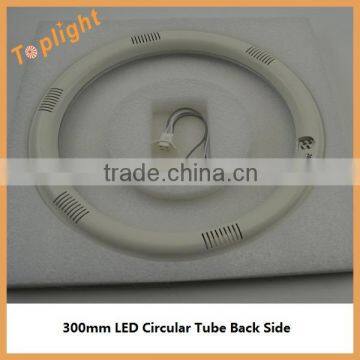

PSE Approved cool white 300mm circline led light t9
T9 Tube & G10Q Socket LED Circular Ceiling light
Model Optional: TP-G10SMD205-20(11w), TP-G10SMD225-30(12w),TP-G10SMD300-32(18w)
Application:
1.Illumination lighting for homes,offices,restaurants,hotels,malls,buses,trains,warehouses,parking lots etc.
2.Task lighting for cabinets, cupboards etc in your homes,restaurants,and kitchens or any other places where accent lighting is required.
3.Dispplay lighting for the articles in your stores and shops.
4.Back lighting for square billboards or advertisement boards.
Product Spec:
| Model number: TP-G10SMD300-32 |
| Power: 18W |
| LED Source: smd2835/150pcs |
| Colors: WW(2700k-3500k),NW(4000k-4500k),CW(6000k-6500k) |
| Housing material: Aluminum and PC |
| Efficiency: 100lm/w |
| Voltage: 85-277VAC |
| Driver type: Internal rubycon isolated driver |
| Power factor: >0.95 |
| Beam angle: 120degrees |
| CRI: 70/80Ra |
| Lifespan: 50000hours |
Circular tube models parameters:
|
Tube Length (mm) |
Model No. |
Socket |
LED Quantity (pcs) |
Luminous Flux (lm) |
205mm±0.5mm |
TP-G10SMD205-20 |
G10Q |
84LEDs |
1020-1130LM |
225mm±0.5mm |
TP-G10SMD225-30 |
G10Q |
108LEDs |
1050-1260Lm |
300mm±0.5mm |
TP-G10SMD300-32 |
G10Q |
150LEDs |
1550-1560Lm |
Power |
11W, 12W, 18W |
LED Quantity |
84LEDs,108LEDs,150LEDs |
Input voltage |
85-277VAC |
Beam Angle |
>120degree |
Power Factor |
>0.95 |
Power Efficiency |
>92% |
Material |
AL+PC |
Color Temperature |
Warm White(2700-3500K) |
Natural White(4000-5000K) | |
Cool White(6000-6500K) | |
Tube PC |
Clear PC |
Frosted PC |
Features:

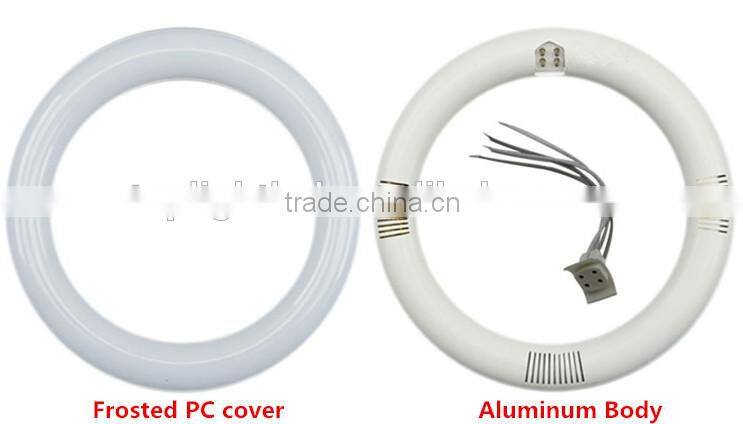

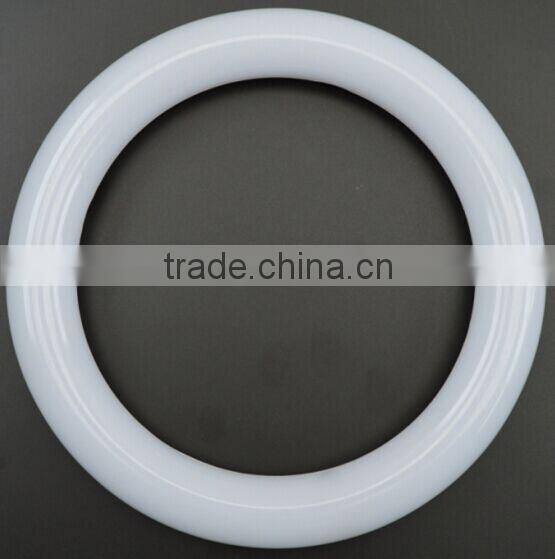

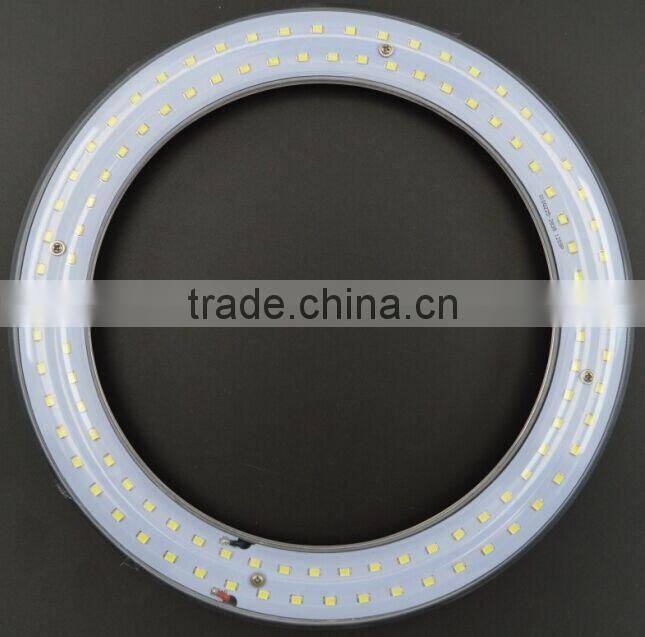

- Good material: Epistar Chip 2835 SMD LED + High thermal conductivity aluminum PCB + Aluminum Board + Frosted/Clear PC cover.
- High quality: Good heat dissipation,80Ra,high PF,low power consumption,CE&RoHS&PSE.

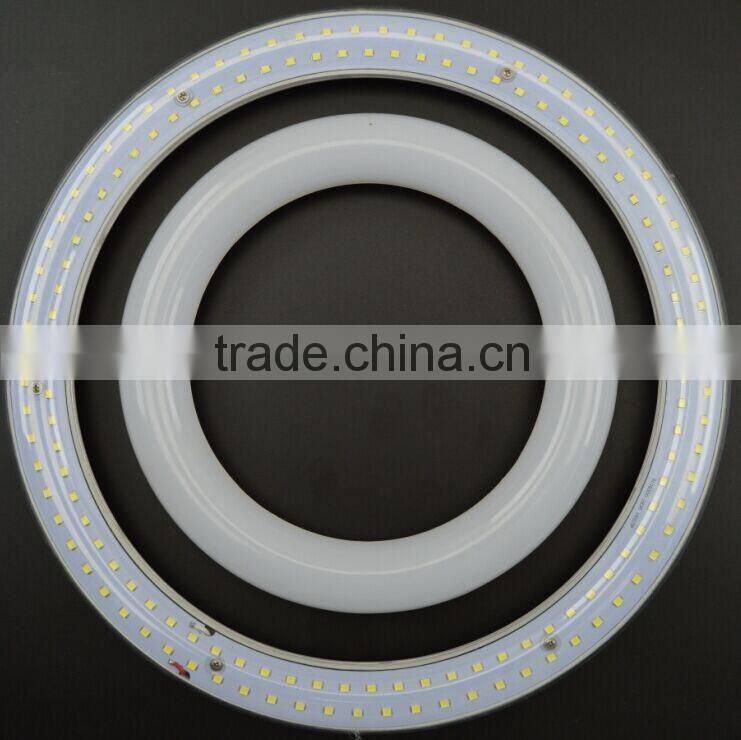

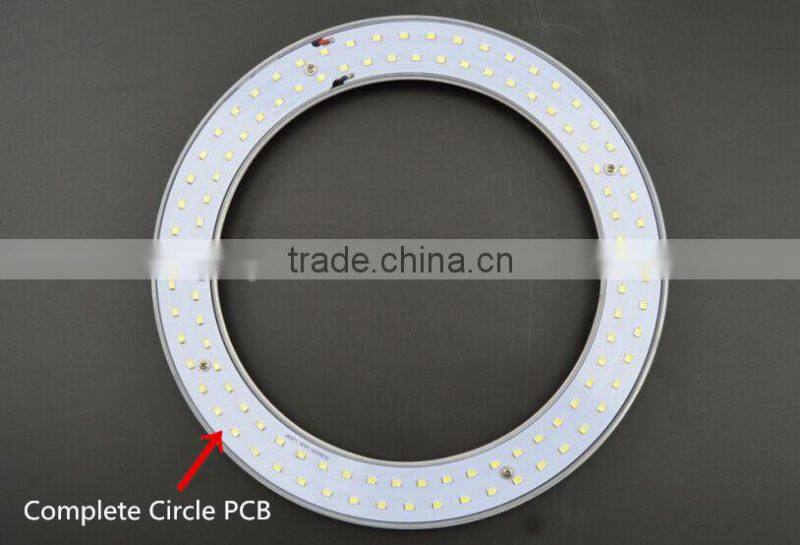

- Aluminum PCB: A complete Circle PCB,not combined with 4pcs PCB like before.

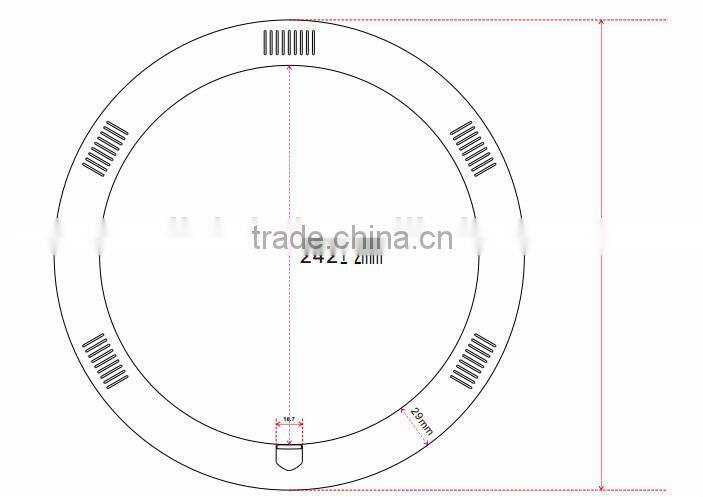

- Dimension: dia205*29mm(11W), dia225*29mm(12W), dia300*29mm(18W)
- Good service: 3years warranty,Free laser marking for your Logo.
- Long life: Built-in Japan RUBYCON capacitor Isolated driver,30000-50000hours lifespan.

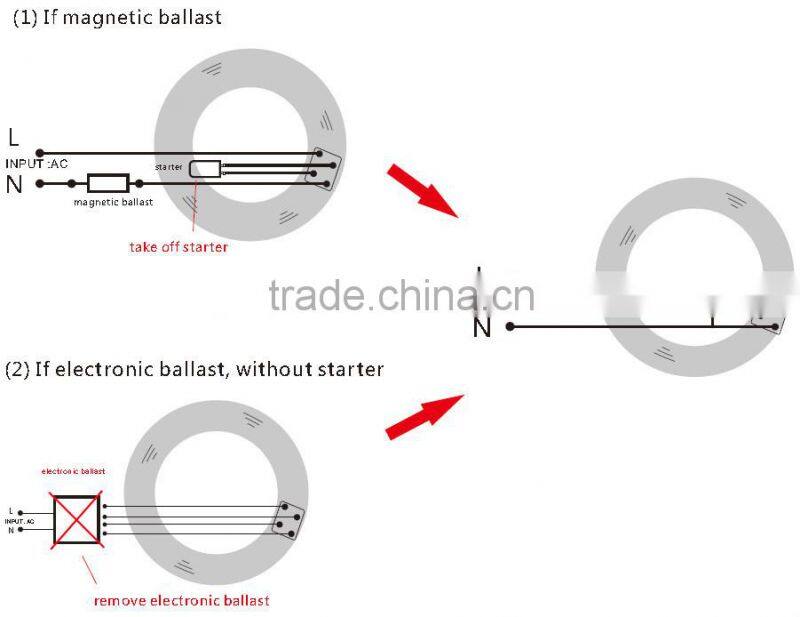

Installation:

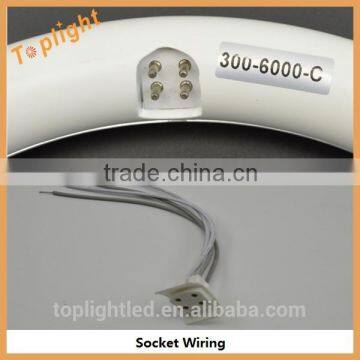

18W Circular T9 LED Tube Light could be installed on the G10Q base lamp.
Kindly Notice: before installing, please make sure the power source is off!

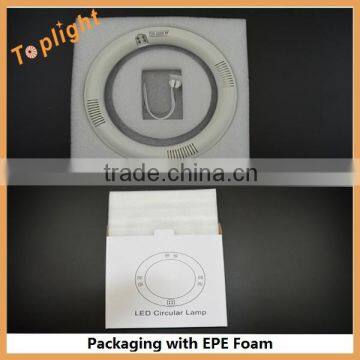

Package:
Bubble bag+White Box: 12PCS/CTN,545*275*280mm

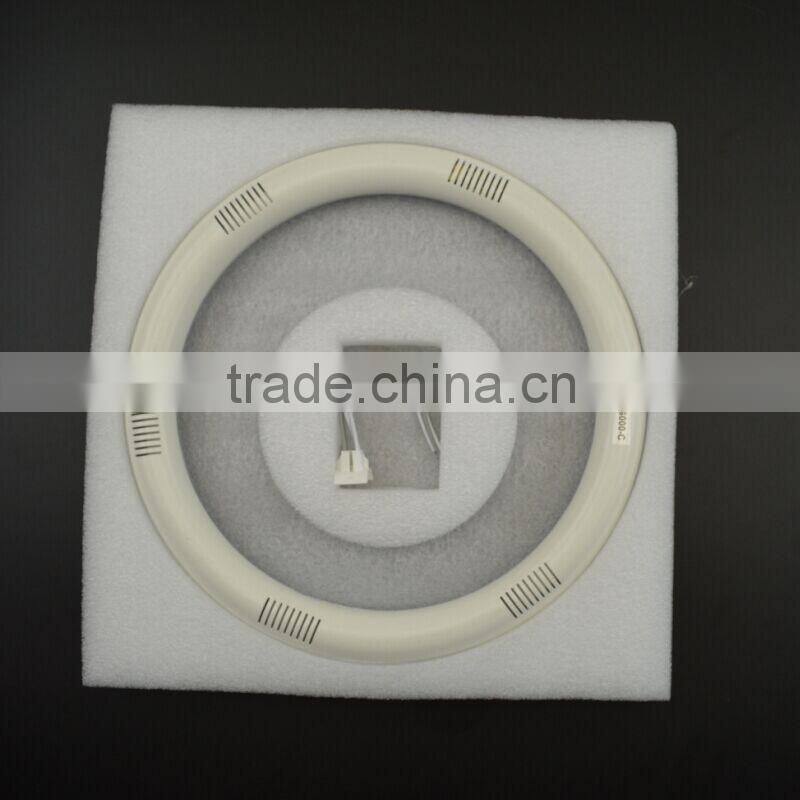

EPE+White Box: 10PCS/CTN, 545*275*280mm
Shipping:
