Home > Products > Fiberglass sleeving > High Temperature Fiberglass Sleeving

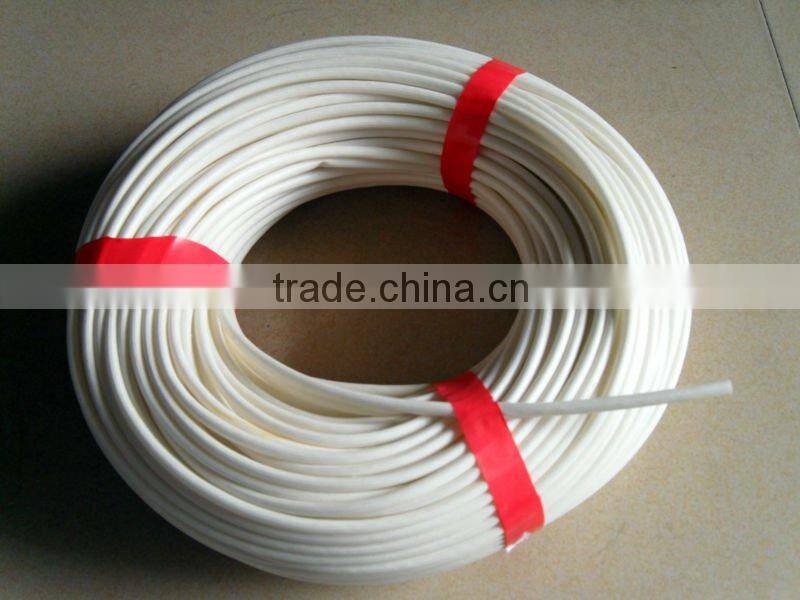

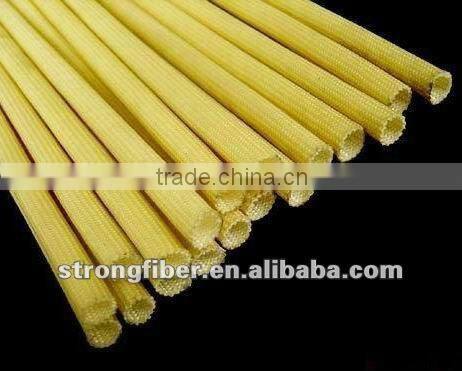

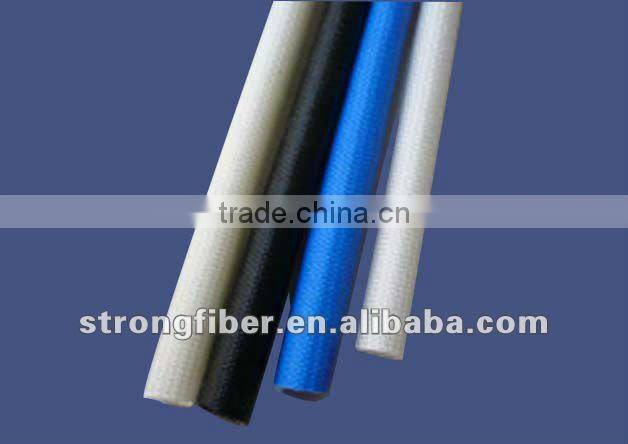

High Temperature Fiberglass Sleeving
US$ 0.0272 - 0.736
/ Meter
10000 Meters(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | strong | |
| Model Number | 0.5-32mm | Type | Insulation Sleeving | |
| Material | Fiberglass | Application | High Voltage | |
| Rated Voltage | 1.5-10KV | Tensile Strength | HIGH |
Product Description
high temperature sleeving
We could provide you DSG with different voltages: DSG-1(1.5KV), DSG-2(2.5KV),DSG-3(4KV),DSG-4(7KV),DSG-5(10KV)
Thermal Class:H
Color: we could provide you the color as your requirements.
Application: Silicone fiberglass sleeving is widely used in wiring insulation and mechnical protection for electric motors, transformers and electrical instruments. The following is some specifications:
| Inside diameter(mm) | Tolerance(mm) | Wall Thickness(mm) | ||||
| DSG-1 | DSG-2 | DSG-3 | DSG-4 | DSG-5 | ||
| 0.5-2.5 | +0.3 -0.0 | 0.40±0.12 | 0.41±0.12 | 0.43±0.12 | 0.47±0.12 | 0.51±0.12 |
| 3.0-4.5 | 0.46±0.13 | 0.408±0.13 | 0.51±0.13 | 0.54±0.13 | 0.59±0.13 | |
| 5.0-8.0 | 0.50±0.15 | 0.52±0.15 | 0.55±0.15 | 0.59±0.15 | 0.64±0.15 | |
| 9.0-12 | 0.60±0.18 | 0.62±0.18 | 0.66±0.18 | 0.70±0.18 | 0.75±0.18 | |
| 14.0-16.0 | 0.62±0.18 | 0.65±0.18 | 0.80±0.18 | 0.85±0.18 | 0.96±0.18 | |
| 18.0-25.0 | 0.64±0.18 | 0.66±0.18 | 0.82±0.18 | 0.86±0.18 | / | |
| 26.0-32.0 | 0.66±0.18 | 0.68±0.18 | 0.88±0.18 | 0.92±0.18 | ||
We also could produce it according to the customer's requirement.
