Help CenterGuangzhou Icesource Tube Ice Making Machine Myanmar
Related Products
-
Myanmar Tube Ice Maker 5 Ton per DayUS$ 1 - 100,000MOQ: 1 Set -
Tube Ice Machine for Myanmar 10 Ton per DayUS$ 1 - 100,000MOQ: 1 Set
-
12 Tons in Africa Country Ice Plant Ice Tube Machine Edible IceUS$ 1 - 1,000,000MOQ: 1 Set
-
Iran 20 Tons Client Cases Tube Ice Maker Machine Ice Plant OperateUS$ 1 - 1,000,000MOQ: 1 Set
-
22mm 28mm 35 mm Tube Ice Maker Machine Market Popular With Ice Bin PackingUS$ 1 - 1,000,000MOQ: 1 Set

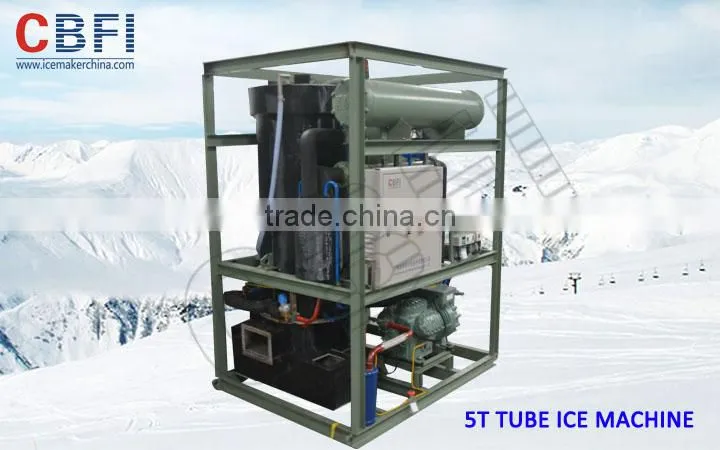

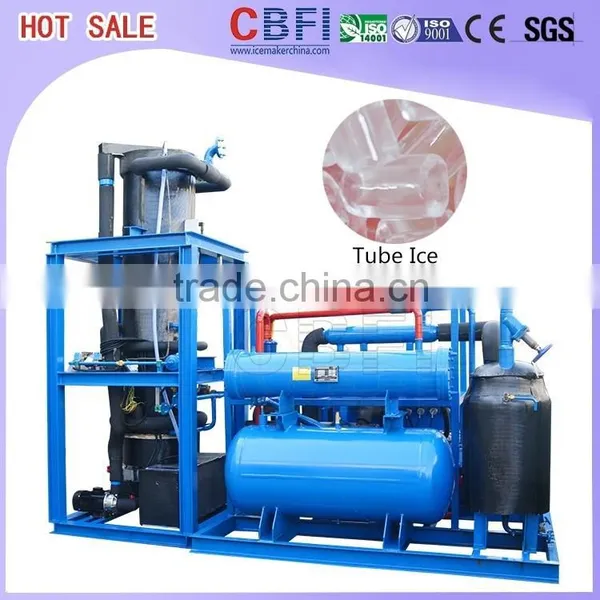

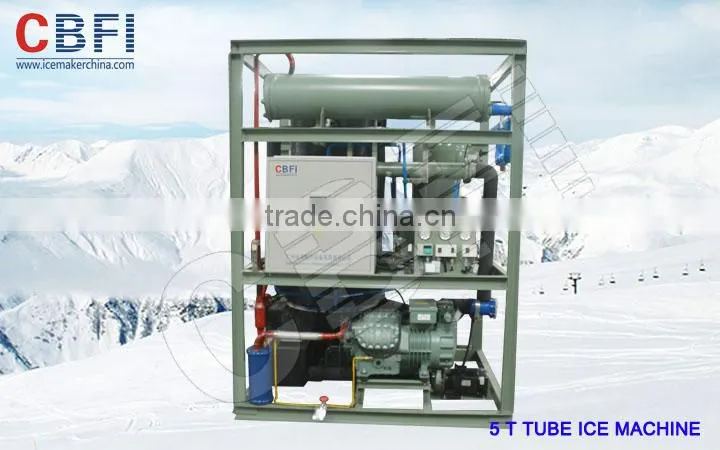

Hot sale Ice Maker Machine With Tube Ice 5 ton per day
Ice Machine size 1600x1400x2250 mm
Tube Ice Application

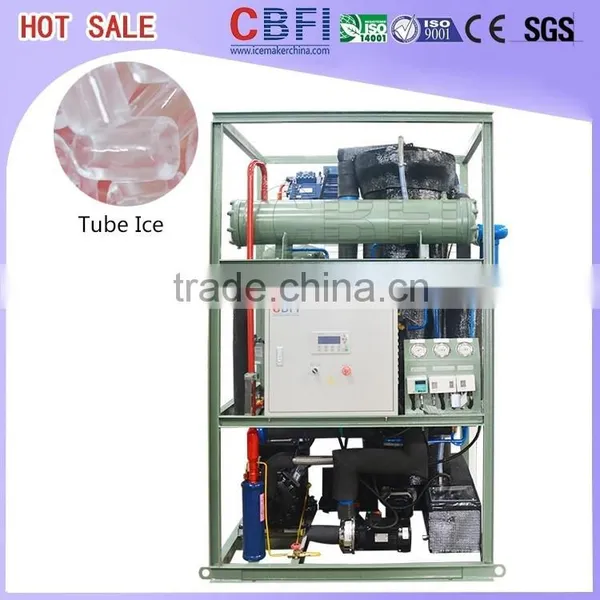

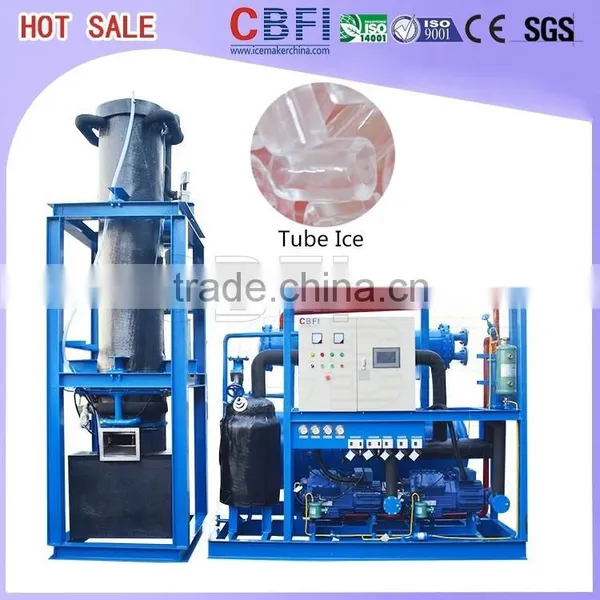

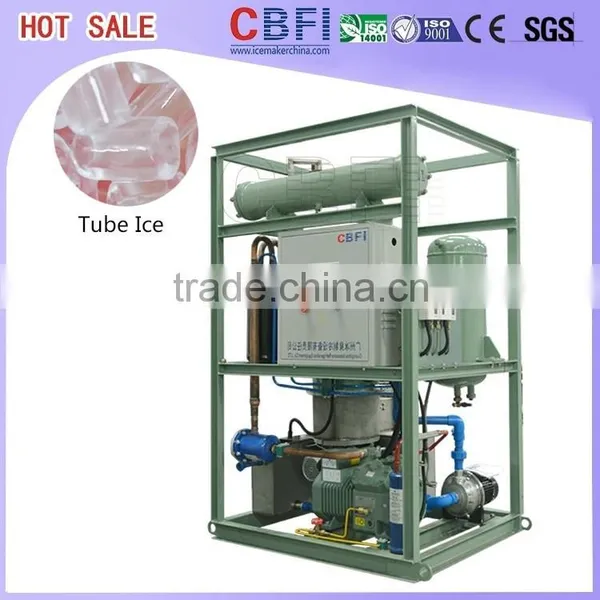

Commercial used Tube Ice machine
1.Daily Capacity : 1 ~ 30 ton
2.Ice making cycle : 16 ~ 30 mins
3.Ice Diameter : 22mm,28mm,35mm.

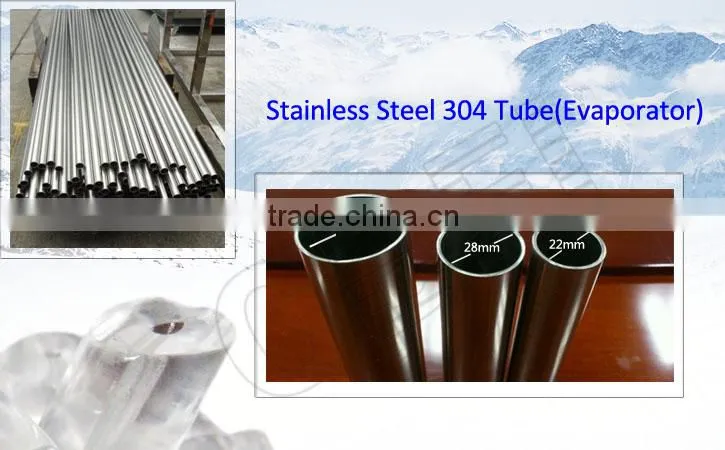

Health: All CBFI Tube Ice Machine Evaporator are food grade stainless steel 304(SUS304) material, come from Japan. Same daily capacity may have different price according to the different ice diameter and gas.

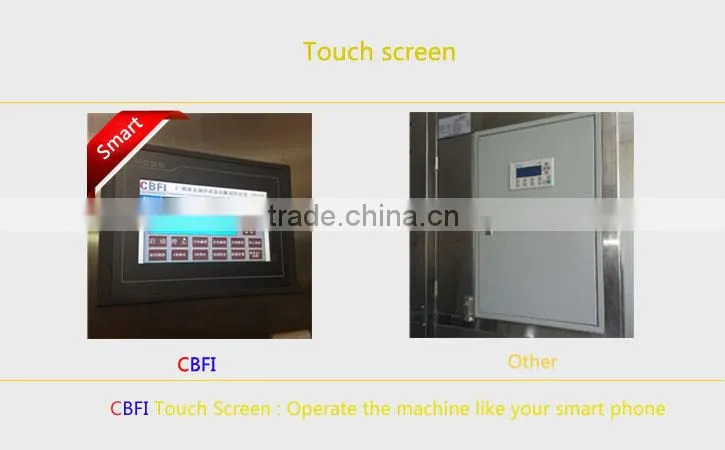

Easy to Operate : Germany Siemens CPUmonitor the machine making ice and drop ice automatically, machine working condition display on the touch screen clearly, operate the machine by touch screen like your smart phone.

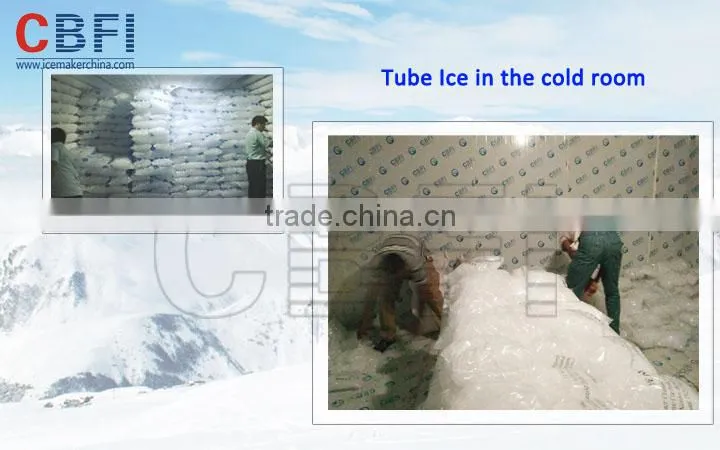

Turn key project : CBFI supply every necesary for completed tube ice plant to our customer, like ice storage bin for ice packing, ice packing machine and ice storage room. Customer just need to prepare the power and water supply when you got the machine.
CBFI 10 Tons Tube Ice Machine In Djibouti - CBFI
/projects/cbfi-10-tons-tube-ice-machine-in-djibouti.html
Tube Ice Maker Machine Models for Reference
Item No. |
Production |
Compressor Rated Power |
Circulating Water Pump Power |
Cooling Water Pump Power |
Cooling Fan Power |
Ice Cutter Motor Power |
Machine Dimension |
Weight of Machine |
|
Ton/24H |
KW |
KW |
KW |
KW |
KW |
L*W*H |
KG |
TV10 |
1.0 |
3.69 |
0.37 |
1.1 |
0.18 |
0.75 |
1320*950*1800 |
900 |
TV20 |
2.0 |
7.11 |
0.55 |
1.1 |
0.18 |
0.75 |
1400*1100*1800 |
1200 |
TV30 |
3.0 |
9.68 |
0.55 |
1.1 |
0.37 |
0.75 |
1500*1100*1950 |
1500 |
TV50 |
5.0 |
17.47 |
0.55 |
1.5 |
0.75 |
0.75 |
1600*1250*2200 |
1800 |
TV100 |
10.0 |
30.89 |
0.75 |
2.2 |
1.5 |
1.5 |
1700*1300*2200 |
3500 |
TV150 |
15.0 |
42.6 |
1.5 |
2.2 |
2.2 |
1.5 |
3000*1500*2200 |
4250 |
TV200 |
20.0 |
53.2 |
1.5 |
2.2 |
2.2 |
1.5 |
3500*1500*2200 |
6500 |
| Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature. |
Packaging & Shipping

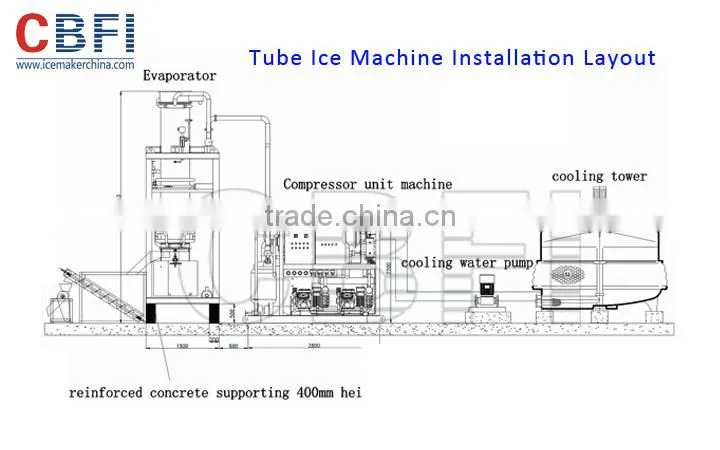

Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge

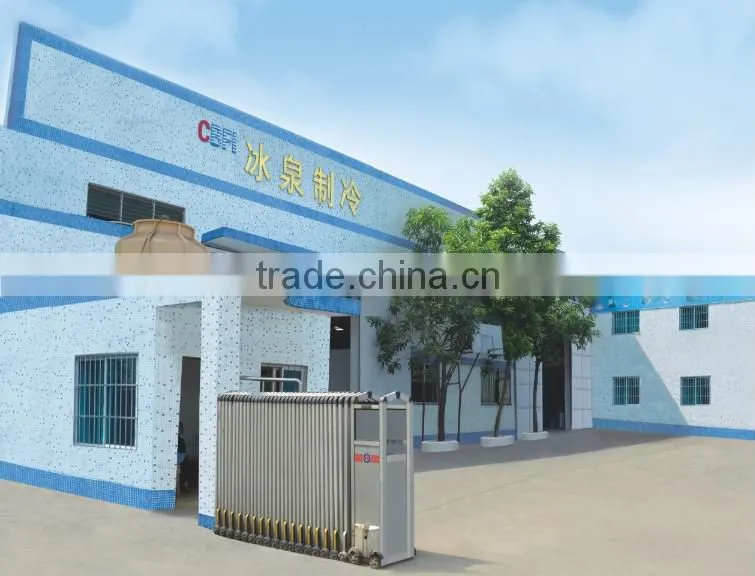

CBFI Guangzhou Icesource Refrigeration Equipment Co., LTD is located in Guangzhou city, China. It is near the Baiyun International Airport and it is closed two famous port of south China, Huangpu Port and Nansha Port. It is convenient for load and transport goods and for customers to come to visit our factory.
We started in researching, developing and selling all kinds of ice machines since 2004.
Our main products are: cube ice machine, tube ice machine, block ice machine, plate ice machin, flake ice machine and cold room.
Our company has passed the Britain BV certification on the spot, ISO9001 certification and ISO14001 certification.
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
