Iran 20 Tons Client Cases Tube Ice Maker Machine Ice Plant Operate

Iran 20 Tons Client Cases Tube Ice Maker Machine Ice Plant Operate photo-1
Iran 20 Tons Client Cases Tube Ice Maker Machine Ice Plant Operate photo-2
Iran 20 Tons Client Cases Tube Ice Maker Machine Ice Plant Operate photo-3
Iran 20 Tons Client Cases Tube Ice Maker Machine Ice Plant Operate photo-4
Iran 20 Tons Client Cases Tube Ice Maker Machine Ice Plant Operate photo-5
Iran 20 Tons Client Cases Tube Ice Maker Machine Ice Plant Operate photo-6
US$ 1 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
5000kg
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Capacity 5000kg
Place of Origin Guangdong, China
Brand Name CBFI
Model Number TV50
Ice Shape Other, TUBE ICE
Voltage 380V-50HZ-3P , it can design according customer power
Power(W) total power 21.95 KW
Dimension(L*W*H) 1600mm*1400mm*2250mm
Weight 1800KG
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas


Iran 20 tons client cases Tube Ice Maker Machine ice plant operate



5 Tons Ice Tube Machine

Iran 20 tons client cases Tube Ice Maker Machine ice plant operate



Tube Ice Machine Description



1.Tube ice machine daily capacity from 1 ton to 20 tons.

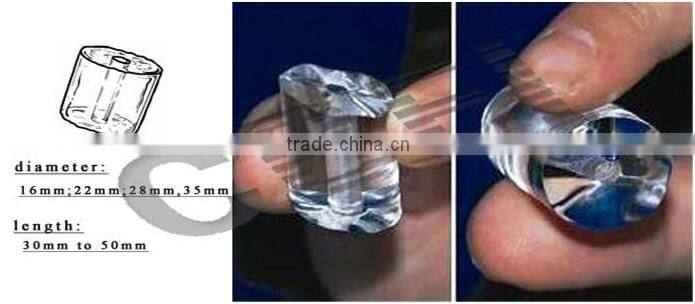

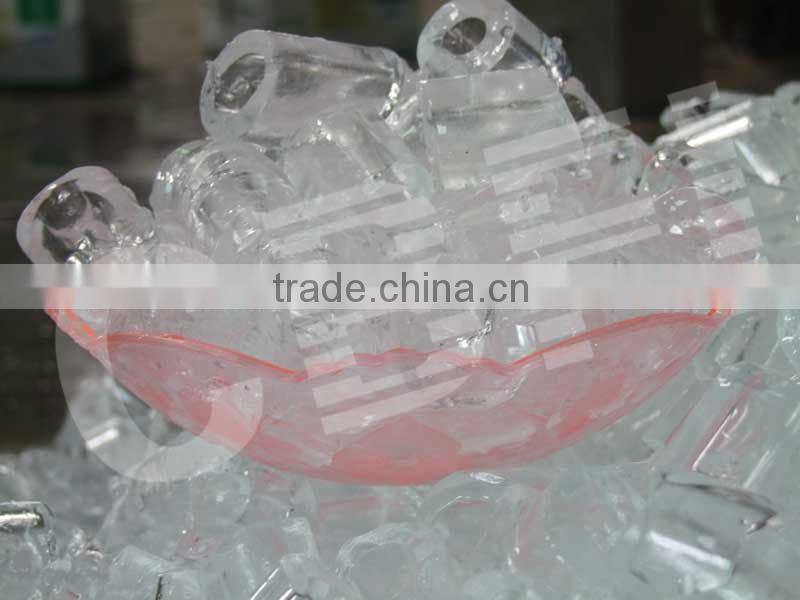

2.Tube ice is a kind of hollow cylindrical ice with external diameter 16mm ,22mm, 28mm, 35mm and length 25~42mm . The hole diameter is usually 5~10 mm and it can be adjusted according to ice making time.

Iran 20 tons client cases Tube Ice Maker Machine ice plant operate

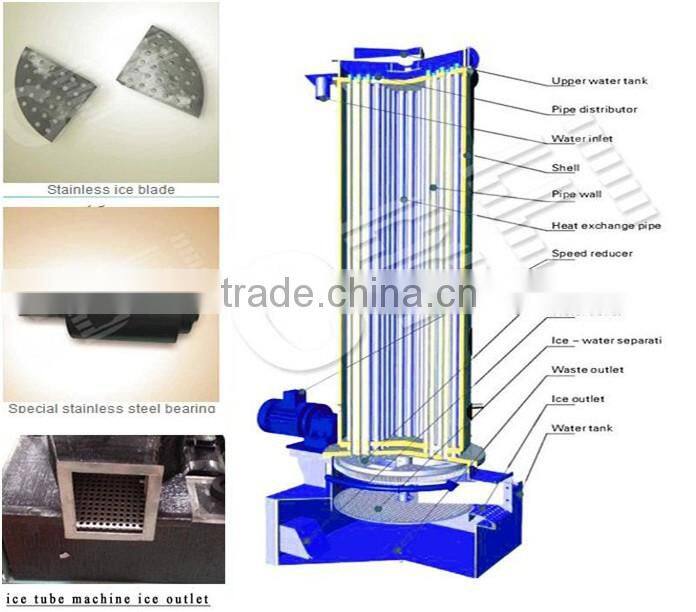

3.Perfect design: adopt 3D simulation assembly, compact structure, easy operate and maintain.

Iran 20 tons client cases Tube Ice Maker Machine ice plant operate



4.Health: ice maker adopt SUS 304, PE, and aluminum material to process, and adopt big rounded excessive design, everywhere of the machine is easy to clean.

Iran 20 tons client cases Tube Ice Maker Machine ice plant operate

Iran 20 tons client cases Tube Ice Maker Machine ice plant operate



5.Fully automatically: PLC system controls the whole ice making process.



Iran 20 tons client cases Tube Ice Maker Machine ice plant operate

6.Application: it can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh ect.

Iran 20 tons client cases Tube Ice Maker Machine ice plant operate

Iran 20 tons client cases Tube Ice Maker Machine ice plant operate



Main model for commercial tube ice machine:

Item No.

Production

Compressor Rated Power

Circulating Water Pump Power

Cooling Water Pump Power

Cooling Fan Power

Ice Cutter Motor Power



Machine

Dimension



Weight of Machine



Ton/24H

KW

KW

KW

KW

KW

L*W*H

KG

TV10

1.0

3.69

0.37

1.1

0.18

0.75

1320*950*1800

900

TV20

2.0

7.11

0.55

1.1

0.18

0.75

1400*1100*1800

1200

TV30

3.0

9.68

0.55

1.1

0.37

0.75

1500*1100*1950

1500

TV50

5.0

17.47

0.55

1.5

0.75

0.75

1600*1250*2200

1800

TV100

10.0

30.89

0.75

2.2

1.5

1.5

1700*1300*2200

3500

TV150

15.0

42.6

1.5

2.2

2.2

1.5

3000*1500*2200

4250

TV200

20.0

53.2

1.5

2.2

2.2

1.5

3500*1500*2200

6500





Machine Running Condition :

Supply Water Temperature : 23 Centi degree

Evaporator Tempeature : -15 Centi degree

Condensing Temperature : 40 Centi degree

Standard Supply Power : 380 V - 50 Hz - 3 P . We still can make ice machin with special power .



Iran 20 tons client cases Tube Ice Maker Machine ice plant operate



Iran 20 tons client cases Tube Ice Maker Machine ice plant operate



Iran 20 tons client cases Tube Ice Maker Machine ice plant operate



Iran 20 tons client cases Tube Ice Maker Machine ice plant operate
