Product Details
Condition: | New | Product Type: | Paper Cup Machine | Place of Origin: | Zhejiang, China |
Brand Name: | Mingrui | Model Number: | MB-S12 | Voltage: | 380V/220V |
Power(W): | 13KW | Dimension(L*W*H): | 2500*1300*1900mm | Weight: | 3000kg |
Certification: | CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
MB-C12 Medium Speed Paper Cup Machine
Technical data:
Paper Cup Size RANGE: 2 ~~12OZ
Speed: 70-80pc/min
Paper cup top diameter: Min 45mm ~~Max 104mm
Paper cup bottom diameter: Min 35mm~~Max 75mm
Paper cup height: Min 35mm~~Max 115mm
Raw material: 180~~350gsm, single or double PE coating paper
General power: 11 Kw
Electricity: 380V 3 phases
Air consumption: 0.2 cbm/min Wooden case packing: 2.6*1.3*1.9m
Weight: 3000 kg (about)
Specification:
- 1. Paper cup bottom sealing by Leister hot air system, import from Switzerland.
- 2. It is easy to make cups of different size by changing moulds.
- 3. Cup side sealing by ultrasonic.
- 4. Double PE coating paper cups for cold drink as well as hot drink.
- 5. With our unique original designed bottom knurling system, single shaft, korea type, this ensures the low leaking ratio and high quality of paper cups.
- 6. Paper sucking system adopt the vacuum pump, big power and stable running.
- 7. With unique single shaft design, the drive system is conducted by the stable gear system,it would be more stable when machine running at a high speed.
- 8. With automatic lubricating system, it will automatic lubricating to every moving parts when machine runs.
- 9. Every cam will be harden to ensure it can run for a long long time.
- 10. Machine is designed with double turning plate
- 11. Equipped with automatic cup collecting stacking and counting system.
- 12. Bottom paper we have a special prefeeding system, so the bottom paper feeding is “0” waste.
- 13. Video link: /watch?v=Ug1aSnlw5NU

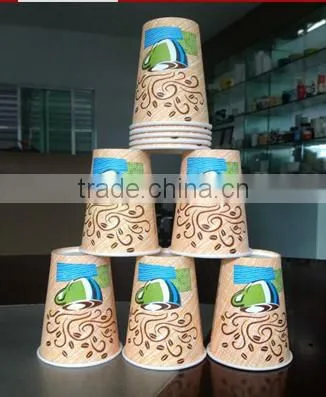

sample
Company Information
Pingyang county Ming rui machinery co., LTD focus on manufacturing the die cutting machine, three-dimensional pasting box machines, a new generation of burger box machine) series of mechanical equipment.Have from single to complete sets of equipment design, production, installation, debugging, integrating science, industry and trade in one of professional machinery manufacturing enterprises.Brings together professionals, combined with market demand, continuous innovation in the machine and the development of new technology.To provide users with competitive production technology and equipment, for the user to create a satisfactory results.
"The good faith for the root, quality for this, research innovation, contributing to society" is our eternal faith and pursuit.We will be quality products, perfect service continuously create a new situation in the field of mechanical, do benefit and the social value of synchronous growth.
In new areas of the market, we would like to work with the industry work hand in hand to create a better future!Welcome new and old customers to negotiate business. And the
paper cup machine, paper bowl machine, paper plate machine die cutting machine and also the cup lid machine as well as the burger box machine. its high quality machinery leads customer to create more profit and trouble free.
Best service for you!
Good machine quality!
The machine warranty for one year!
Our factory in Wenzhou Pingyang chouty,China, specialized in manufacturing automatic web die cutting machine,
creasing die cutting machine, paper fan punching die-cutter and stereo paper box forming machine.
Wha't the product time?
Normal about 30days of order 1-5 sets machine.
What's the payment?
TT.30% payment in advance, pay the balance before shipment.
Some country can accept L/C.
What about the shipment?
We can send the machine to the customer designated locations in China.
After receiving machine, if machine have questions.
We can send engineer to you your country. Customer should pay for engineer and the freight.
