China Manufactory Single Phase Two Wire Electric Energy Meter, YEM313 Energy Meter/
US$ 7.88 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
YEM313
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO for ELECTROIC METER
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Accuracy Single Phase Energy Meter Test Bench, Energy Meter Test Bench/US$ 100 - 15,000MOQ: 1 Piece -
Single Phase KWH Meter Calibration Test Bench,China Factory Test Bench/US$ 1,000 - 150,000MOQ: 2 Pieces
-
CE ROHS Approved 300W Pure Sine Wave Power InverterUS$ 60.46 - 62.84MOQ: 1 Piece
-
12V 24V 48V dc to ac 110V 220V off Grid 2000W/2KW Modified Sine Wave Solar Home Power InverterUS$ 93.07 - 103.57MOQ: 1 Piece
-
12V /24V/ 48V dc to ac 110V /220V off Grid 1500W/1.5KW, Modified Sine Wave Solar Home Power InverterUS$ 60.46 - 62.84MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
YOMIN
Model Number
YEM313
Display Type
Digital Only
Phase
Single Phase
Measuring Energy Range
5(30)A,10(60)A,20(100)A
Accuracy Class
CLASS 1.0
Output Voltage
127V,230V
Operating Temperature
-20℃~+70℃
Dimensions
109*200*59

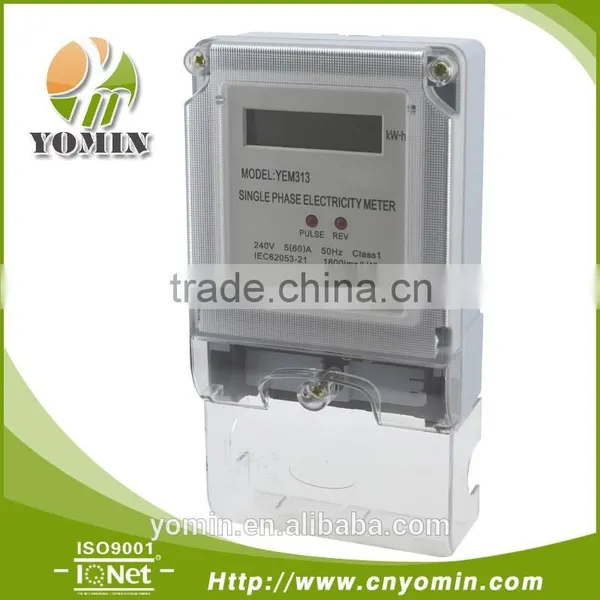

China Manufactory Single Phase Two Wire Electric Energy Meter, YEM313 Energy Meter
Product Description
Model YEM313 single phase electronic front board installed active energy meter is a kind
of new style single phase two wire active energy meter, it adopts micro-electronics
technique, and imported large scale integrate circuit, use advanced technique of digital
and SMT techniques, etc. The meter completely accords with relevant technical
requirements of class 1 single phase active energy meter stipulated in international
standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy
consumption from single phase AC electricity net, it is used for setting indoor or setting out
door directly, and it can display total energy consumption by step motor type impulse
register. It has following features: good reliability, small volume, light weight, specious nice
appearance, convenient installation, etc.
Features
- Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom and the terminal of the meter are made of black glass fiber which can fire-retardant and enhanced PC material, and the IP rating up to IP56. It has following features: good weatherability, anti-impact, good insulation performance, specious appearance, etc.
- Standard configuration the bottom and the terminal of the meter are closed by the screw of the meter, may select the bottom and the terminal of the meter are closed by ultrasonic. (Please specified when ordering).
- Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulse register. May select 6+1 digits display (Product Configuration code is AK).
- Standard configuration one port of pulse output passive(polarity),May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.
- Standard configuration only one LED instructions signal of energy impulse (red), may select add instructions power supply state (green) and automatic detection the direction of the flow of load current and instructions by LED (when display yellow, that is meaning the direction of the flow of load current reverse). Please specified when ordering.
- Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
- Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is TG).
- Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is AH).
Technical parameters
| Model | YEM313 |
| Accuracy | 2.0 |
| Reference voltage(V) | 127V,230V |
| Current specifications(A) | 5(30)A,10(60)A,20(100)A |
| Starting current(A) | 0.025A,0.05A,0.1A |
| Insulation performance |
AC voltage 4KV for 1 mimute, 1.2/50us waveform impulse voltage 6KV |
