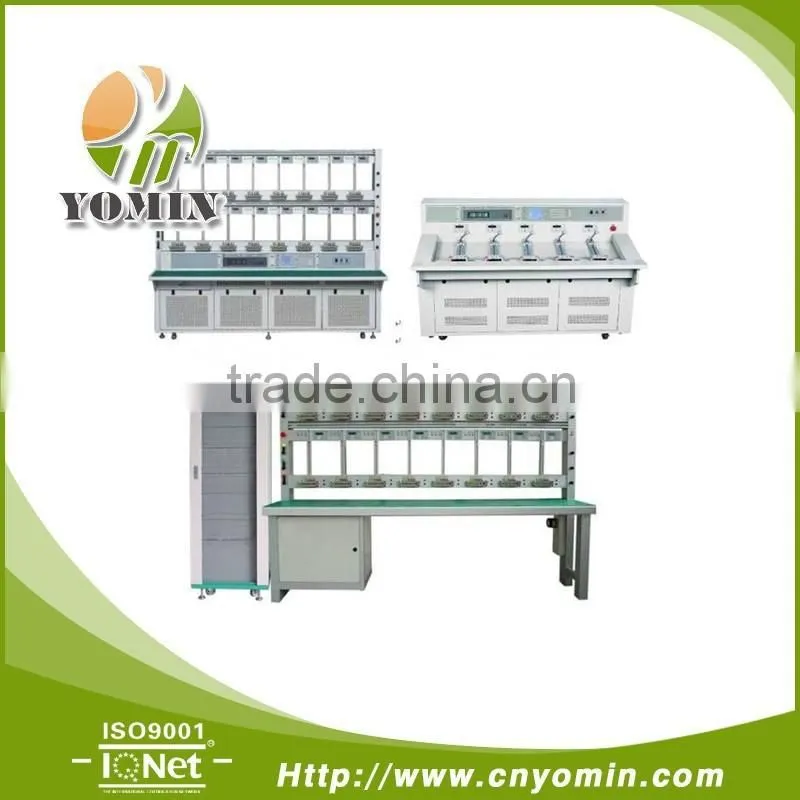

High Accuracy Single phase energy meter test bench

Single phase KWH meter calibration test bench,China factory test bench/





Product Description

1) Equipped with electronic phantom load power source, assuring high stability, security and large output capacity.



2)Automatic adjustment of current measurement range. Fault self-detection in voltage amplifier and current amplifier.



3) Equipped with RS-232C interface, can be operated from software.



4) Test results can be saved to database, can be inquired from database and can be printed out.

Structure



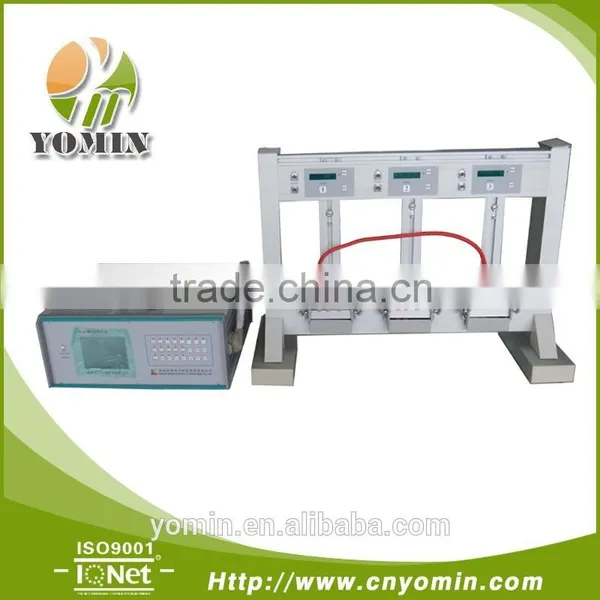

Single phase KWH meter calibration test bench,China factory test bench/

Single phase KWH meter calibration test bench,China factory test bench/

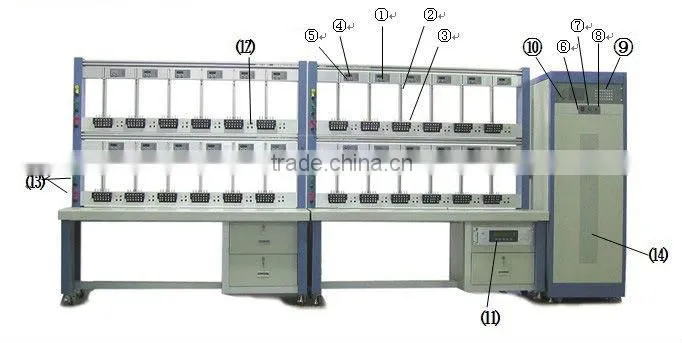

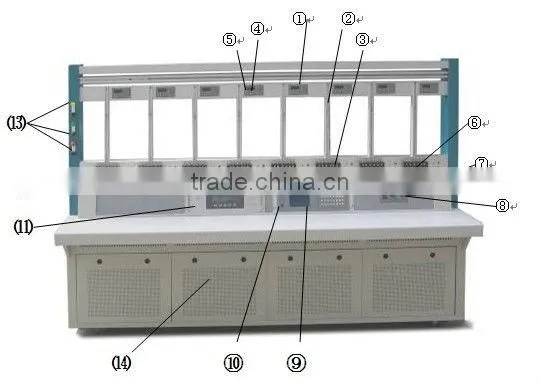

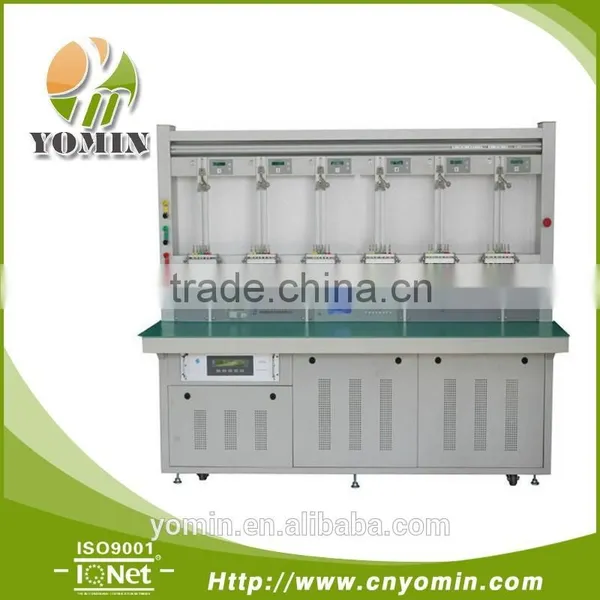

1.Error caculator



2.Screw for tested meter



3.Bracket for tested meter



4. RS485 communication port



5. pulse input



6. power switch



7. Power on for amplifier



8. Power off for amplifier



9. Keyboard / output display and signal generator



10. on line/off line switch



11. three phase reference meter



12. voltage terminal for tested meter



14.phantom load power source



(voltage source amplifier and current source amplifier)



(voltage range shifter and current range shifter)



Technical Parameters

Specification of phantom load power source:



Power and consumption:



Power supply: 3P4W 3x220V ±10%)



Max consumption: 3000VA ( 12 meter positions )



Current source:



Output current: 3×0.001A-3×120A



Adjusting resolution: 0.01% (min. 0.0001A)



Output frequency: 45Hz~65Hz;



THD(sine wave output): <0.8%



Stability of current during sine wave output:

0.05% (180s)



Output wave: sine wave



2-21 harmonic wave, total should be less than 40%



Odd harmonic waveform



Sub harmonic waveform



Output capacity: 20VA per meter position



Voltage source:



Output voltage: 3×30V - 3×480V



Load: The Load could be resistor / inductive / capacitive(<4uF)



Adjusting resolution: 0.01% (min. 0.1V)



Output frequency: 45Hz~65Hz;



THD (sine wave output): <0.8%



Voltage stability of power source during sine wave output:



0.05% (180s)



Output wave: sine wave



2-21 harmonic wave, total should be less than 40%



Output capacity: 15VA per meter position



Reference Meter:



Power and consumption:



Power supply: 1P2W 220V/240V ±10%, 50Hz or 60Hz;



Max consumption: 30VA



Voltage input: 3×30V-3×300V (AC)



Current input: 3×0.001A-3×100A (AC)



Accuracy:



Active power: 0.05% (PF>0.5)



Reactive power: 0.1% (PF>0.5)



Warm up time: < 2 minutes



Dimension: 482mm X 380mm X 140mm



Weight: <7.5Kg



Error Calculator Technical specification



Impulse of tested meter could be: TTL / OC / Optical head



Max. frequency of impulse could be: 200Hz



Error display range: 0.001%-99.99%

Goods List

1) Three phase power source 1



2) Three phase meter rack (12/16 positions each rack)



3) Reference meter 1



4) Pulse input cable 1 for each position



5) Rs232c communication cable 1



6) Voltage supply cable 1 set for each position

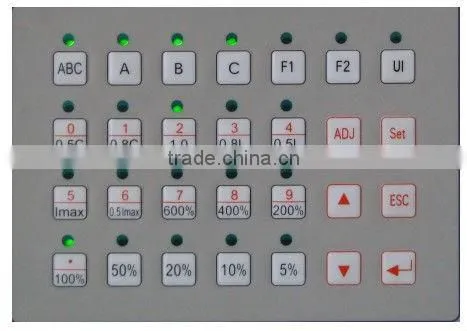

Keyboard Definition



Single phase KWH meter calibration test bench,China factory test bench/

F1: Starting UP test

 F2: No load test

 5% ~ 600% ,Imax,0.5Imax: Load select

 Start: Output U&I

 0 ~9: Number

 0.5L, 0.8L, 1.0, 0.8C, 0.5C: Power Factor

 : Decimal

 ABC,A,B, C : Phase Select

 ↑↓: up/down or Increase/decrease current/voltage

: Enter key

 Set: tested meter’s parameter
