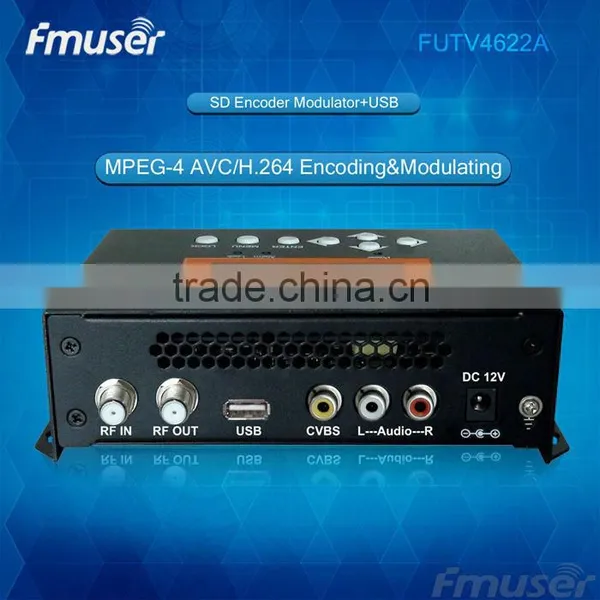

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use

Name: FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use
Brand: FMUSER
SKU: 114083225

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use thumbnail-1

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use thumbnail-2

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use thumbnail-3

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use thumbnail-4

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use thumbnail-5

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use thumbnail-6

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use photo-1

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use photo-2

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use photo-3

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use photo-4

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use photo-5

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA In; RF Out) With USB Upgrade for Home Use photo-6

US$ 480 - 599 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

FMUSER

Model Number:

FUTV4622A

Contact Supplier Request Quote Chat Now

Guangzhou Fmuser Information Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name FMUSER

Model Number FUTV4622A

Please contact the following staff for instant help with product user manual, datasheet and updated wholesale price.

Email: hch(at)

Skype: erin-huang2

Wechat: +86 15800205544

Whatsapp: +86 15800205544

Tel:+86 15800205544 (Monday~Friday: 9:00 ~ 18:00 (+8 China ) )

Working Time

09:00--18:00 Beijing
17:00--2:00 San Francisco

19:00--4:00 New York

21:00--6:00 Paris

04:00--13:00 Moscow

12:00--21:00 Sydney

02:00--11:00am Congo ( Africa )

Quality Control

OEM Order Welcomed

Production Intruduction

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA in; RF out) with USB Upgrade for Home Use

R: V20150523-16-40

Input:Tuner, CVBS Output:DVB-T Inner Function:USB

Overview

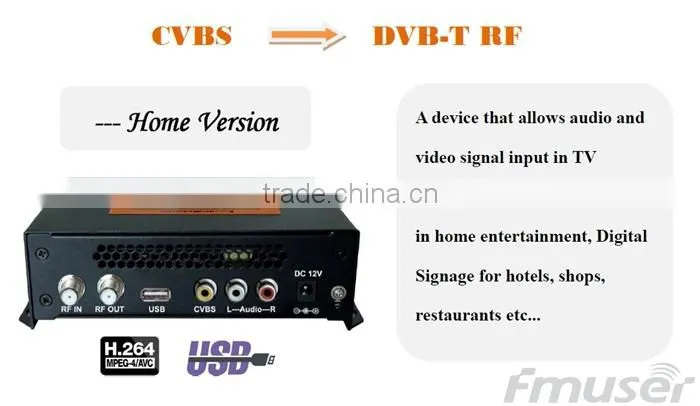

FMUSER FUTV4622A SD encoder & modulator is designed based on consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.

It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert analog audio/video signals into DVB-T RF out.

The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by a DVB-T standard TVs or STBs etc.

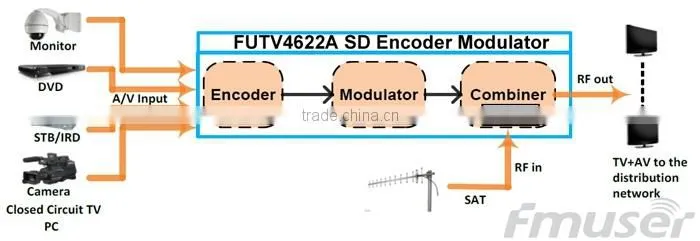

Principle Chart

Technical Specifications

Encoding Section
Video	Encoding	H.264 MP_L 3.0
	Interface	CVBS*1 (RCA)
	Resolution	Input	Output
		480_60i	480_30p
		576_50i	576_25p
	Aspect Ratio	4:3
	Bit rate	1.000~18.000 Mbps
Audio	Encoding	MPEGI layer 2
	Interface	Analog Stereo/Mono (Unbalanced RCA)
	Sample rate	48KHz
	Bit rate	64, 96,128, 192, 256, 320kbps

DVB-T Modulator Section
Standard	DVB-T COFDM
Bandwidth	6M, 7M, 8M
Constellation	QPSK, 16QAM, 64QAM
Code rate	1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval	1/32, 1/16, 1/8, 1/4
Transmission Mode:	2K, 8K
MER	>=31dB
RF frequency	142.5~858 MHz, 1KHz step
RF output level	-14~ +6dBm, 0.1db step
System
RF mix in ATT		10 dB
Management		Local LCD + control buttons
Language		English
LCN Insertion		yes
Upgrade		USB
General
Power supply		DC 12V
Dimensions		18311050mm
Weight		< 1kg

Typical Application

Technical Comparison between NDS3522A and NDS3556 (SD, DVB-T Version)

Items	FUTV4622A	FUTV4656 (SD, DVB-T )
Video Encoding	H.264 MP_L 3.0	MPEG-2 MP_ML
Resolutions	Input and output scanning format and frame rate change	Input and output scanning format and frame rate keep the same
Audio bit rate	Up to 320kbps	Up to 384kbps
MER	>=31dB	>=42dB
RF Frequency	142.5~858 MHz	30~960MHz
Output Level	-14~ +6dBm	-16~ -36dBm
Transmission Mode:	2K, 8K	2K, 8K (8K is optional as per ordered)
USB (External USB Disk)	System upgrade	System upgrade, TS record and playback

Technical Comparison

Solutions

Kindly contact me to send you more solutions for DVB-C, DVB-S, DVB-T, Cable QAM System for Hotel ,Microwave , Radio reporter system...etc

Applications

About US

1.FAQ:Where is your company located? How can I visit your company?

A:Our factory is located in Tian He District, Guang Zhou City, China, it's about 25 mins away from Canton Fair Center and 15 mins from Guang Zhou Eastern Station, all our clients, from home or abroad, are warmly welcome to take a visit here!

You can search this numbers " 23.127,113.332 " in google map , then you can find our fmuser office .

2.FAQ:How does your company do regarding quality control?

A:Quality is very important and always the priority of our inspection system. FMUSER team members always pay great attention to quality control from the very beginning to the end.

All machine will be Aging work 40days before shipment.

3.FAQ:Can I get some samples?
A: Yes, sure, we are honored to offer you samples, sample fee can be discussed.

4.FAQ:What is your mode of transportation?
A: We ship via International Express like FedEx, UPS, DHL, TNT, other ways designated by customers are also optional.

5.FAQ:Could you pls make OEM for us?
A: Surely yes.We provide the service of replacing your logo and company name on box, product and software interface
of the device .

6.FAQ:What's your payment method supported?
A: We accept T/T, Paypal, Western Union, MoneyGram etc.

7.FAQ:What about your warranty?

A: We provide 1 year quality warranty for our main devices, accessories are not within this range, but our accessories are endurable enough to use for long time.

FMUSER International Group Inc is a comapny dedicated to FM and TV broadcasting equipments and relevant accessories. All of our products are fully inpsected before shipping, and sold to many countries all over the world. We will make effort to become a super supplier in the global FM and TV filed.
