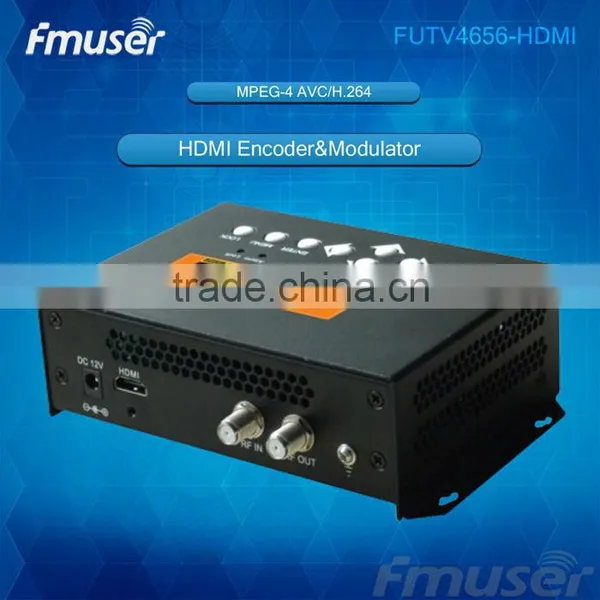

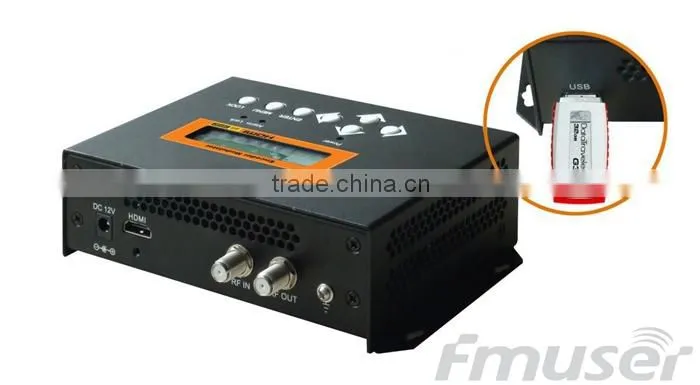

FUTV4656H DVB-T/DVB-C(QAM)/ATSC MPEG-4 AVC/H.264 HD Encoder Modulator (Tuner,HDMI in; RF out) with USB Record/Save/Playback/Upgrade for Home Use
R: V20150527-16-48
Overview

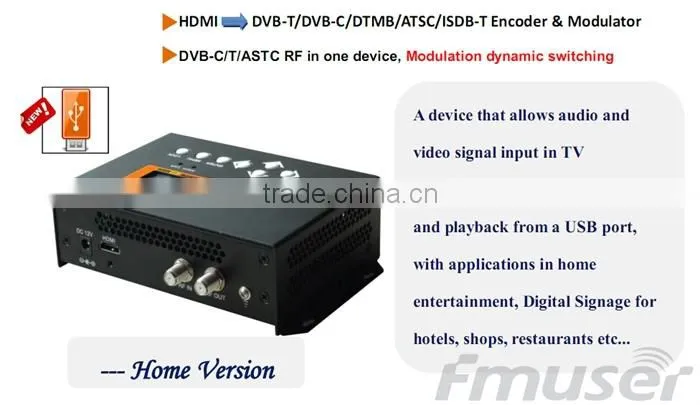

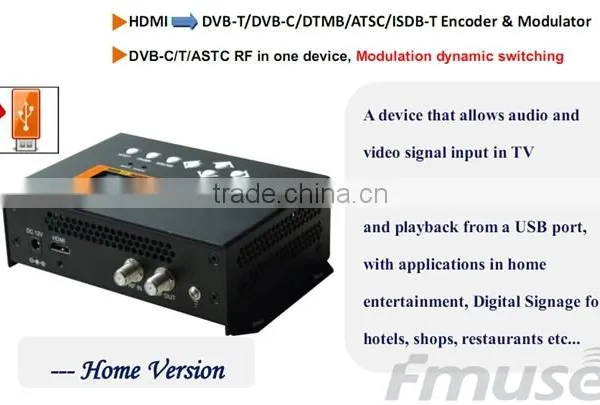

FUTV4656H series encoder & modulator is FMUSER’s consumer electronics which allow audio/video signal input in TV distributions and video recorded and playback from a USB port with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T/DVB-C/ATSC RF out.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by a DVB-T/DVB-C/ATSC standard TVs or STBs etc.
Principle Chart
Technical Specifications
Encoding Section | |||||
HDMI | |||||
Video |
Encoding |
MPEG-4 AVC/H.264 |
|||
Interface |
HDMI*1 |
||||
Resolution |
1920*1080_60P,1920*1080_50P; 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
||||
Bit rate |
0.500~19.500 Mbps |
||||
Audio |
Encoding |
MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC available ) |
|||
Sample rate |
48KHz |
||||
Bit rate |
64, 96,128, 192, 256, 320, 384kbps |
||||
Modulator Section | |||||
DVB-T |
|||||
Standard |
DVB-T COFDM |
||||
Bandwidth |
6M, 7M, 8M |
||||
Constellation |
QPSK, 16QAM, 64QAM, |
||||
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8. |
||||
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||||
Transmission Mode: |
2K, 8K |
||||
MER |
>=42dB |
||||
RF frequency |
30~960MHz, 1KHz step |
||||
RF output level |
-16~ -36 dBm (71~91 dbuV), 0.1db step |
||||
DTMB |
|||||
Standard |
GB20600-2006 |
||||
FFT |
1,3780, 1+pilot |
||||
MER |
>=42dB |
||||
FEC |
0.4, 0.6, 0.8 |
||||
Frame Mode |
420, 595, 945, 420var, 945var |
||||
Interleaving |
240, 720 |
||||
RF frequency |
30~960MHz, 1KHz step |
||||
RF output level |
-16~ -36 dBm (71~91 dbuV), 0.1db step |
||||
Constellation |
4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM |
||||
DVB-C |
|||||
Standard |
J.83A (DVB-C), J.83B, J.83C |
||||
MER |
>=43dB |
||||
RF frequency |
30~960MHz, 1KHz step |
||||
RF output level |
-16~ -36 dBm (71~91 dbuV), 0.1db step |
||||
Symbol rate |
5000-9000 Ksps |
||||
J.83A |
J.83B |
J.83C |
|||
Constellation |
16/32/64/128/256QAM |
64/ 256QAM |
64/ 256QAM |
||
Bandwidth |
8M |
6M |
6M |
||
ATSC |
|||||
Standard |
ATSC A/53 |
||||
MER |
>=42dB |
||||
RF frequency |
30~960MHz, 1KHz step |
||||
RF output level |
-16~ -36 dBm (71~91 dbuV), 0.1db step |
||||
Constellation |
8VSB |
||||
ISDB-T |
|||||
Standard |
ARIB STD-B31 |
||||
Bandwidth |
6M |
||||
Constellation |
DQPSK,QPSK, 16QAM, 64QAM |
||||
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||||
Transmission Mode |
2K, 4K, 8K |
||||
MER |
>=42dB |
||||
RF frequency |
30~960MHz, 1KHz step |
||||
RF output level |
-16~ -36 dBm (71~91 dbuV), 0.1db step |
||||
System | |||||
Management |

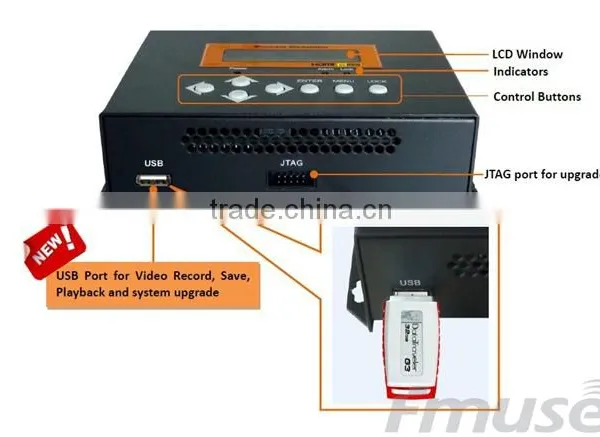

Local control: LCD + control buttons |
||||
Language |
English |
||||
LCN Insertion |
yes |
||||
Upgrade |
JTAG |
||||
General | |||||
Power supply |
DC 12V |
||||
Dimensions |
153*110*50mm |
||||
Weight |
< 1kg |
||||
Operation temperature |
0~45C |
||||
Technical Comparison
Main Features |
FMUSER FU4656/FU4657 |
Competing Products |
Record TS to USB memory |
Yes (FU4656) |
No |
ts files play-mode supported |
Both Multi/Single files loop Support HD&SD video play |
Single file loop Support only SD video play |
TS Creator.exe |
HD video to HD video transform Null Packet Filter, effect bit rate up to 90% Support output video size, rate, and format control |
HD video to SD video downscale No Null Packet Filter, effect bit rate only around 50% |
Single video length |
2-3 Hours HD/SD |
40 Minutes SD |
Kindly contact me to send you more solutions for DVB-C, DVB-S, DVB-T, Cable QAM System for Hotel ,Microwave , Radio reporter system...etc
1.FAQ:Where is your company located? How can I visit your company?
A:Our factory is located in Tian He District, Guang Zhou City, China, it's about 25 mins away from Canton Fair Center and 15 mins from Guang Zhou Eastern Station, all our clients, from home or abroad, are warmly welcome to take a visit here!
You can search this numbers " 23.127,113.332 " in google map , then you can find our fmuser office .
2.FAQ:How does your company do regarding quality control?
A:Quality is very important and always the priority of our inspection system. FMUSER team members always pay great attention to quality control from the very beginning to the end.
All machine will be Aging work 40days before shipment.
3.FAQ:Can I get some samples?
A: Yes, sure, we are honored to offer you samples, sample fee can be discussed.
4.FAQ:What is your mode of transportation?
A: We ship via International Express like FedEx, UPS, DHL, TNT, other ways designated by customers are also optional.
5.FAQ:Could you pls make OEM for us?
A: Surely yes.We provide the service of replacing your logo and company name on box, product and software interface
of the device .
6.FAQ:What's your payment method supported?
A: We accept T/T, Paypal, Western Union, MoneyGram etc.
7.FAQ:What about your warranty?
A: We provide 1 year quality warranty for our main devices, accessories are not within this range, but our accessories are endurable enough to use for long time.
