FUTV4658A HDMI MPEG 4 AVC/H.264 SD/HD Network Encoder (HDMI in, IP-UDP (multicast) through Internet,RTP/RTSP/HTTP/RTMP/HLS through LAN out) with USB Record and Web-server Management
R: V20150605-17-25
Input:HDMI
Overview
FUTV4658A network encoder is an encoding device for high-end IP broadcasting. It can transfer the live program through the internet/LAN and it can be received by Media Server as well as IP STB. It support HDMI SD/HD input and encodes in MPEG 4 AVC/H.264 format, after that, it give the IP signal output over UDP (multicast),RTP/RTSP,HTTP,RTMP (HLS underdevelopment). For direct broadcasting or transmission over a network or the internet, the output of FUTV4658A can work as Media Encoder and data can be easily encoded into web-based video.
* Support HDMI input
* Support H.264/AVC video encoding
* Support MPEG1 Layer 2, MPEG-2 AAC, MPEG-4 AAC audio encoding
* Enhanced USB function: more stable and compatible with Hard Disks and USB Keys of various brand
* Support IP Output over UDP(multicast), RTP/RTSP, HTTP, HLS
* Easy operation with LCD + control buttons, and Web-server management

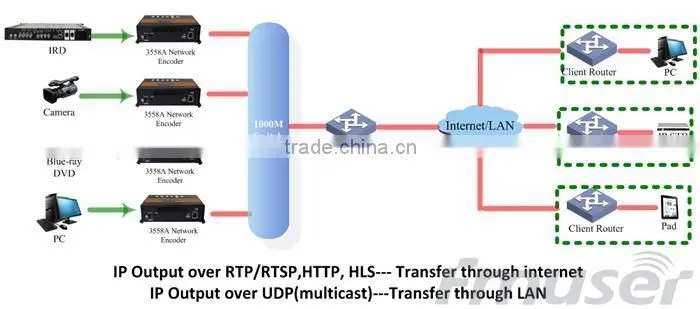

Principle Chart
Technical Specifications
Input |
HDMI input |
||
Video |
Resolution |
1920x1080_60p, 1920x1080_50p 1920x1080_60i, 1920x1080_50i 1280x720_60p, 1280x720_50p |
|
Encoding |
MPEG-4 AVC/H.264 |
||
Bit rate |
1Mbps~8Mbps |
||
Audio |
Encoding |
MPEG-1 Layer 2, MPEG-2 AAC, MPEG 4-AAC |
|
Sampling rate |
48KHz |
||
Bitrate |
MPEG-1 Layer 2 |
64, 96, 128, 192, 256, 320, 384kbps |
|
MPEG 2-AAC |
128, 192, 256, 320, 384kbps |
||
MPEG 4-AAC |
64, 96, 128, 256kbps |
||
Stream output |
IP out over UDP(multicast), RTP/RTSP, HTTP, HLS (RJ45, 1000M) |
||
System |
Local control |
LCD + control buttons |
|
Remote control |
Web NMS |
||
Language |
Chinese-English control interface |
||
Upgrade |
Web-server |
||
General |
Approx weight |
<=1Kg |
|
Operation temperature |
0~45C |
||
Power supply |
DC12V |
||
Dimensions |
183*110*45mm |
||
Kindly contact me to send you more solutions for DVB-C, DVB-S, DVB-T, Cable QAM System for Hotel ,Microwave , Radio reporter system...etc
1.FAQ:Where is your company located? How can I visit your company?
A:Our factory is located in Tian He District, Guang Zhou City, China, it's about 25 mins away from Canton Fair Center and 15 mins from Guang Zhou Eastern Station, all our clients, from home or abroad, are warmly welcome to take a visit here!
You can search this numbers " 23.127,113.332 " in google map , then you can find our fmuser office .
2.FAQ:How does your company do regarding quality control?
A:Quality is very important and always the priority of our inspection system. FMUSER team members always pay great attention to quality control from the very beginning to the end.
All machine will be Aging work 40days before shipment.
3.FAQ:Can I get some samples?
A: Yes, sure, we are honored to offer you samples, sample fee can be discussed.
4.FAQ:What is your mode of transportation?
A: We ship via International Express like FedEx, UPS, DHL, TNT, other ways designated by customers are also optional.
5.FAQ:Could you pls make OEM for us?
A: Surely yes.We provide the service of replacing your logo and company name on box, product and software interface
of the device .
6.FAQ:What's your payment method supported?
A: We accept T/T, Paypal, Western Union, MoneyGram etc.
7.FAQ:What about your warranty?
A: We provide 1 year quality warranty for our main devices, accessories are not within this range, but our accessories are endurable enough to use for long time.
FMUSER International Group Inc is a comapny dedicated to FM and TV broadcasting equipments and relevant accessories. All of our products are fully inpsected before shipping, and sold to many countries all over the world. We will make effort to become a super supplier in the global FM and TV filed.
