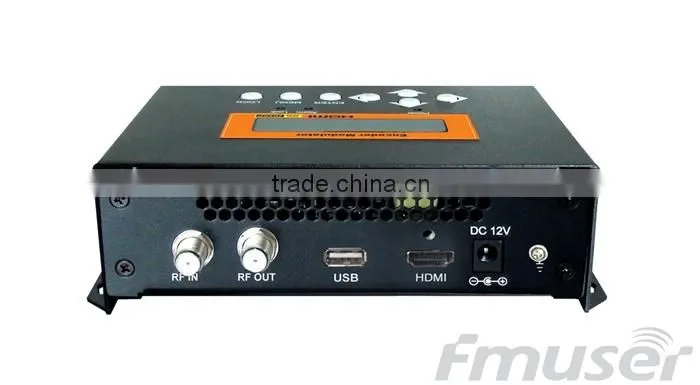

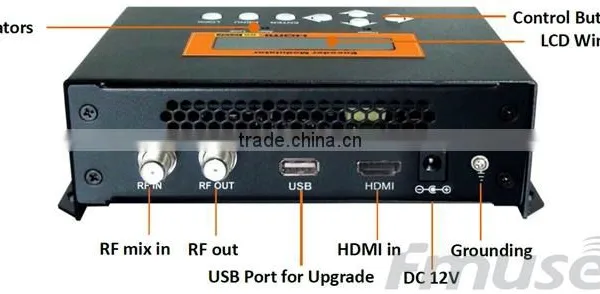

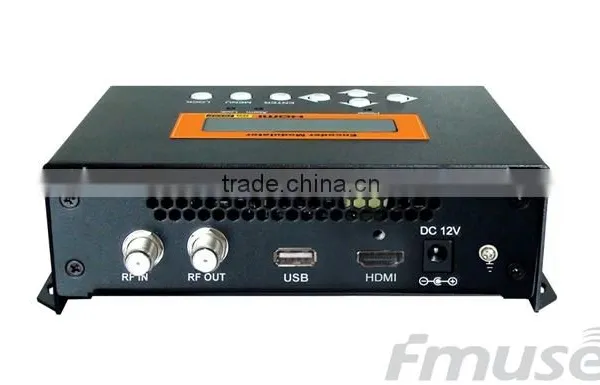

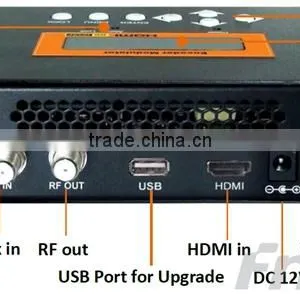

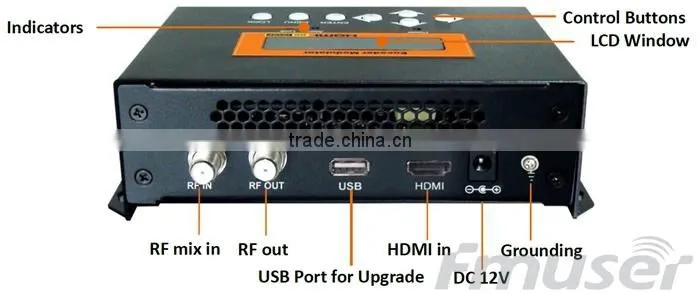

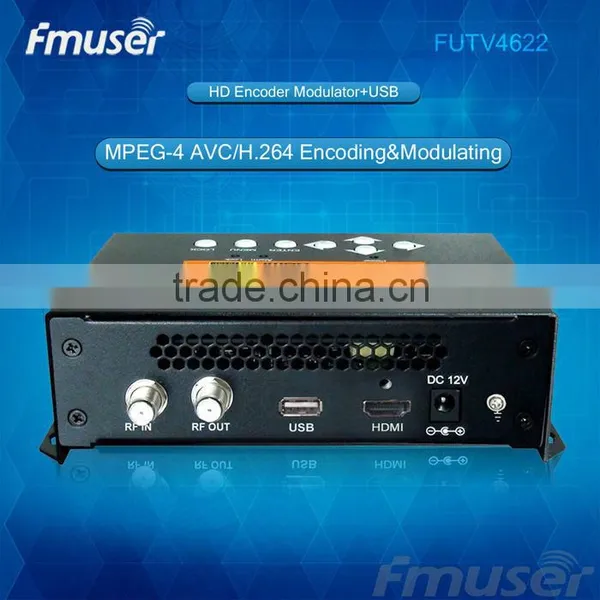

FUTV4622 DVB-T MPEG-4 AVC/H.264 HD Encoder Modulator (Tuner,HDMI in; RF out) with USB Upgrade for Home Use
R: V20150521-11-59

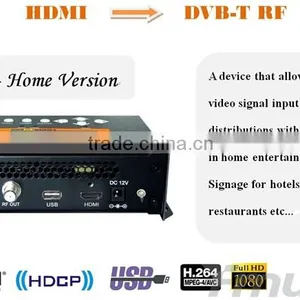

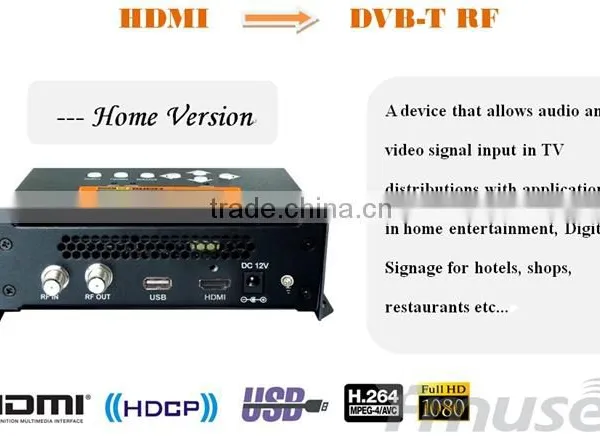

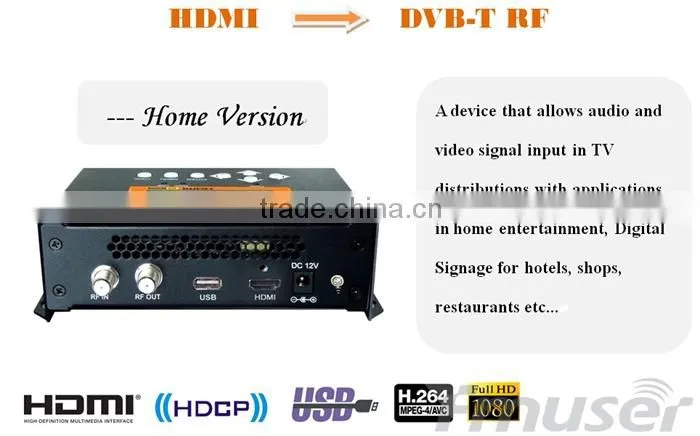

FUTV4622 series HD encoder & modulator is FMUSER’ s consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by a DVB-T standard TVs or STBs etc.

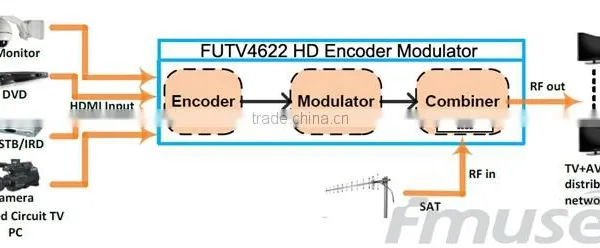

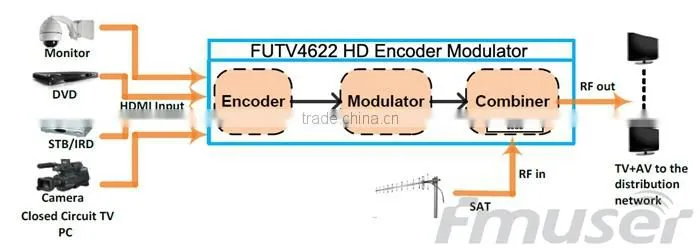

Principle Chart
Technical Specifications
HDMI Encoding Section | |||
Video |
Encoding |
H.264 MP_L 3.0/3.1/4.0 |
|
Interface |
HDMI*1 |
||
|
Input |
Output |
|
Resolution |
480_59.94/60i |
480_30p |
|
576_50i |
576_25p |
||
720_50/59.94/60p |
720_50/59.94/60p |
||
1080_50i |
1080_25p |
||
1080_59.94/60i |
1080_30p |
||
1080_59.94/60p |
1080_30p |
||
Aspect Ratio |
16:9, 4:3 |
||
Bit rate |
1.000~18.000 Mbps |
||
Audio |
Encoding |
MPEGI layer 2 |
|
Sample rate |
48KHz |
||
Bit rate |
64, 96,128, 192, 256, 320kbps |
||
DVB-T Modulator Section | ||
Standard |
DVB-T COFDM |
|
Bandwidth |
6M, 7M, 8M |
|
Constellation |
QPSK, 16QAM, 64QAM |
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|
Transmission Mode: |
2K, 8K |
|
MER |
>=31dB |
|
RF frequency |
142.5~858MHz, 1KHz step |
|
RF output level |
-14 ~ +6dBm, 0.1db step |
|
System | ||
RF mix in ATT |
10 dB | |
Management |
LCD + control buttons |
|
Language |
English |
|
LCN Insertion |
yes |
|
Upgrade |
USB |
|
General | ||
Power supply |
DC 12V |
|
Dimensions |
183*110*50mm |
|
Weight |
< 1kg |
|
Typical Applications
Technical Comparison between NDS3522 and NDS3556 (HD, DVB-T Version)
Items |
FUTV4622 |
FUTV4656 (HD, DVB-T ) |
Interface |
HDMI |
HDMI/YPbPr/CVBS/S-Video |
Video Encoding |
H.264 MP_L 3.0/3.1/4.0 Auto detect and configure |
H.264 BP/MP/HP_L 3.0/3.1/3.2/4.0/4.1/4.2 Profile and level can be manually set |
Resolutions |
Input and output scanning format and frame rate change |
Input and output scanning format and frame rate keep the same |
Audio Encoding |
MPEGI layer 2, MPEG-2 AAC |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
MER |
>=31dB |
>=42dB |
RF Frequency |
142.5~858 MHz |
30~960MHz |
Output Level |
-14~ +6dBm |
-16~ -36dBm |
USB (External USB Disk) |
System upgrade |
System upgrade, TS record and playback |
