127V 230V 5(30)A single phase din rail active energy meter with analog display

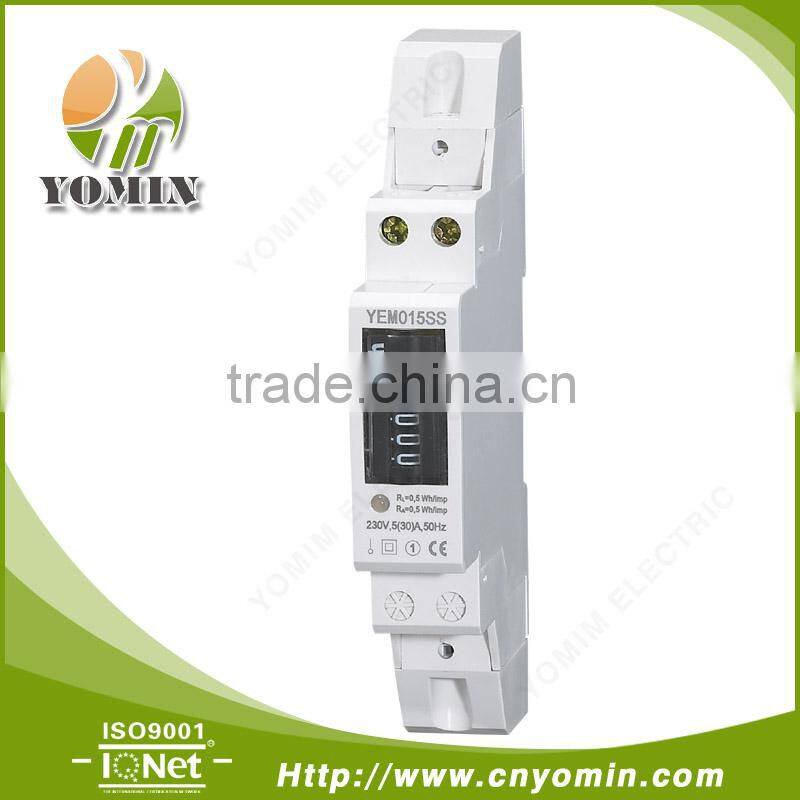

Model YEM015SS single phase electronic DIN rail active energy meter is a kind of new style single
phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale
integrate circuit, uses advanced technique of digital and SMT techniques, etc. It has its completely
independent intellectual property rights and minimum size. It has already passed the test of the
international authority KEMA. The meter completely accords with relevant technical requirements
of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It
can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC
electricity net, it can display total energy consumption by step motor type impulse register. It has
following features: good reliability, small volume, light weight, specious appearance, convenient
installation, etc.
1. 35mm standard DIN rail installation, complying with standard DIN EN50022.
2. Single pole width (Modulus 17.5mm), complying with standard DIN43880.
3. Standard configuration 6+1 digits display (999999.1kWh) by step motor type impulse register.
4. Standard configuration pulse output passive (polarity),May select distant pulse output passive
( nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard
IEC 62053-31 and DIN 43864.
5. Bicolor LED instructions power supply state (green) and signal of energy impulse (red).
6. Automatic detection the direction of the flow of load current. And instructions (Only red energy
impulse signal when working,If no green instructions power supply, that is meaning the direction
of the flow of load current reverse).
7. Single direction measurement single phase two wire active power consumption. It is nothing
with direction of the trend of load current. Complying with standard IEC 62053-21.
8. Directly connect and use, there are two types wiring you may select. Standard configuration
9. Extension terminals cover, in order to protect to use safety.
Model |
Accuracy |
Reference Voltage(V) |
Current specifications(A) |
Starting current(A) |
Insulation performance |
|
YEM015SS |
Class 1 |
127 230 |
5(30) |
0.02 |
AC voltage 4kv for 1 minute, 1.2/50us waveform impulse voltage 6kv |
|
|
Terminals |
Note |
|||
1 |
Inlet phase line |
||||
4 |
Inlet neutral line |
||||
3 |
Outgoing phase line |
||||
6 |
Outgoing neutral line(Inlet from top, outlet from bottom) |
||||
20 and21 |
Port of pulse output passive |
||||
