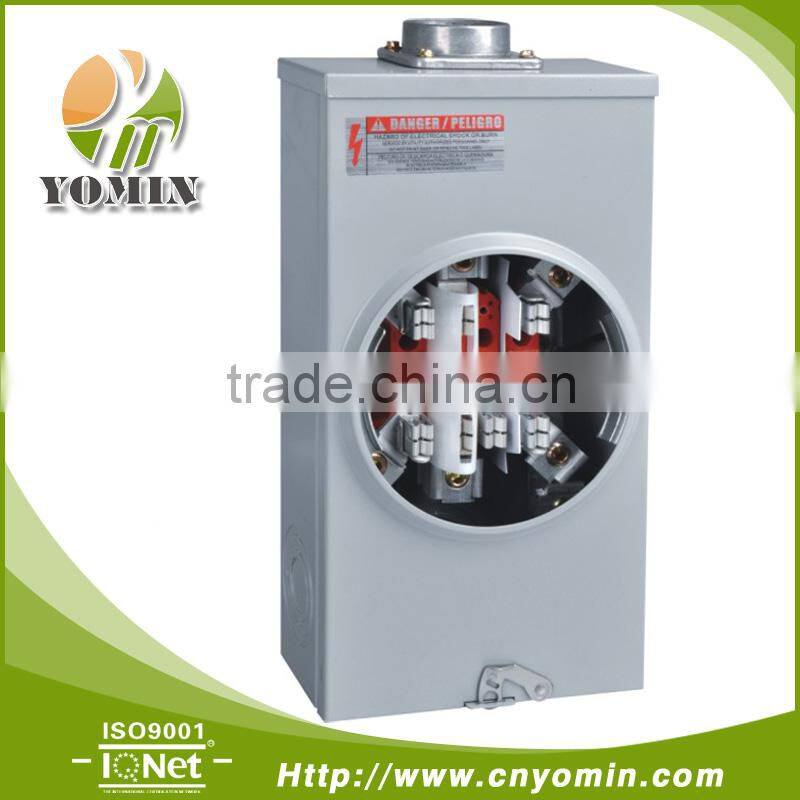

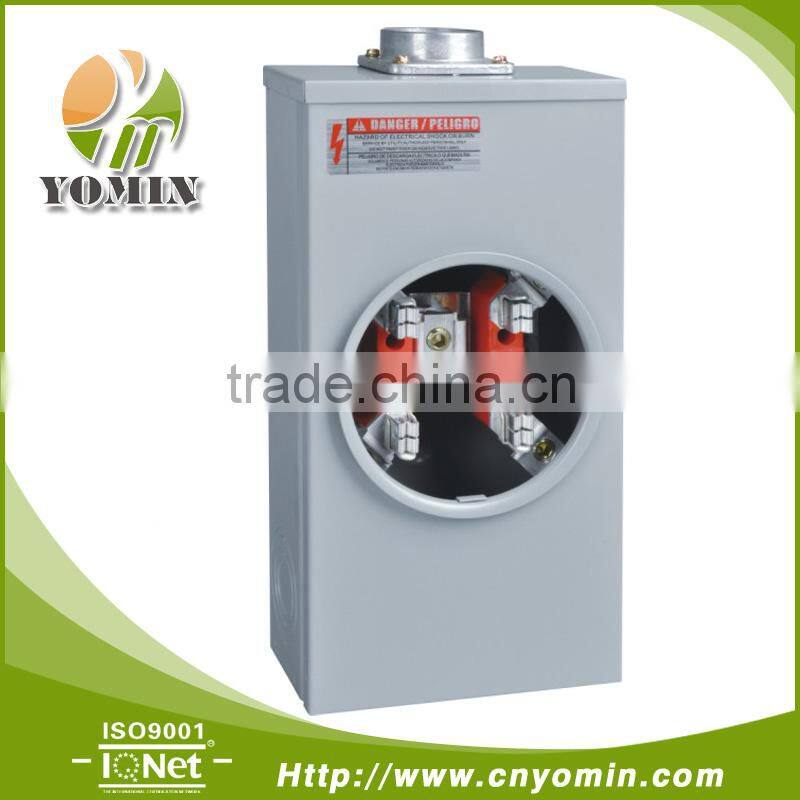

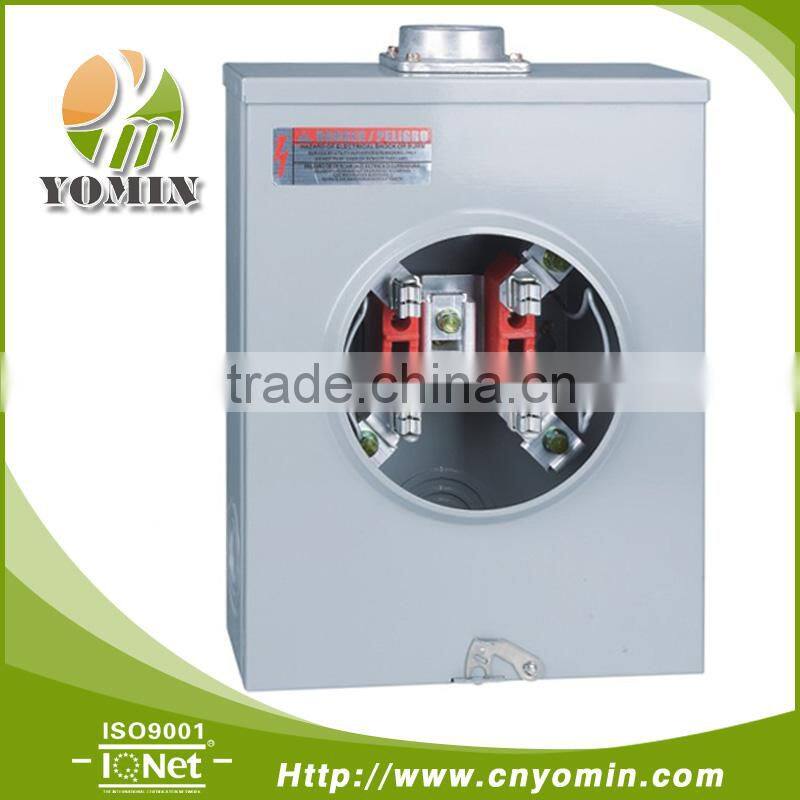

200A Single Phase/ Three Phase Square Meter Socket/Meter Base ( 4 jaws, 5 jaws, 7 jaws/4J, 5J, 7J )
200Amps, 600V AC.
Connectors Line and load size #6-350 Cu-AI
Heavy duty tinned copper jaw with reinforced clip.
C/W center neutral bar.
NEMA 3R type construction 1.2mm thickness (#18 gauge) or 1.5mm thickness(#16 gauge) galvanized steel sheet, electro statically applied epoxy baked gray powder finished.
Ample gutter space for easy wiring.
Convenient knockouts in the side back and bottom.
Lay in type terminal with pressure plates for easy connections.
The fixed hub size 1/2” to 2- 1/2” for option.
Product Number |
Description |

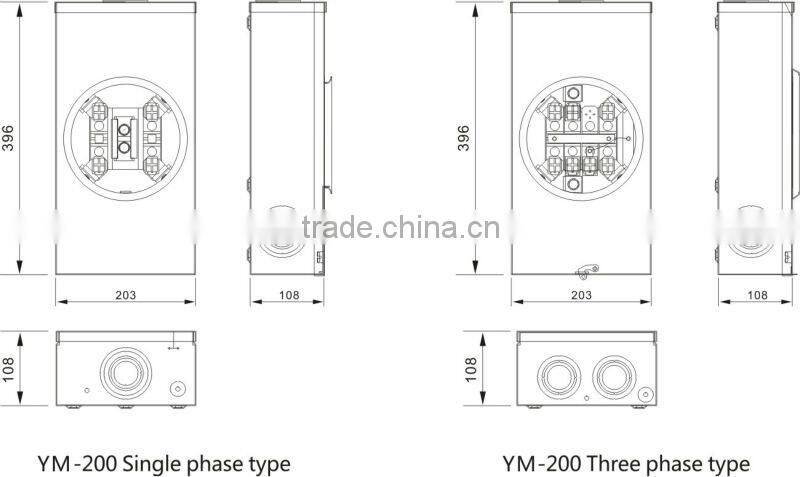

Outline Dimensions |
||
H |
W |
D |
||
YM-200-4J-R |
1 Phase,200A, 4 Jaw, Ring type |
396 |
203 |
108 |
YM -200-5J-R |
1 Phase,200A, 4 Jaw, Ring type |
396 |
203 |
108 |
YM -200-7J-R |
3 Phase,200A, 7 Jaw, Ring type |
396 |
203 |
108 |
YM -200-4J-RL |
1 Phase,200A, 4 Jaw, Ringless type |
396 |
203 |
108 |
YM -200-5J-RL |
1 Phase,200A, 5 Jaw, Ringless type |
396 |
203 |
108 |
YM -200-7J-RL |
3 Phase,200A, 7 Jaw, Ringless type |
396 |
203 |
108 |
YM -200B-4J-RL |
1 Phase,200A, 4 Jaw, Ringless type |
396 |
280 |
108 |
