Introduction:

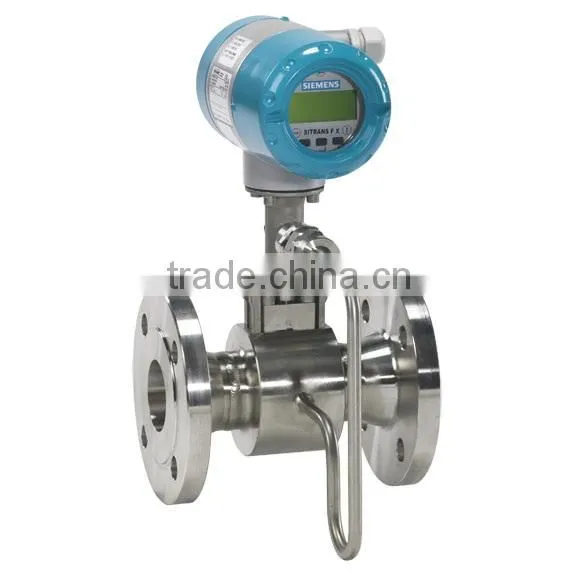

The vortex flowmeter product program consists of two types of flowmeters, a flange and a sandwich version, making it unique as it covers all possible applications. The flange version is available with a single or dual converter, whereas the sandwich version is only available with a single converter. Both versions have the temperature sensor integrated and the pressure sensor as an option.The BBZ-SITRANS FX300 vortex flowmeter is available in a compact or remote version (Cable length: 5m, 10m or 15m). This product is also available as a customized product.
Features:
Maintenance-free due to fully welded sensor construction providing excellent stability and reliability
Contains three measuring points in one device with no extra equipment, installation or cabling costs
Saves downtime because of isolation valve, which makes an exchange of pressure sensor possible without interrupting the process
Easy installation because of Plug & Play
Redundant system as a dual transmitter version is available
Specifications:
Measuring range |
Use calculation and sizing program (link) |
|
Nominal size |
flanged version |
From DN15 to DN300 (½” to 12”) |
Sandwich version |
From DN15 to DN100 (½” to 4”) |
|
Accuracy |
Steam and gases: +/- 2% |
|
Input / output |
4 ~ 20 mA, Pulse/Freq. 0.5 Hz, 24V DC as NAMUR |
|
Communication |
Use calculation and sizing program (link) |
|
Power supply |
24V DC as NAMUR |
|
Operational pressure |
Max 100 Bar (higher pressure on request) |
|
Ambient temperature |
From -40 to 85°C (-40 to 185 °F) |
|
Medium temperature |
From -40 °C to 240 °C (-40 to 464 °F) |
|
Display |
2 lines, 10 characters per line |
|
Transmitter Enclosure |
IP 65 / 66Aluminum Seawater Resistant |
|
Sensor Material |
1.4404/316L, Hastelloy C22 (on request) |
|
Approval |
ATEX ll 2G EEx d ia [ia] llC T6 |
|

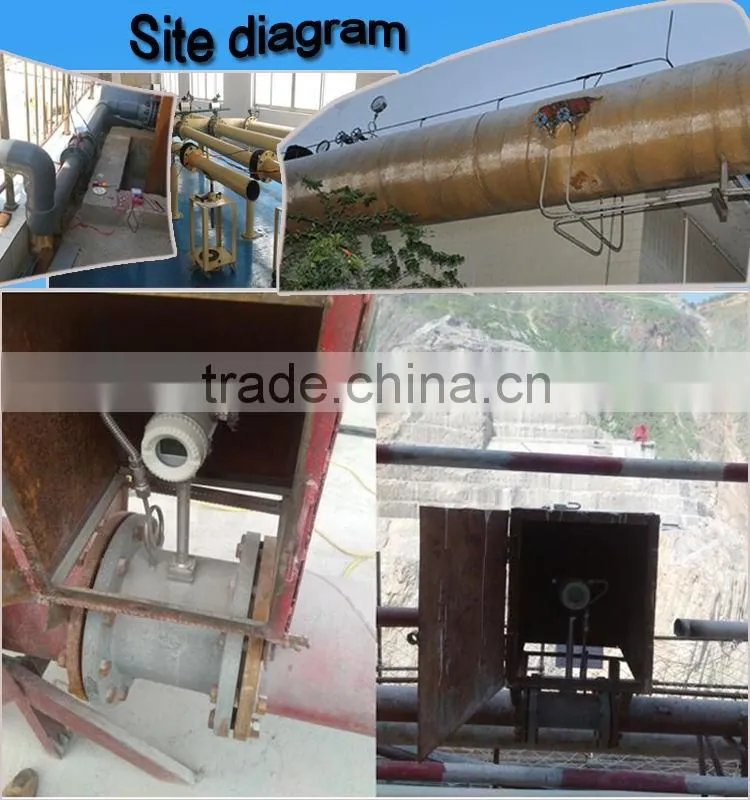

BBZ-SITRANS FX300 vortex flowmeter provides accurate volumetric and mass flow measurement of steam, gases and liquids as an all-in-one solution with integrated temperature and pressure compensation. It widely used in the field of chemical industry, HVAC, power plants, food & beverage industry and oil gas industry and so on.
