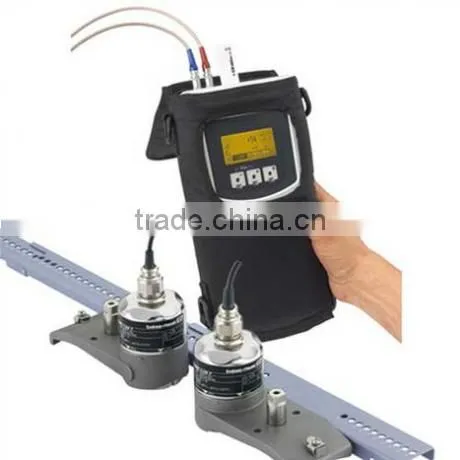

Help CenterBBZ-TUF-2000H Handheld Ultrasonic Flowmeter
Related Products
-
BBZ-XFU-2000P-G-03-- Probe Type Ultrasonic Flowmeter Fixed Clamp-on Ultrasonic FlowmeterUS$ 100 - 3,000MOQ: 1 Piece -
BBZ-LUGB Series Integrated Vortex Flowmeter With Temperature and Pressure CompensationUS$ 50 - 1,050MOQ: 1 Piece
-
BBZ-XFU-2000A-G-01- Probe Type Ultrasonic Flowmeter Fixed Clamp-on Ultrasonic FlowmeterUS$ 186 - 3,500MOQ: 1 Piece
-
BBZ-XFU-2000A-C-02 Higher Accuracy Ultrasonic Flowmeter With Enhanced MonitoringUS$ 100 - 3,000MOQ: 1 Piece
-
BBZ- Daniel 3812 Liquid Ultrasonic Flowmeter BBZ-Daniel Model 3812 Two-Path Liquid Ultrasonic Flow MeterUS$ 100 - 3,000MOQ: 1 Piece
Brief Introduction:
Handheld ultrasonic flowmeter can work for more than 12 hours continuously. Optimized intelligent adaptive signal processing so that users do not adjust any circuit.
Features:
Large LCD display
Non-contact measurement
Built-in data logger
Built-in rechargeable battery
High-precision measurement
Large measurement range
Small size, light weight
RS-232 standard data interface
Applications:

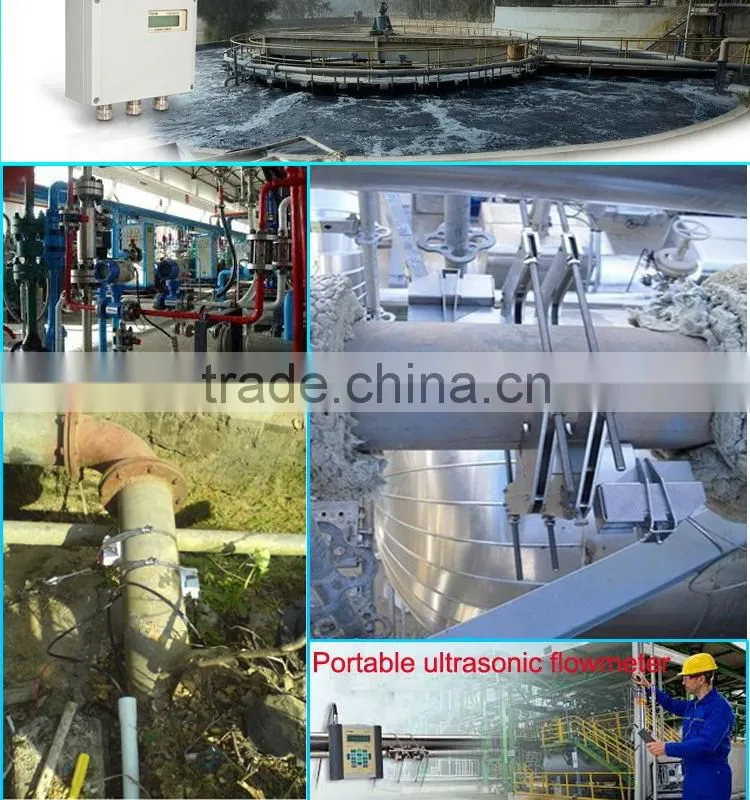

BBZ-TUF-2000H ultrasonic flowmeter using non-contact measurement, large measuring range, no moving mechanical parts,not affected by the pressure from the system and the harsh environment, has been successfully applied to measure water, pure water, seawater, sewage, chemical liquid, river water, fuel oil and other fluid etc.
Specifications:
Measured medium |
Various single homogeneous liquid conducing ultrasonic wave |
Nominal diameter(mm) |
15~6000mm
|
Totalizers |
7 positive, negative and net totalize |
Manual totalizer |
7, Start calibration after pushing button |
Communication interface |
RS232, baud rate 75-57600, compatible with Fuji ultrasonic flowmeter and other products according to the user's requirements |
Accuracy |
±1% Velocity> 0.2 m / s |
Repeatability |
0.2% |
Linearity |
0.5% |
Flow velocity range |
±32 m/s |
Data recording |
Built-in data logger , can record 2000 data lines |
Outer case material |
Retardant ABS |
Dimensions (HxWxD) |
210×90×30mm |
Response time |
0-999s(optional) |
Security |
Locked setting value, required to unlock if change the data |
Power Supply |
3 AAA built-in Ni-H batteries, continuous operation for 12 hours each full charge , AC100-240V adapter 3 batteries |
Display |
4×8Chinese or 4×16 English |
Sensor cable |
Standard 5m × 2, can also be extended to 10m × 2 |
