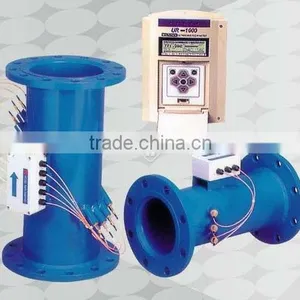

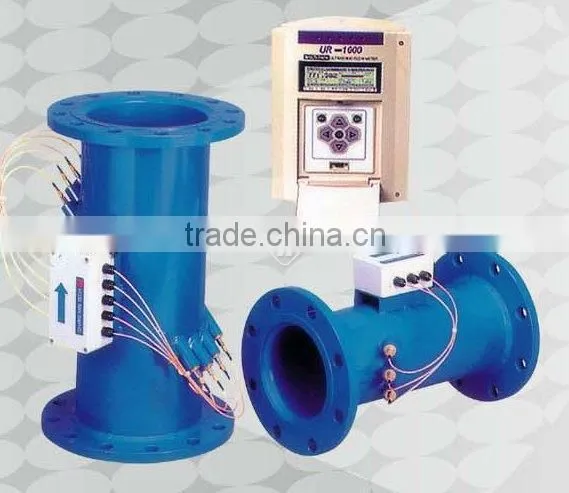

Help CenterBBZ- Daniel 3812 Liquid Ultrasonic Flowmeter BBZ-Daniel Model 3812 Two-Path Liquid Ultrasonic Flow Meter
Related Products
-
BBZ General Vortex Flowmeter for Steam, Gas and LiquidUS$ 100 - 1,200MOQ: 1 Piece -
BBZ-VFD Type Vibration Vortex Flowmeter for LiquidUS$ 100 - 1,500MOQ: 1 Piece
-
BBZ-LU Standard Analog Signals Steam Vortex FlowmetersUS$ 105 - 1,500MOQ: 1 Piece
-
BBZ-LUX Series Oil Precessing Vortex Gas FlowmeterUS$ 200 - 1,500MOQ: 1 Piece
-
BBC-LU Series Vortex Flowmeter for Liquid Gas and VaporUS$ 200 - 1,450MOQ: 1 Piece
Brief Introduction:
Designed for reliable measurement, minimal maintenance and ease of operation, the BBZ- Daniel 3812 liquid ultrasonic flowmeter is a cost-effective metering solution for many applications in the petrochemical, oil, water and wastewater industries. Using sophisticated algorithms and the configuration of its measuring paths, the product ‘s high accuracy of ±0.3% and repeatability of ±0.1%. Innovative electronics combined with advanced digital signal processing make the BBZ- Daniel 3812 less sensitive to changes in the flow profile, solids or entrained air, which results in accurate and stable measurement
Utilizes two mid-radius, parallel-plane measurement paths and offers a high degree of immunity to disturbed flow profiles.
Features:
Minimal maintenance
Cost-effective metering
Full bore meter with no incremental pressure drop increases energy savings
No moving parts reduces maintenance costs
Stability of measurement
Wide flow range
Bi-directional flow capabilities
Integrated diagnostics package provides an intuitive view of meter health
Ease of installation and operation reduces start-up time and lowers capital costs
Applications:
Oil and Gas Industry
Allocation measurement
Effluent flow measurement
Loading and unloading
Industrial Processes
Batch and blending processes
Cooling water measurement
Plant utilities and offtake measurement
Pipelines
Leak detection
Crude and refined product flow measurement
Terminal
Loading and offloading
Tank farms / storage measurement
Specifications:
Linearity |
±0.30% of measured value over a 40 to 4 ft/s (12.2 to 1.2 m/s) range |
Repeatability |
±0.10% of measured value |
Velocity Range |
Nominal 40 to 2 ft/s (12.2 to 0.6 m/s) with over-range of up to 48 ft/s (14.6 m/s) |
Process Product Temperature |
-58°F to +302°F (-50°C to +150°C) |
Specific Gravity Range |
0.30 to 1.5 units |
Operating Pressure Range |
0 to 2250 psig (0 to 155 Bar) |
Calibration |
In order to verify meter performance, all meters are functionally flow tested at Daniel Flow Facility |
Line sizes |
4 to 36nominal bore |
