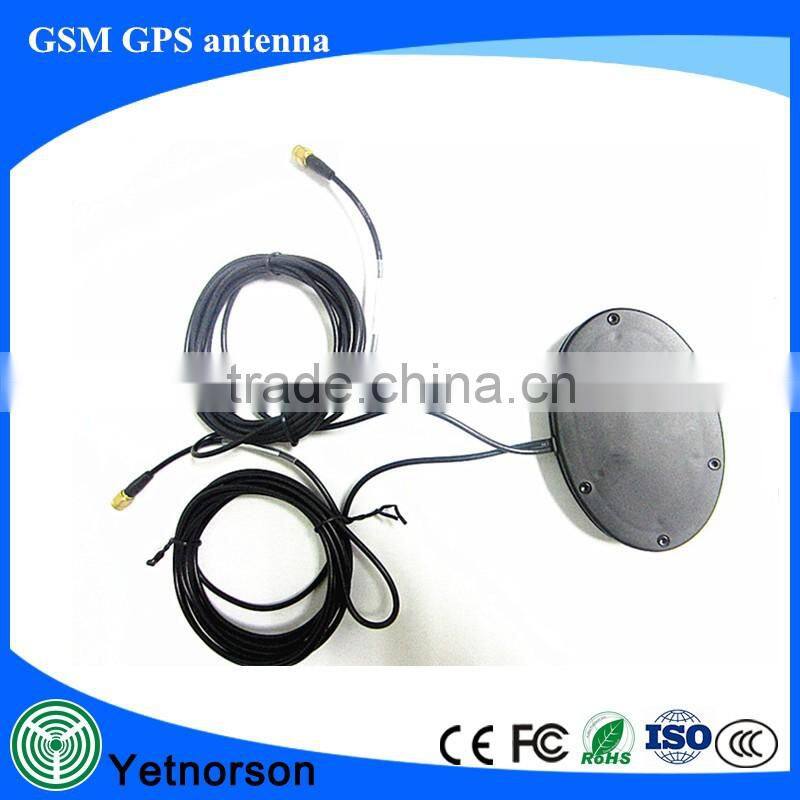

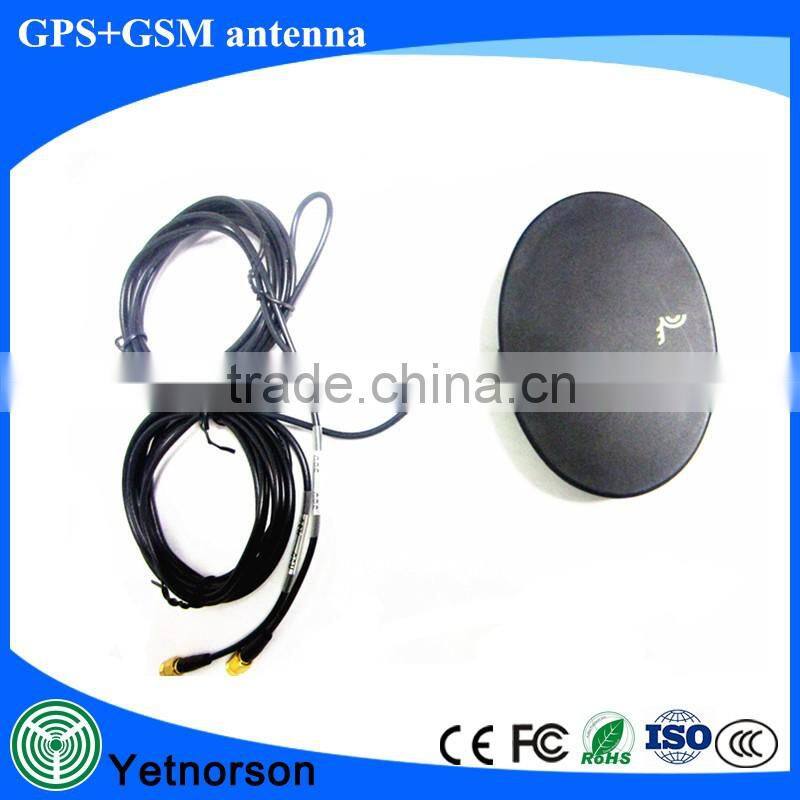

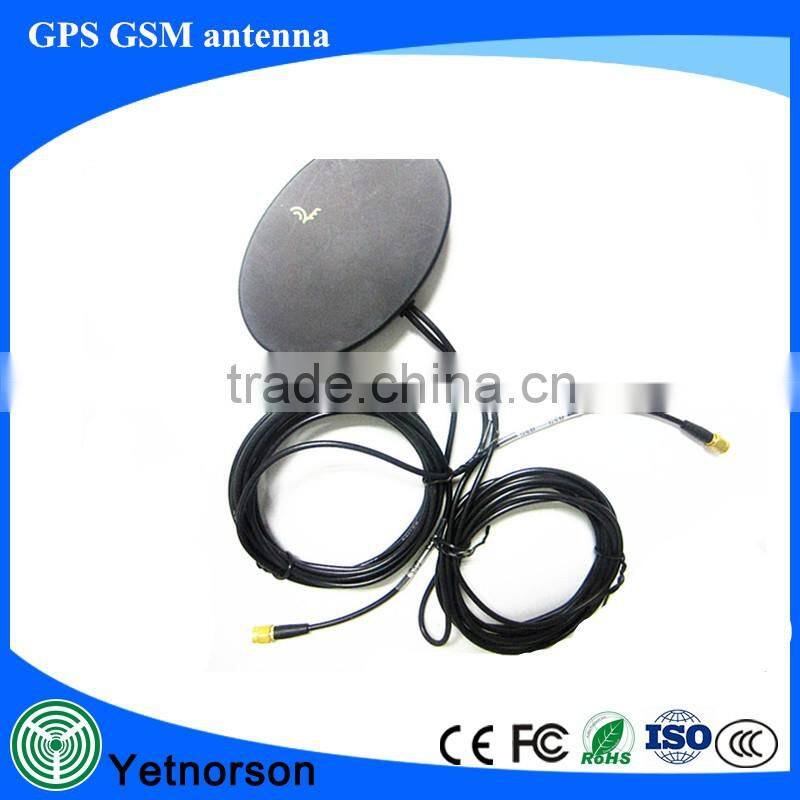

Car GPS GSM Combination Receiver Magnetic Antenna 30 dB

Car GPS GSM Combination Receiver Magnetic Antenna 30 dB thumbnail-1
Car GPS GSM Combination Receiver Magnetic Antenna 30 dB thumbnail-2
Car GPS GSM Combination Receiver Magnetic Antenna 30 dB thumbnail-3
Car GPS GSM Combination Receiver Magnetic Antenna 30 dB photo-1
Car GPS GSM Combination Receiver Magnetic Antenna 30 dB photo-2
Car GPS GSM Combination Receiver Magnetic Antenna 30 dB photo-3
US$ 1.5 - 4 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yetnorson
Model Number:
YNX-GPS-0263
Contact Supplier Request Quote Chat Now
Shenzhen Yetnorson Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Yetnorson
Model Number YNX-GPS-0263
Product Description

GPS antenna part

Center Frequency:1575.42MHz
Polarization: RHCP (right hand circular polarization)
LNA Gain: 28dB typical
Noise figure: 1.5 maximum
Bandwidth: 10MHz
VSWR: 2.0 maximum
Impedance:50 Ohms
Power consumption: 2.7 to 5.5V DC/28mA
Cable and connector: 3m RG-174 with RP SMA male connector
Operating temperature: -35 to +85 degrees Celsius
Storage temperature: -40 to +95 degrees Celsius
Dimensions-mm: 80*14

GSM antenna part

Frequency: 890-960MHz/ 1710-1880MHz
Polarization: vertical
Gain: 3dBi
VSWR: 2.0 maximum
Impedance: 50 Ohms
Power handling capacity: 10W maximum
Cable and connector: 3M RG174 with SMA male connector
Operating temperature: -35 to +85 degrees Celsius
Storage temperature: -40 to +95 degrees Celsius
Dimension-mm: 80*14





GPS GSM Antenna
Center Frequency
1575.42±1MHz 824-1900Mhz
Band Width
CF±5MHz
Polarization
RHCP
Gain
29dBic(Zenith)
V.S.W.R
<1.5
Impendance
50Ω
Axial Ratio
3dB(max)
Dimension
20*20*4mm





  LNA
Gain
26±2dB
Noise Figure
<1.3
Filter Insertion Loss
<3dB
Ex-band Attenuation
12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage
2.2~5V DC
Current Consumption
10~26mA
V.S.W.R
<2.0


Mechanical
Cable
RG174
Connector
SMA/MCX/FAKRA or others
Radome Material
ABS
Mounting Method
Magnet


Environmental
Operating Temperature
-40°C~+85°C
Relative Humidity
Up to 95%
Ingress Protection
IP67
Vibration
10 to 55Hz with 1.5mm amplitude 2 hours
Environmentally Friendly
ROHS Compliant

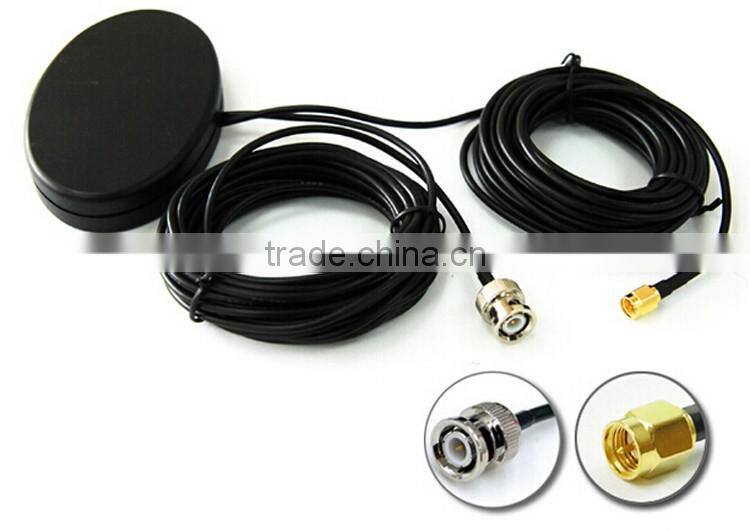

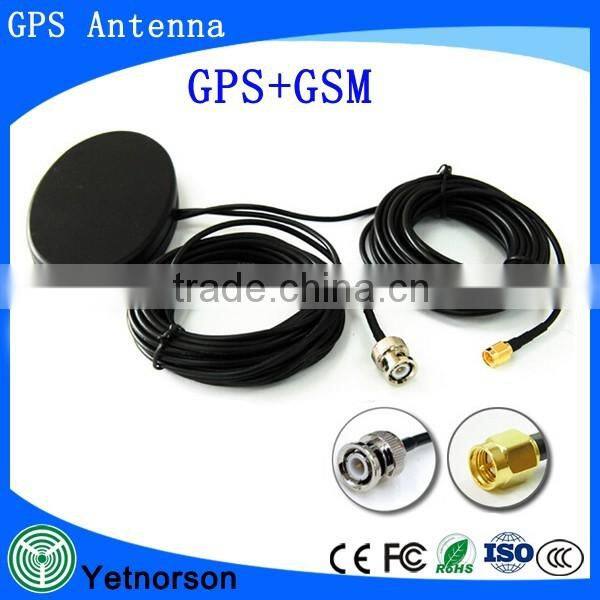

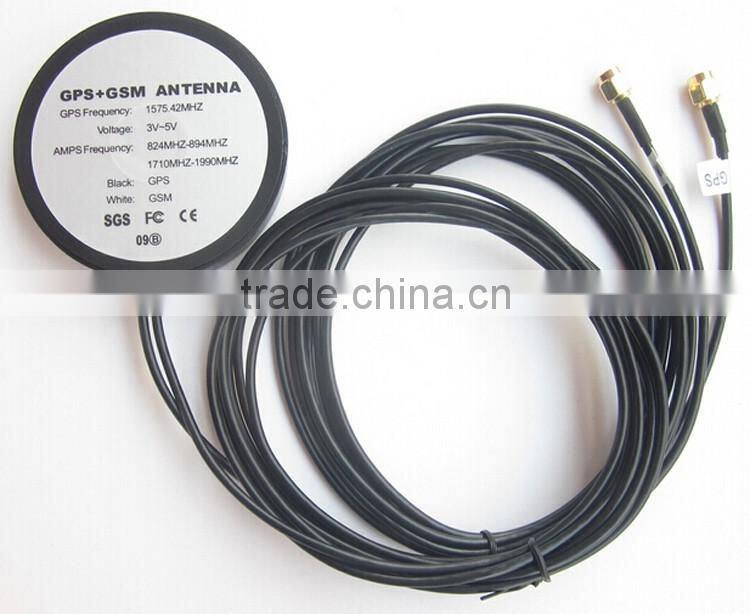

Products Show
Advantages

1. Rich experience , proven technique

2. Reasonable price

3. Wider frequency

4. OEM/ODM available

5. Perfession servie

6. ISO:9001 certification

7.1 year guarantee

8. Fast delivery time

9. R&D

10. Huge Capacity

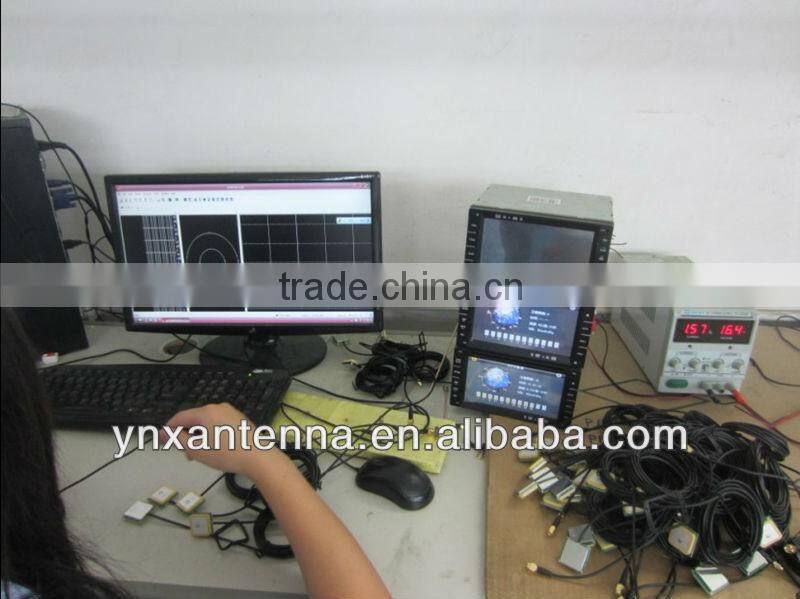

Testing report

Our Company

Our main products including GSM/CDMA//3G/4G antenna,2.4GHz(WIFI,WLAN)/3.5GHz(WIMAX)/5.8GHz/Spread spectrum communication antenna series(including omni antenna,grid antenna,YAGI antenna,indoor covering antenna,Ceiling mounted antenna,wall hanging antenna, panel antenna,dual polarization antenna,broadband antenna,rubber antenna,vehicle-mounted antenna,magnetic base antenna,etc.)DVB-T/DMB-T/CMMB Moving digital TV antenna,low-frequency antenna 315MHz /433MHz Wireless digital wireless monitoring/wireless antenna, GPS antenna, communications accessories: cable (feeder), connectors.

Outdoor activity for excellent staffs to train our unity strength.

Since the Golden time of the global wireless electronic products has come Yetnorson would managed well our supply part making value for our customers with the advantage of our Integrated core competitiveness. We would glow fast enough to be responsible to the market,our Partner,our staff. To be a strength of bringing bright future for antenna.

Packing & Delivery
Our Certifications
FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
