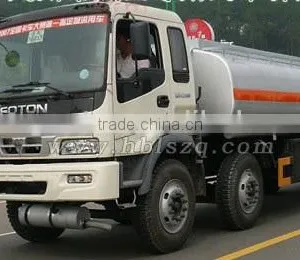

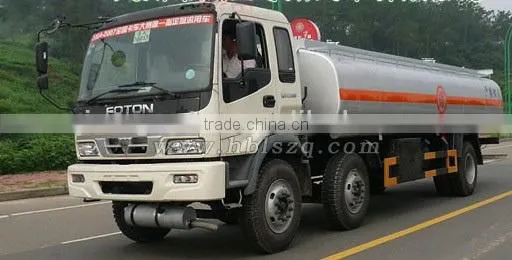

Auman Three Axle Oil Tank Truck

Name: Auman Three Axle Oil Tank Truck
Brand: Qixing
SKU: 113965649

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Storage:

Oil

Drive Wheel:

6x4

Hubei Qixing Vehicle-Body Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Wuhan/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Storage Oil

Drive Wheel 6x4

Horsepower 150 - 250hp

Transmission Type Manual

Fuel Type Diesel

Tank Volume 15001 - 30000L

Engine Capacity 6700 (ml)

Dimensions (L x W x H) (mm) 10275*2480*3350 (mm)

Brand Name Qixing

Place of Origin Hubei, China

Model Number QX-BJ5253GNFHH-S

Gross Vehicle Weight 25000

Auman three axles oil tank truck Technical Parameters
Product:	Auman three axles oil tank truck	Overall dimension:	10400×2490×3350 (mm)
Chassis model:	BJ5253GNFHH-S	Compartment dimension:	×× (mm)
Gross weight:	25000 (kg)	Approach angle/Departure angle:	21/13 (°)
Rated payload:	14000 (kg)	Front/rear suspension:	1365/2375 (mm)
Kerb weight:	10805 (kg)	Max speed:	90 (km/h)
Engine:	ISDe185 30 ISDe210 30
Displacement:	6700 6700 (ml)	Power:	136 155 (kw)
Manufacturer:	Dongfeng Cummins Engine Co., Ltd.
Emission standard:	GB17691-2005Euro 3,GB3847-2005
Axle nos:	3	Front tread:	1900/1900 (mm)
Wheelbase:	1860+4800 (mm)	Rear tread:	1847 (mm)
Tyre nos :	8	Tyre specification:	9.00-20,9.00R20,10.00-20
Fuel type:	Diesel	Leaf spring nos:	10/10/10+9
Axle load:	6900/6900/11200	Passenger nos	3
Remarks:	Tank volume:21m3
