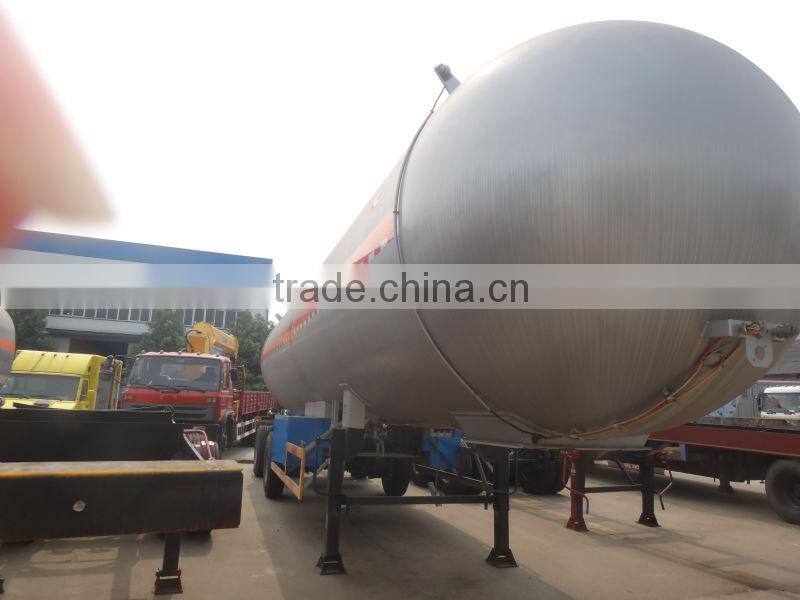

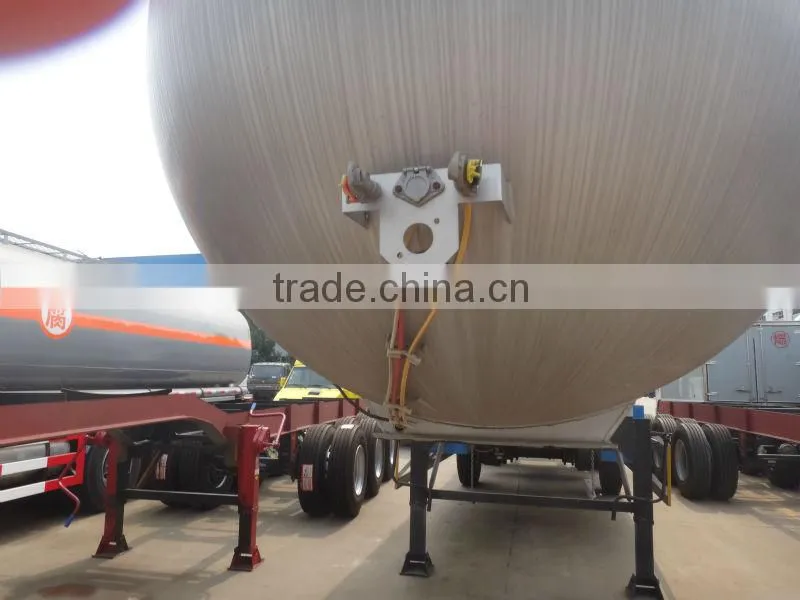

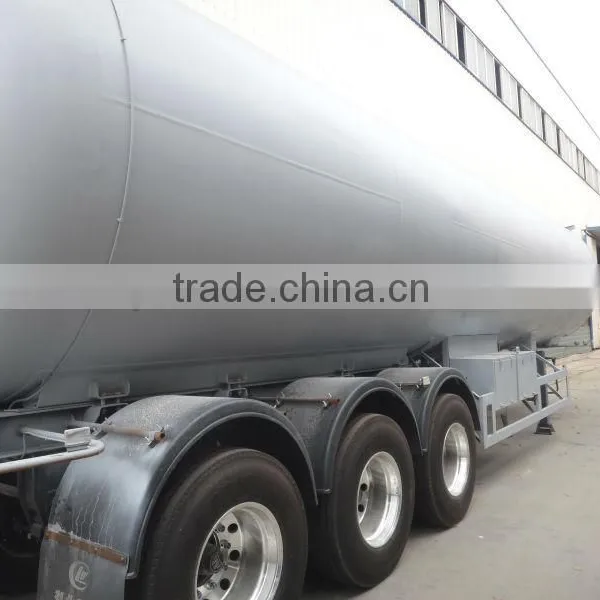

Help Center58500L LPG Semitrailer
Related Products
-
49600L LPG SemitrailerUS$ 1 - 1,000,000MOQ: 1 Set -
42000L Liquid Food Stainless Steel Tanker TrailerUS$ 1.00 - 1.00MOQ: 1 Set
-
35000L Tandem Axle Stainless Steel Tanker TrailerUS$ 2.00 - 2.00MOQ: 1 Set
-
Stainless Steel Oil Tank TrailerNegotiableMOQ: 1 Set
-
43000L Stainless Steel Oil Tank Trailer DOT SASO CCC CertificationNegotiableMOQ: 1 Set
Items |
Data |
Items |
Data |
|||||||||
Product ID: LW1900 |
||||||||||||
Gross Vehicle Weight (GVW) |
40000 Kg |
Design temperature |
≤50 °C |
|||||||||
Load capacity |
24570Kg |
Filling medium |
LPG (Propane) |
|||||||||
Semitrailer curb weight |
154300Kg |
Tank material |
Q345R |
|||||||||
Pressure of leak test |
1.77 Mpa |
Corrosion allowance |
1.0mm |
|||||||||
|
External Dimensions (length×width×height) |
13000×2500×3990mm |
Heat treatment method |
PWHT |
|||||||||
Water capacity |
58.5m3 |
|||||||||||
|
Hydraulic test Pressure |
2.66 Mpa |
|||||||||||
|
Full load
|
Fifth wheel load |
14260Kg |
Internal Dimensions Internal (length×diameter) |
2470×12850mm |
||||||||
Rear axle load |
21880Kg |
|||||||||||
Max. vehicle roll angle |
>350 |
|||||||||||
Design the limited velocity |
Straight road |
80 Km/h
|
Vessel's sort
|
The third kind |
||||||||
Turning |
20 Km/h |
Service Years |
Ten years |
|||||||||
|
U. V |
Japan Type |
QGJ43F-2.5 Or FISHER internal valve C427-16-25 C427-24-50 |
S . V |
Type |
A412F-2.5 Or FISHER Relief valve H732-275 |
|||||||
Nominal pressure |
PN2.5Mpa |
Model |
Inner full lift |
|||||||||
Nominal diameter |
Gas phase |
DN 25mm |
Nominal pressure |
PN2.5 MPa |
||||||||
Liquid phase |
DN 50mm |
Nominal diameter |
DN80mm |
|||||||||
Operation way |
Manual |
Opening pressure |
1.92~2.01 MPa |
|||||||||
Closing time |
10 Sec |
Closing pressure |
>1.54 MPa |
|||||||||
Melting switch temperature |
70±5°C |
Complete opening Pressure |
<2.19 MPa |
|||||||||
|
I. L |
Type |
YWJ-2.5A RN1200 |
L.U. S
|
Valve type |
Q41F-2.5P /CQA41F-25P |
|||||||
Model |
Rotary type |
Model |
Quick tie-in |
|||||||||
Nominal pressure |
PN2.5Mpa |
Nominal Diameter |
Gas phase |
DN25mm |
||||||||
Surveying range |
0~2400mm |
Liquid phase |
DN50mm |
|||||||||
Precision |
2.5 Grade |
|||||||||||
Wheel base |
6880+1310+1310mm |
Tire |
12.00-20 |
|||||||||
Production cycle |
55-60 days |
|||||||||||
FOB PRICE |
USD |
CNF PRICE |
USD |
|||||||||
