Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > Rotary Machine Head Film Blowing Machine

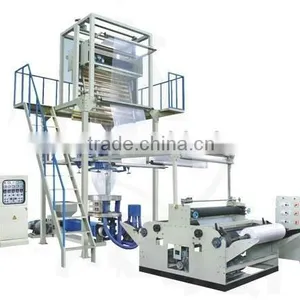

Rotary Machine Head Film Blowing Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Film

Plastic Processed:

Contact Supplier Request Quote Chat Now

Sutex Wuxi International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Film

Plastic Processed PE

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Zhejiang, China

Specifications

Rotary Machine Head Film Blowing Machine
extruder are made of high-quality alloy steel
(LDPE) and (HDPE)

description:

SJ-55/FM800 SJ-60/FM1000 SJ-65/FM1200 SF-80/FM1500 SJ-100/FM2000
Rotary Machine Head Film Blowing Machine Set
Use:
It is used for blowing the plastic laminated film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, industrial products, garments and textile, Ect,And printing lamination.
Characteristics:
The cylinders and the screw stems of the extruder are made of high quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing.The auxiliary machine has a plat from working table for making operation easy and is equipped with bubble stabilizing ring.
Double-rolling and double-cutting coiling unit adopts torque motor to motor to keep proper tension and make even and roll-changing easy.

Main Technical Variables:

Model	SJ-55	SJ-60	SJ-65
Screw Diameter	55mm	60mm	65mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Main Output	50kg/h	65kg/h	70kg/h
Power of Main Motor	15KW	18.5KW	22KW
Specification of Die Head	¢100-¢150mm	¢100-¢180mm	v120-¢220mm
Rotational Mode of Machine Head	constantly revolve	constantly revolve	constantly revolve
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Max.Folding Width of Film	800mm	1000mm	1200mm
Electric Total Capacity	26Kw	30Kw	42Kw
Weight of Mashine	2300kg	3000kg	3800kg
Overall Dimensions	6000x2000x4000mm	6500x2200x4500mm	6800x2400x4800mm

Model	SJ-80	SJ-100
Screw Diameter	80mm	100mm
Screw Ratio	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min
Main Output	86kg/h	140kg/h
Power of Main Motor	30KW	45KW
Specification of Die Head	¢150-¢300mm	¢500mm
Rotational Mode of Machine Head
Single-sided Thickness of Film	0.01-0.10mm	0.01-0.10mm
Max.Folding Width of Film	1500mm	2000mm
Electric Total Capacity	56Kw	880Kw
Weight of Mashine	4600kg	6000kg
Overall Dimensions	7000x2700x5500mm	8000x3200x7600mm
