Double-head Film Blowing Machine

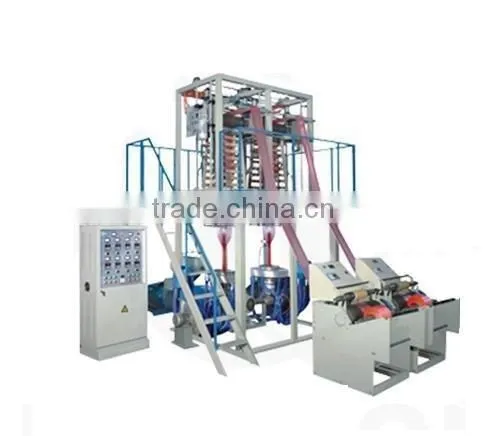

Double-head Film Blowing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China

Specifications

Double-head Film Blowing Machine
used for blowing low density polyethylene(LDPE)and high-density polyethyene(HEPE)

description: SJ-55FM-600 SJ-60FM-700 SJ-65FM-800
Double-head Film Blowing Machine Set

Use:
It is used for blowing low density polyethylene(LDPE)and high-density polyethyene(HEPE)plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and testile industry, etc.
Characteristics:

Both the cylinder and the screw of the extruder are made of high-quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.Scientifically designed, this machine set has tow heads for one extruder with such advantages as increasing production capacity, saving evergy, labour and workshop area, etc.


Main Technical Variables:

Model
SJ-55-FM600type
SJ-60FM-700type
SJ-65FM-800type
Screw Diameter
55mm
60mm
65mm
Screw Ratio
1:28-30
1:28-30
1:28-30
Screw Speed
10-110r/min
10-110r/min
10-110r/min
Main Output
46kg/h
55kg/h
70kg/h
Max.Folding Width of Film
550mmx2
650mmx2
750mmx2
Single-sided Thickness of Film
0.006-0.10mm
0.006-0.10mm
0.006-0.10mm
Power of Main Motor
15KW
18.5KW
22KW
Total Power
2226
30Kw
35Kw
Weight of Mashine
2800kg
3200kg
3800kg
Overall Dimensions
4800x2200x3000mm
5000x2400x3200mm
5200-2600x3400mm

Design and specifications are subject to change without notice.
Note:the user should place an order with us super-huge machine set.
