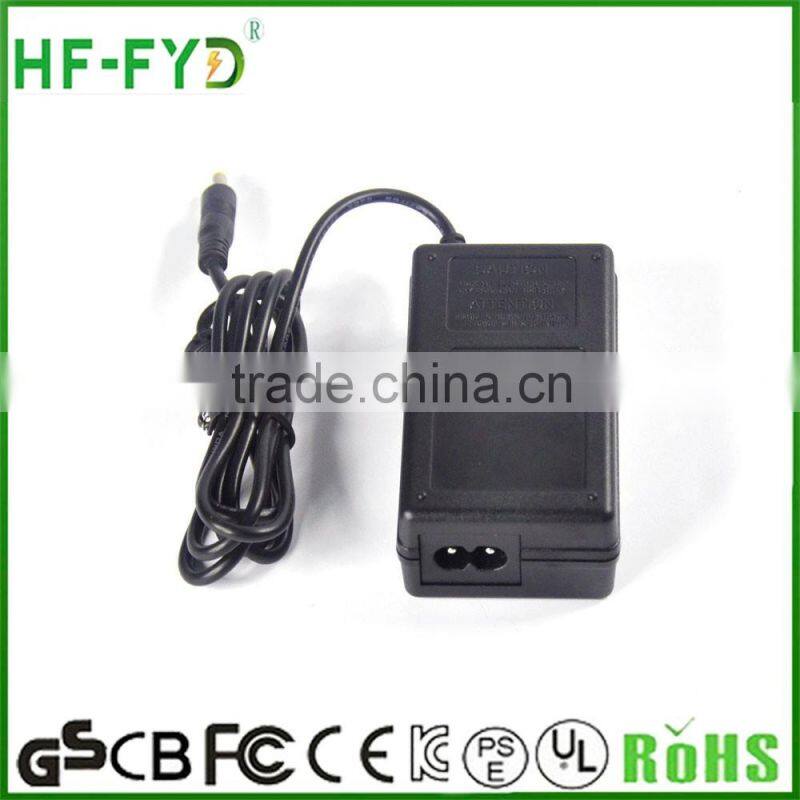

Manufactures Electronics Power Supplier Desktop Ac DC Power Adapter 9V 12V 15V 16V 18V 19V 24V 1a 2a 3a 5a 6a 8a 10a Supplier's Choice

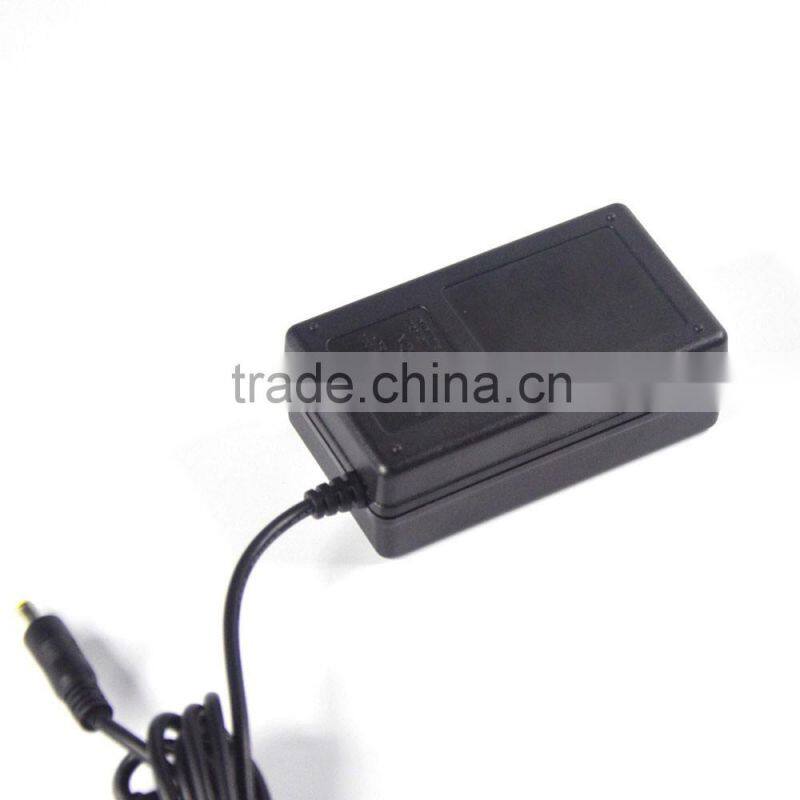

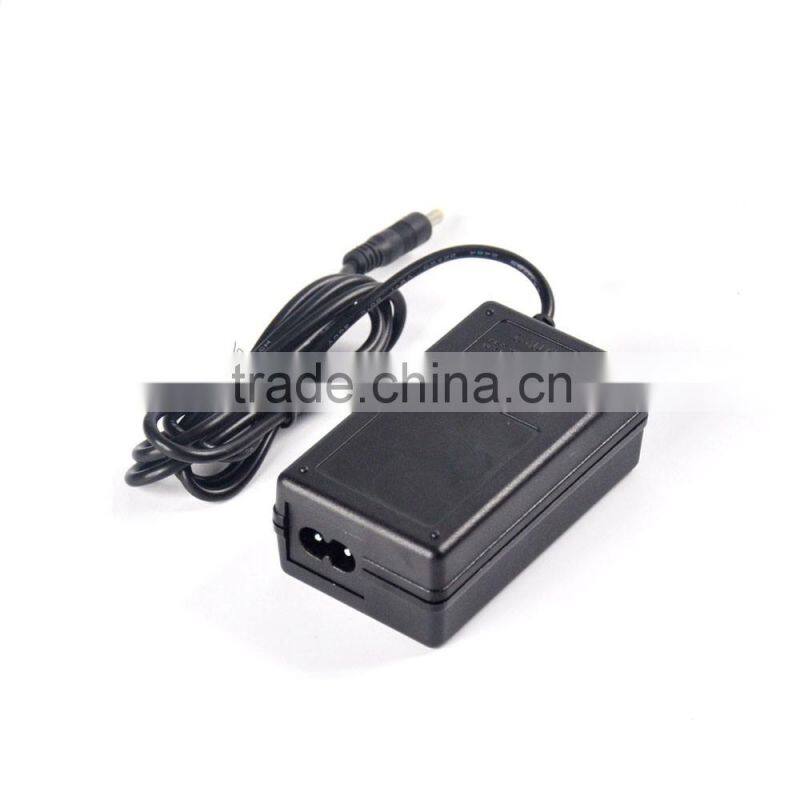

 Wholesale OEM/ODM 9V 3A ac dc adapter

Specifications

1 FY0903000 ac adaptor 9v 3a
2.I/P: 110-240V
3.100% full-load burning test
4.Warranty:2 years

 ac adaptor 9v 3a

Description

Output max power:27W

All range voltage input

High efficiency,low loss

European commission of energy

Built in EMC/EMI filter

You can chose the output voltage/current arbitrarily

Widely used in the electronic digital,communication,security,lighting,medical,etc.

Environmental and reliability

Operating temperature:0-40C

Operating humidity:10-90%RH

Storage temperature:-20-+80C

Storage humidity:5-90%RH

Leakage current:0.25mA max

Environment requirements

1 Operating temperature: -10-35 C Celcius
2 Storage temperature: -20--70 C Celcius
3 Storage humidity: 5%-90%

Advantage

1 Soft-start can reduce the AC input impact efficiency
2 Wiht short ciucuit and over load protection
3 Compact size, light weight
4 100% full-load burning test

5 2 years warranty

Specification

Safety:UL,CE,FCC,ROHS,GS,ETC

AC Input Voltage.............100~240V AC 47~63 Hz

Inrush Current..............<30A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%

DC Voltage Regulation

DC Output Current

Output Ripple & Noise.............  120mVp-p@ 25 degrees C

Output Dynamic Load Response

Overshoot at turn-on/ turn-off.............<10%

SCP...........<0.1 ohms

OCPlimits.........6A

Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)

Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)

Standards............Meet IEC60950-1standard requirement

Leakage Current.............not exceed 0.25mA at 220Vac/50Hz

Insulation Resistance...........≥50MΩ ,500VDC

100%Hi-pot  test
