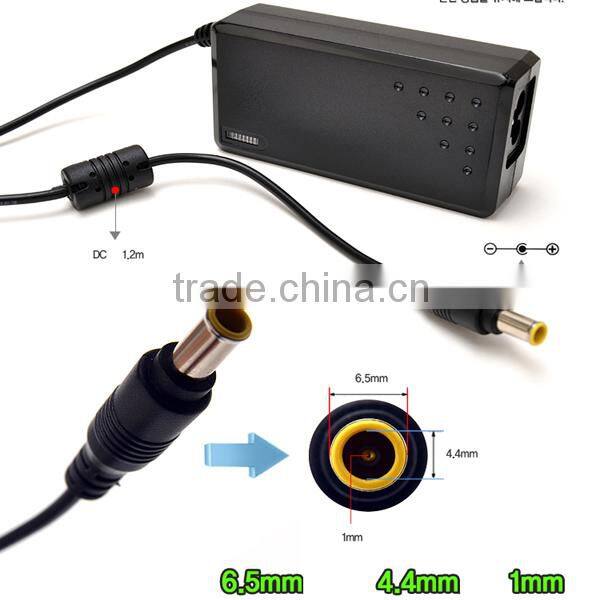

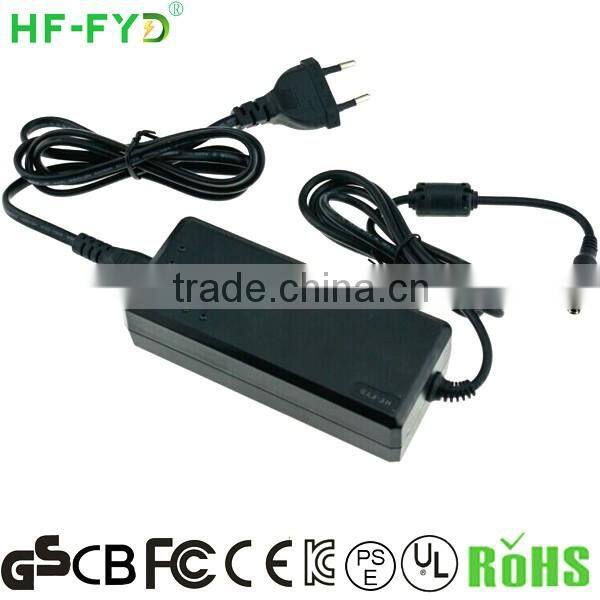

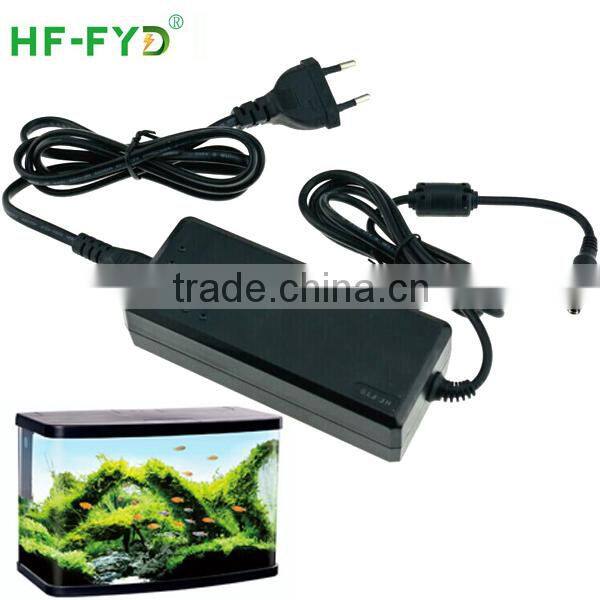

HF-FYD FY0506000 UL/CE Approval Switch Power Adapter,1.2M AC Cable,with Patent

Input voltage:AC 110-240V
Output voltage:DC 5V
Output current:6A
Input current(max):0.36A
Input frequency:47-63HZ
Depletion(no load):<0.3W min
Efficiency(max):85%

Protection

Over current protection
Over power protection
Over voltage protection

Environmental and reliability

Operating temperature:0-40C
Operating humidity:10-90%RH
Storage temperature:-20-+80C
Storage humidity:5-90%RH
Leakage current:0.25mA max

AC Input

AC Input Voltage.............90~264V AC 47~63 Hz
Inrush Current..............<50A(AC 240V at 25°C)
input Current Limiting..............<2.5A(under min AC input and full load)
Efficiency..............>80%

DC Output

DC Voltage Regulation

DC Output Current

Output Ripple & Noise............50mVp-p@25 °
Output Dynamic Load Response

Overshoot at turn-on/ turn-off.............<10%

Protection Function
SCP...........<0.1 ohms
OCPlimits.........12A

Working temp...........0°C~ 40°C
Storage temp Range..........-10°C~ +85°C
Working humidity..........25%~90% relative humidity (Non- condensing)
Storage humidity Range..........10%~90% relative humidity (Non- condensing)
MTBF............ 50K hours (25°C , Full load and rated voltage input)

Packing

1.Inner package:PE bag,white box or as your demand
2.Outer package:Carton or according your requirement

Caution

1.Risk of electric shock dry location use only
2.Do not open the adapter if not professional person.

Usaged guide

1.Insert the AC adapter prongs fully into the wall outlet.
2.Remove the AC adapter from the wall outlet when it it fully charged or not in use .

After service

This product can be repair within one year for any defects or irregularities caused by the factory.
