HF-FYD FY0904000 9V 4A Desktop AC/DC Adapter
- FOB Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-

                        FY2401500 24V 1.5A Power Adapter UK Plug Charger for Travelling
-

                        FY3601000 AC Power Adapter for Home Electric Appliance With Safety Approval
-

                        HF-FYD FY0505000 5V 5A Laptop Power Adapter 2015 New Moulding
-

                        FY1202000 Wholesale Input AC 100-240V ac 50/60Hz 12V 2A Wall Power Adapter With CE Quality Choice
-

                        CE Wall Power Adapter HF-FYD FY1202500 12V 2.5A With CE
-

                        HF-FYD FY1203000 3 Pin Plug 12v Adapter
Product Details
| Place of Origin | Guangdong, China | Brand Name | HF-FYD | |
| Model Number | FY0904000 | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, 100-240V | |
| Output Voltage | 9V | Output Current | 4A |
Product Description

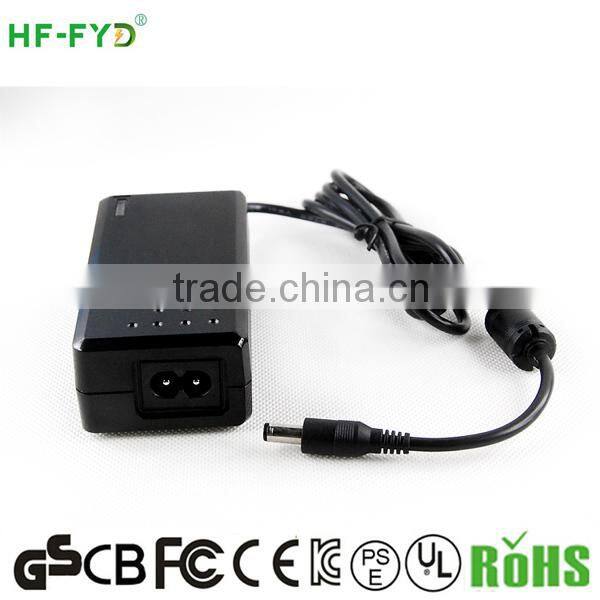

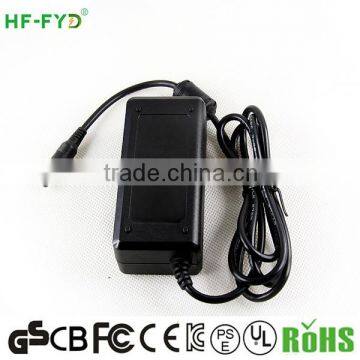

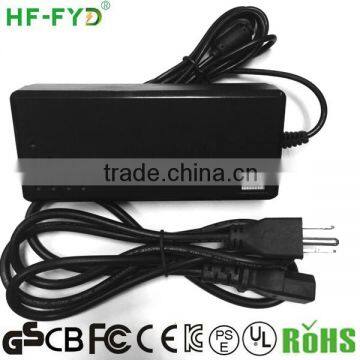

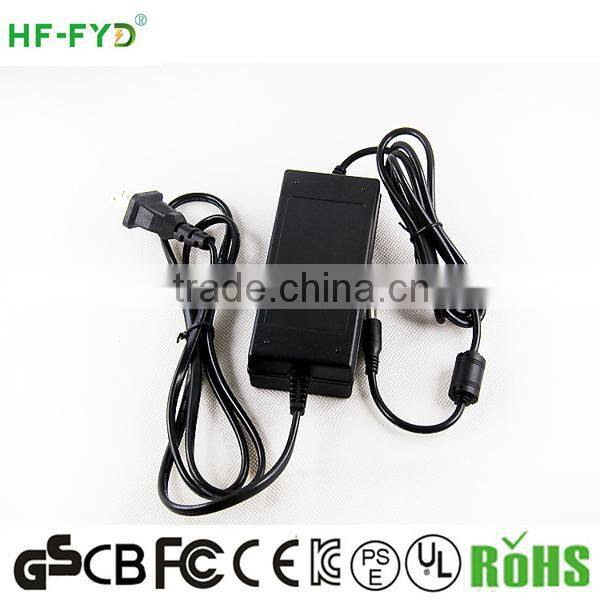

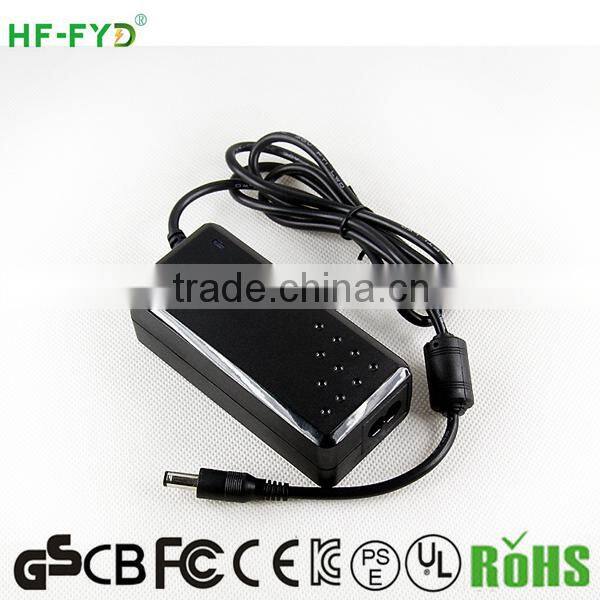

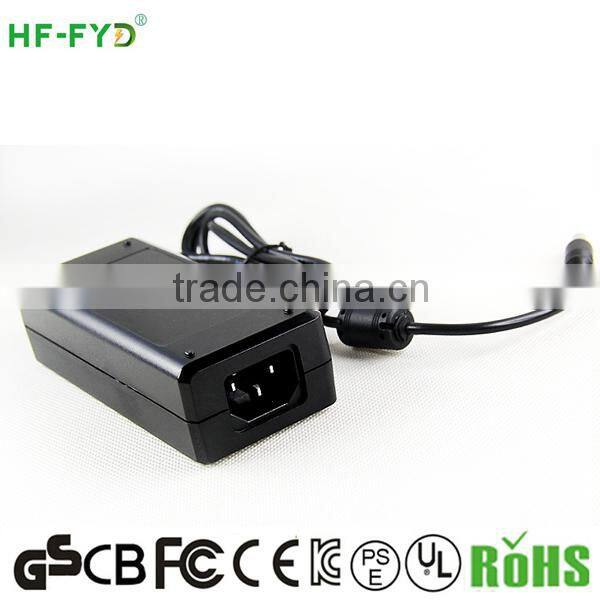

HF-FYD FY0904000 9V 4A Desktop AC/DC Adapter
......with UL 1310 Class 2
Dear Sir or Madam ,
This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484
Looking forward to your any inquires !
Widely used in the electronic digital, communication, security, lighting, medical, led lighting, led display, etc
v Power:36W
v Model:FY0904000
v Input voltage: AC 110-240V
v Universal input voltage
v Frequency: 47-63HZ
v Output voltage:DC 9V
v Output current:4A
v Color:Black or white
v Certification:CE,UL,SAA,CB,FCC,GS,KC,PSE,etc
v 2years warranty
v High quality,competitive price
v Punctual and Fast delivery
v Efficiency:85%

Input voltage
| Minimum | Nominal | Maximum |
| 100Vac | 110Vac/220Vac | 240Vac |
Input Frequency
| Minimum | Nominal | Maximum |
| 47Hz | 50Hz/60Hz | 63Hz |
Input Current Limiting
The input current should be less than 2.5A, under minimum AC input and full load.
Efficiency
The power supply efficiency shall be greater than 80% under rated input voltage. It will be measured at the typical load and maximum load.
DC Voltage Regulation
| Parameter | Line Regulation | Load regulation | Cross regulation |
| V1:9V | ±5.0% | ±5.0% | N/A |
DC Output Current
| Parameter | Min Current | Rate Current | Max Current | Unit |
| V1:9V | 0.1 | 4A | - | A |
Output Ripple and Noise
| Parameter | Max. |
| V1:9V | 120mVp-p@25 degrees C
 |
Dielectric Strength Testing
| Item | Specification | Remark | |
| Primary to Secondary | 1.5KVac | <5mA | No arcing No broken |
| Primary to P.G | N/A | N/A | |
Overshoot at turn-on/ turn-off
Any overshoot at turn on or turn off shall be less than 150% of rated output voltage.
Over Current Protection
The power supply shall meet the limitation requirement as below table without any damage, the unit shall recover and function automatically after the protection is removed.
Over Current Protection limits
| Parameter | Max | Unit |
| V1:9V | 6 | A |

² Over-voltage protection: 120%min
² Over-current protection: 120%min
² Short-circuit protection: automatic recovery
² over protection
² Load regulation: ±5%
Standard
Meet IEC60950-1 (information technology and similar electric apparatus -safety requirement) standard requirement.
Advantage of the product
l range voltage: AC 90-264V 47/63HZ
l High efficiency and low operation temperature
l AC input power suitable for the world
l Soft-start current can reduce the AC input impact efficiency
l Compact size ,light weight
l With short-circuit and overload protection

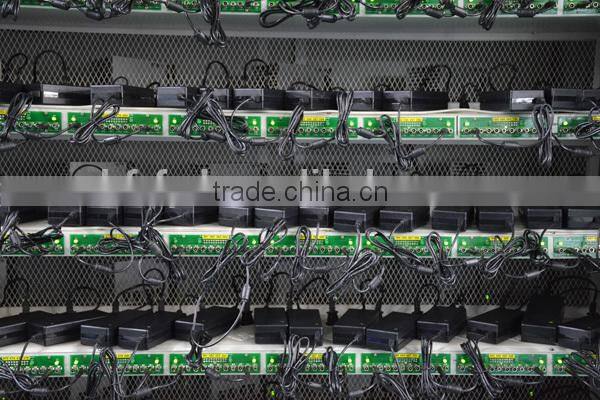

l 100%full-load burning test
l Installed with EMI filter ,minimum wave
Environmental requirement
1)operating temperature: 0-40°C
2)storage temperature: -20-85°C
3)opera ting relative humidity:595%RH
4)Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5)Insulation resistance: DC 500V 100MΩ (minimum)
BASIC TERMS:
u MOQ (Min Order Qty): 500PCS / 1 CT or 50PCS/CT
u Lead-Time: 7-15 Working Days Normally
u Warranty Period: 2 years
u Payment Methods: T/T, Paypal, Western Union, etc
u Shipping Mode: Express Courier, Air, Sea or as your demand
Description:
Ø Universal input voltage
Ø 5 Years Experience Factory
Ø High quality,best price
Ø Punctual and Fast delivery

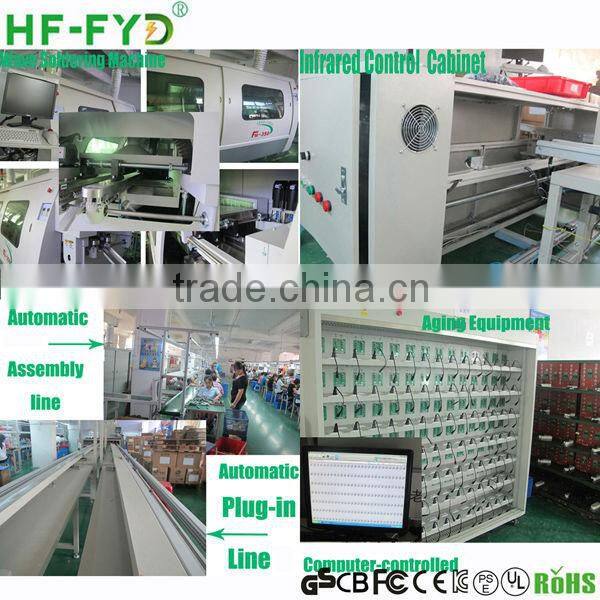

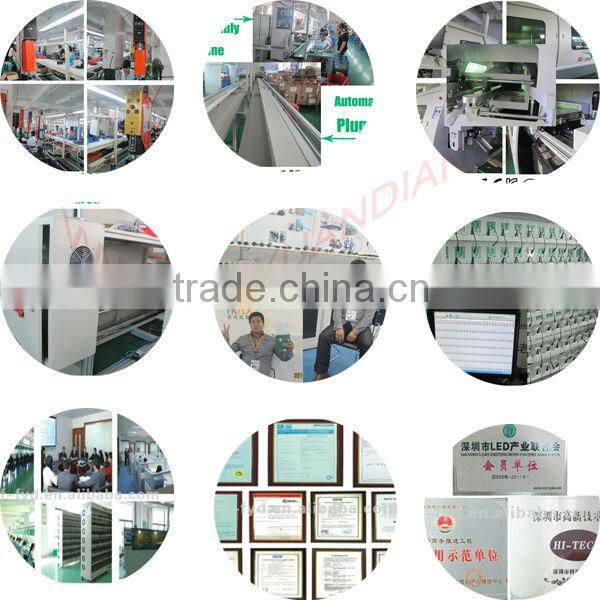

About us
We are a professional adapters factory for more than 5 years
ü Quality control:our defectie products rate is 0.01%
ü Economically priced, exquisitely made Experience&responsible QC that you can reply on
ü Adequate supply capacity, Punctual delivery time
ü Best after sales service are provided
After service
This product can be repair within one year for any defects or irregularities caused by the factory.

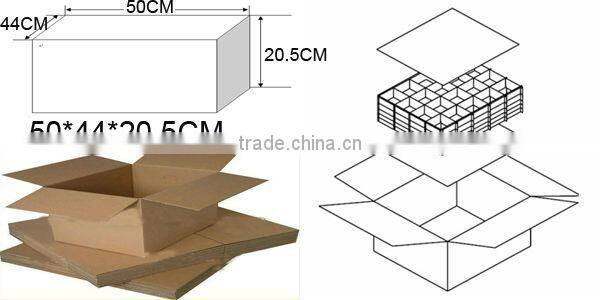

1.Inner package:PEbag,white box or as your demand
2.Outer package:Carton or according your requirement
| Inside package | PE bag |
| Package | 50 PCS/CT |
| Outer package | Carton |


Dear Sir or Madam ,
This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484
Looking forward to your any inquires !
