Product Details
| Place of Origin | Guangdong, China | Brand Name | HF-FYD | |
| Model Number | FY1203000 | Output Type | DC | |
| Connection | Desktop |
Product Description

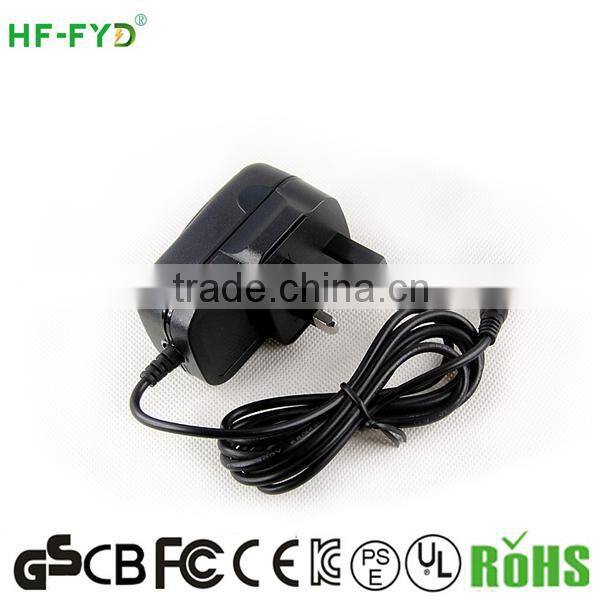

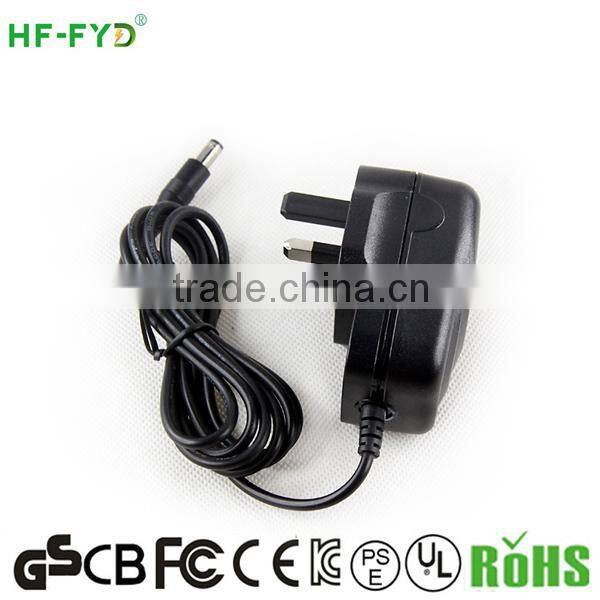

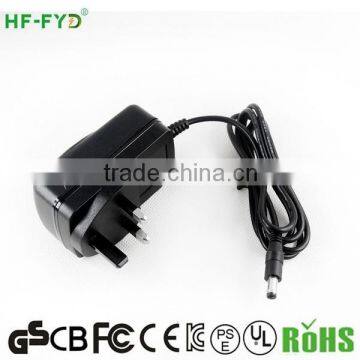

HF-FYD FY1203000 3 pin plug 12v adapter
---with UL GS CE FCC ROHS PSE C-TICK
Dear Sir or Madam ,
This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484
Looking forward to your any inquires !
Application
Widely used in the electronic digital, communication, security, lighting, medical, led lighting, led display, etc

Electric Performance Parameters
v Power:36W
v Model:FY1203000
v Input voltage: AC 110-240V
v Universal input voltage
v Frequency: 47-63HZ
v Output voltage:DC 12V
v Output current:3A
v Color:Black or white
v Certification:CE,UL,SAA,CB,FCC,GS,KC,PSE,etc
v 2years warranty
v High quality,competitive price
v Punctual and Fast delivery
v Efficiency:85%
Input voltage
| Minimum | Nominal | Maximum |
| 100Vac | 110Vac/220Vac | 240Vac |
Input Frequency
| Minimum | Nominal | Maximum |
| 47Hz | 50Hz/60Hz | 63Hz |
DC Voltage Regulation
| Parameter | Line Regulation | Load regulation | Cross regulation |
| V1:12V | ±5.0% | ±5.0% | N/A |
DC Output Current
| Parameter | Min Current | Rate Current | Max Current | Unit |
| V1:12V | 0.1 | 3A | - | A |
Output Ripple and Noise
| Parameter | Max. |
| V1:12V | 120mVp-p@25 degrees C
 |
Dielectric Strength Testing
| Item | Specification | Remark | |
| Primary to Secondary | 1.5KVac | <5mA | No arcing No broken |
| Primary to P.G | N/A | N/A | |

Protection
² Over-voltage protection: 120%min
² Over-current protection: 120%min
² Short-circuit protection: automatic recovery
² over protection
² Load regulation: ±5%


Standard
Meet IEC60950-1 (information technology and similar electric apparatus -safety requirement) standard requirement.
Advantage of the product
l range voltage: AC 90-264V 47/63HZ
l High efficiency and low operation temperature
l AC input power suitable for the world
l Soft-start current can reduce the AC input impact efficiency
l Compact size ,light weight
l With short-circuit and overload protection
l 100%full-load burning test
l Installed with EMI filter ,minimum wave
Environmental requirement
1)operating temperature: 0-40°C
2)storage temperature: -20-85°C
3)opera ting relative humidity:595%RH
4)Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5)Insulation resistance: DC 500V 100MΩ (minimum)
BASIC TERMS:
u MOQ (Min Order Qty): 500PCS / 1 CT or 50PCS/CT
u Lead-Time: 7-15 Working Days Normally
u Warranty Period: 2 years
u Payment Methods: T/T, Paypal, Western Union, etc
u Shipping Mode: Express Courier, Air, Sea or as your demand
Description:
Ø Universal input voltage
Ø 5 Years Experience Factory
Ø High quality,best price
Ø Punctual and Fast delivery
About us
We are a professional adapters factory for more than 5 years
ü Quality control:our defectie products rate is 0.01%
ü Economically priced, exquisitely made Experience&responsible QC that you can reply on
ü Adequate supply capacity, Punctual delivery time
ü Best after sales service are provided
After service
This product can be repair within one year for any defects or irregularities caused by the factory.

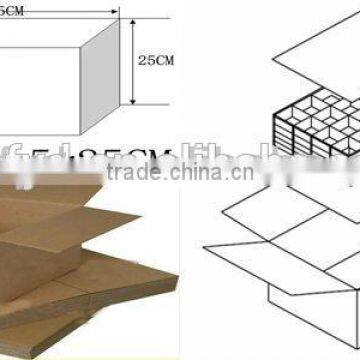

Packing
1.Inner package:PEbag,white box or as your demand
2.Outer package:Carton or according your requirement
| Inside package | PE bag |
| Package | 50 PCS/CT |
| Outer package | Carton |



Dear Sir or Madam ,
This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484
Looking forward to your any inquires !
