8 Cores GYXTY Unitube Optical Ber Cable Made in China

Name: 8 Cores GYXTY Unitube Optical Ber Cable Made in China
Brand: FRANKEVER
SKU: 113806535
Availability: InStock

Hangzhou Frankever Imp. & Exp. Co., Ltd.

US$ 0.1 - 100 MOQ: 100 Kilometers

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

FRANKEVER

Model Number:

GYXTY-8

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name FRANKEVER

Model Number GYXTY-8

Conductor Material Other, single mode optic fiber

Insulation Material PE

Jacket PE

Number of Conductors 8

Application Duct /Aerial

Specifications

8 Cores GYXTY Unitube optic fiber cable
1)Excellent quality (ISO9000:2001 approved). 2)Competitive price
OEM / ODM are welcome

Product Description

8 Cores GYXTY Unitube optic fiber cable

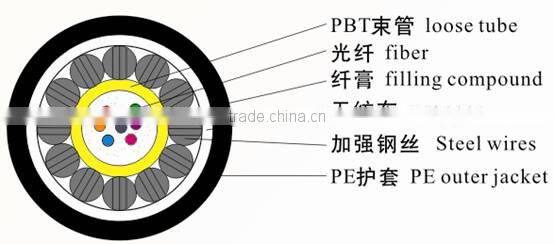

structure : PBT for the middle-casing filled with water blocking cable paste, packets around 12 (or 10 or eight) round wire strands uniform, non-woven fabrics, vertical-plus PE sheath.
quantity of fibers:2~12
Looae tube:2.0~3.0
Outer PE jacket:1.8~2.5
outer diameter(mm):7.5~8.8
approximated cable weight(kg/km):75
Laying mode:Duct, Aerial
operating temperature:-40°C~+60°C
Application:Long distance and interoffice communication
features:	1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.
	2.Compact, so that the cable is well-positioned to bending performance.
	3.Wire-side pressure Armored excellent performance, and a bullet-proof capability.
The main mechanical properties:		Allow tensile force(N)	short-term	1500
			long-term	600
		Allow squash Force(N/100mm)	short-term	1000
			long-term	300
		min bend radius(D:mm)	Static	10D
			Dynamic	20D
