FrankEver 2 Cores GYXTY Unitube optic fiber cable

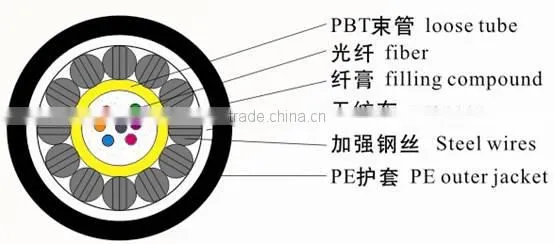

structure : PBT for the middle-casing filled with water blocking cable paste, packets around 12 (or 10 or eight) round wire strands uniform, non-woven fabrics, vertical-plus PE sheath. | ||||
quantity of fibers:2~12 | ||||
Looae tube:2.0~3.0 | ||||
Outer PE jacket:1.8~2.5 | ||||
outer diameter(mm):7.5~8.8 | ||||
approximated cable weight(kg/km):75 | ||||
Laying mode:Duct, Aerial | ||||
operating temperature:-40°C~+60°C | ||||
Application:Long distance and interoffice communication | ||||
features: | 1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties. | |||
2.Compact, so that the cable is well-positioned to bending performance. | ||||
3.Wire-side pressure Armored excellent performance, and a bullet-proof capability.
| ||||
The main mechanical properties: | Allow tensile force(N) | short-term | 1500 | |
long-term | 600 | |||
Allow squash Force(N/100mm) | short-term | 1000 | ||
long-term | 300 | |||
min bend radius(D:mm) | Static | 10D | ||
Dynamic | 20D | |||
Wooden drum
Certification:

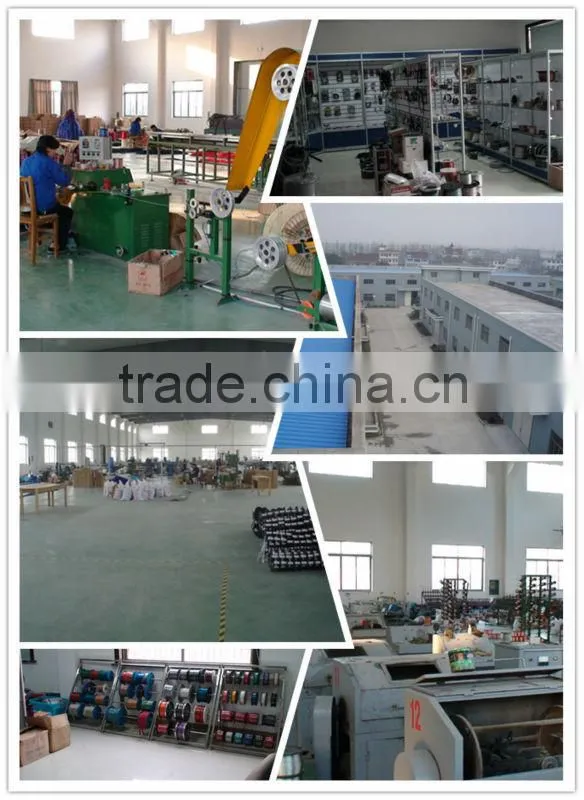

Factory introduction:
Our factory HAIYAN HUXI WIRE&CABLE CO.,LTD ,was found in 1995,we specialize in designing and manufacturing cable products for 18 years with good quality and pretty competitive price,Especially the CAR WIRING KITS,SPEAKER CABLE,RCA CABLE,HDMI CABLE etc.And we do OEM
for customers with reliable quality.More infos for our company,please link:
Question & Answer
1. What is your MOQ?
Generally,we make mass production based on MOQ1000PCS, since our sub-supplier ask
for 500pcs MOQ for blister. So if bulk package is ok for you, we can accpet lower order quantity.
2. How about your delivery date?
Normally our delivery date is about 25-30days after payment received.
3. Can you supply sample for custome
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.
4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
