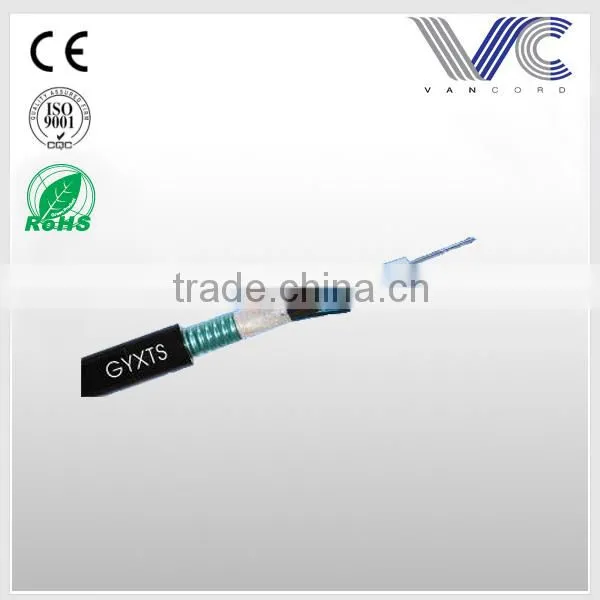

FrankEver 10 Cores GYXTS Unitube Fiber Optical Cable

Name: FrankEver 10 Cores GYXTS Unitube Fiber Optical Cable
Brand: FRANKEVER
SKU: 113806569
Availability: InStock

Hangzhou Frankever Imp. & Exp. Co., Ltd.

US$ 0.1 - 100 MOQ: 6 Kilometers

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

FRANKEVER

Model Number:

GYXTS-10

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name FRANKEVER

Model Number GYXTS-10

Conductor Material Other, single mode optic fiber

Insulation Material PE

Jacket PE

Number of Conductors 10

Application Duct /Aerial

Product Description

FrankEver 10 Cores Fiber Optical Cable GYXTS Unitube Optic Fiber Cable

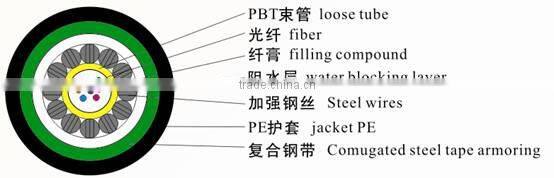

structure : PBT for the middle-casing filled with water blocking cable paste, packets around 12 (or 10 or 8) uniform circular wire strands, outsourcing Steel – bonded(PSP) polyethylene sheath.
quantity of fibers:2~12
Looae tube:2.0~3.0
Outer PE jacket:1.8~2.5
outer diameter(mm):10.5
approximated cable weight(kg/km):110
Laying mode:Duct, Aerial
operating temperature:-40°C~+60°C
Application:Long distance and interoffice communication
features	1.Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.
	2.Compact, so that the cable is well-positioned to bending performance.
	3.Wire-side pressure Armored excellent performance, and a bullet-proof capability.
	4. Double coated strip tide, and has lateral pressure.
The main mechanical properties:		Allow tensile force(N)	short-term	1500
			long-term	600
		Allow squash Force(N/100mm)	short-term	1000
			long-term	300
		min bend radiusD:mm)	Static	10D
			Dynamic	20D
