Specifications
small centrifugal pump,stainless steel pump1. stainless steel pump body
2. copper wire, SS420 shaft
3. thermal protector

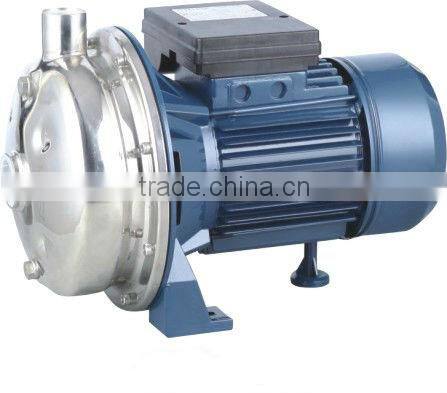

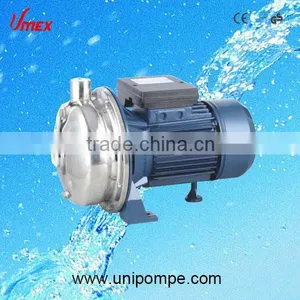

SCM-ST Top quality Electric small Centrifugal pumps, stainless steel pump
RANGE OF PERFORMANCE
8Flow rate up to 190 l/min (11.4 m3/h)
8Head up to 34m
LIMITS OF USE
8Manometric suction lift up to 9m
8Liquid temperature up to +60°C
8Environment temperature up to +40°C
INSTALLATION AND USE
8These pumps are suitable for handling clean water without abrasive particles and liquids that are
chemically non-aggressive to the pump
components. Reliable, economical and
simple to use, they are suitable for
domestic use and in particular for distributing
water in combination with small pressure sets,
for irrigating gardens. The pumps must be
installed in a covered area, protected against the inclement weather.
MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B/Class F
8Protection grade IP44/IP54
MATERIALS
8Pump body: Stainless Steel
8Motor support: Cast iron
8Motor housing: Aluminum
8Impeller: Stainless Steel
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite/Stainlesss Steel
8Bearing: NSK, C&U, or local quality.
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.FLOW |
MAX.HEAD |
INLET/OUTLET |
MAX.SUCT |
N.W |
PACKING DIMENSION |
||
1Phase |
3 Phase |
(Kw) |
(Hp) |
(L/min) |
(m) |
(Inch) |
(m) |
(K.g) |
(mm) |
SCM-18ST |
SC-18ST |
0.37 |
0.5 |
110 |
18 |
1 1/4"*1" |
9 |
12.0 |
390*220*270 |
SCM-20ST |
SC-20ST |
0.55 |
0.75 |
130 |
20 |
1 1/4"*1" |
9 |
12.5 |
390*220*270 |
SCM-26ST |
SC-26ST |
0.75 |
1.00 |
145 |
26 |
1 1/4"*1" |
9 |
13.5 |
390*220*270 |
SCM-34ST |
SC-34ST |
1.10 |
1.50 |
190 |
34 |
1 1/4"*1" |
9 |
24.0 |
400*260*330 |
8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
Production Process Scheme:
