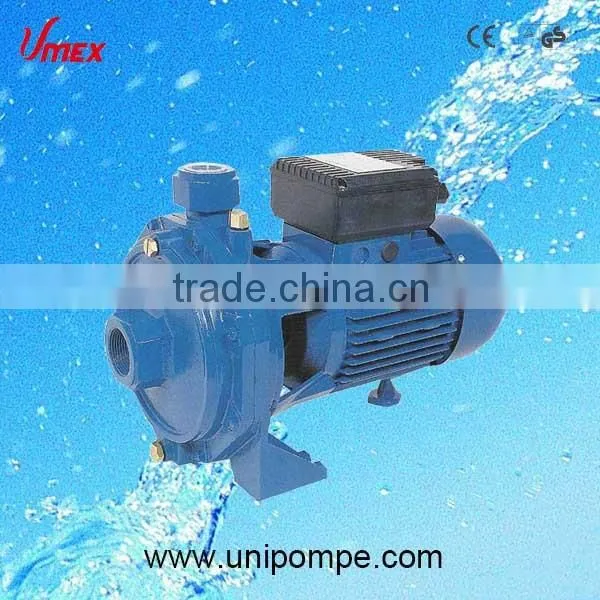

centrifugal irrigation pump double impeller centrifugal water pump

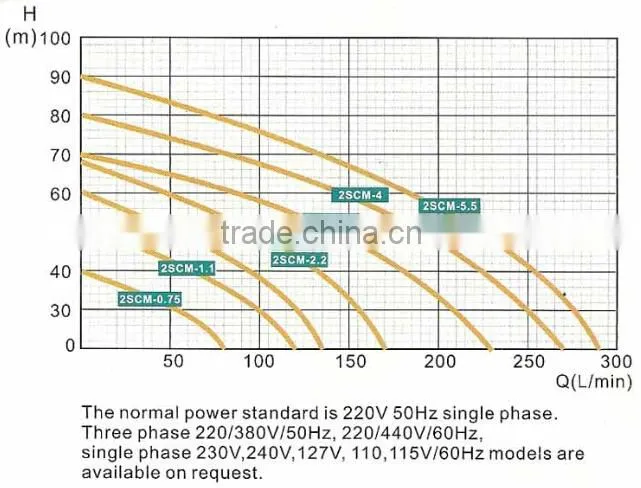

RANGE OF PERFORMANCE
8Flow rate up to 290 l/min
8Head up to 90m
LIMITS OF USE
8Manometric suction lift up to 9m
8Liquid temperature up to +60°C
8Environment temperature up to +40°C
Description
MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B / F
8Protection grade IP44 / IP54
8Closed, externally ventilated
MATERIALS
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum
8Impeller: Brass / Aluminum / Noryl
8Shaft with rotor: 45# steel or stainless steel
8Mechanical seal: carbon steel or stainless steel
8Bearing: NSK, C&U, or local quality.
WARRANTY: 1 YEAR (according to our general sales conditions)
Production Process Scheme:
