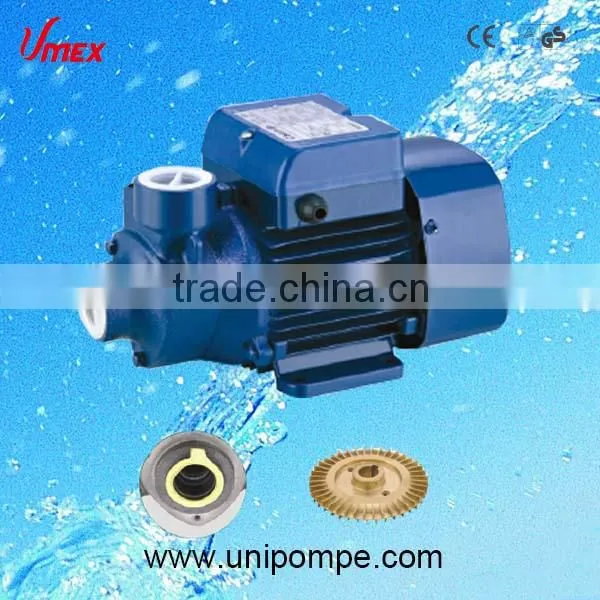

QTM series self-priming vibro pump
RANGE OF PERFORMANCE
8Flow rate up to 60 l/min (3 m3/h)
8Head up to 50m
LIMITS OF USE
8Manometric suction lift up to 8m
8Liquid temperature up to +35°C
8Environment temperature up to +40°C
INSTALLATION AND USE
8These pumps are used to transfer clean water or other liquids similar to water in physical and chemical properties.It's suitable for lifting water from the well,sprinkling irrigation in garden,pressure boosting of running water and supporting equipment etc.
MOTOR
8Motor with copper winding
8Insulation Class B or Class F
8Protection grade IP*4
MATERIALS
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum
8Impeller: Brass impeller with evenly arranged radial vanes
8Shaft with rotor: stainless steel welded shaft/45#steel be electroplated
8Mechanical seal: Ceramic/ Graphite
8Bearing: NSK, C&U, or local quality.
* Cooling: External ventilation
* Rust-free copper inserts prevent impeller's block when starting after the pump is unused for a long time.
Techanical Parameters:
MODEL |
POWER |
MAX.FLOW |
MAX.HEAD |
INLET/OUTLET |
MAX.SUCT |
G.W |
PACKING DIMENSION |
|
1 Phase |
(Kw) |
(Hp) |
(L/min) |
(m) |
(Inch) |
(m) |
(K.g) |
(mm) |
QTM60
|
0.37 |
0.5 |
35 |
35 |
1"*1" |
8 |
5.3 |
255*130*160 |
QTM70 |
0.55 |
0.75 |
50 |
45 |
1"*1" |
8 |
8.5 |
330*180*205 |
QTM80 |
0.75 |
1 |
60 |
50 |
1"*1" |
8 |
9.5 |
330*180*205 |
Production Process Scheme:
