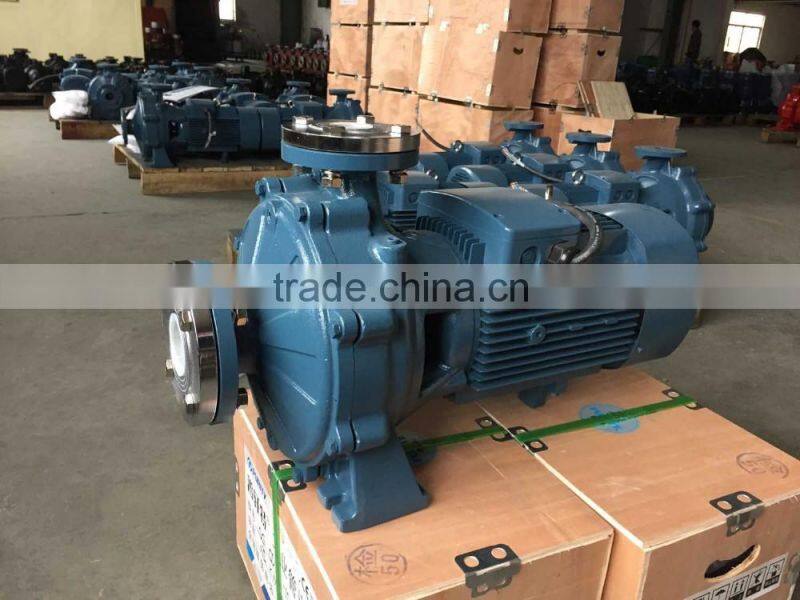

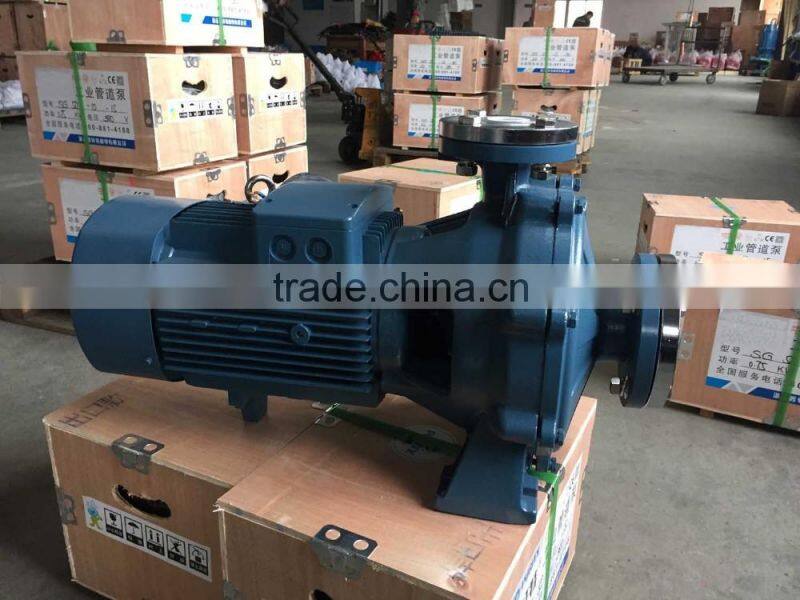

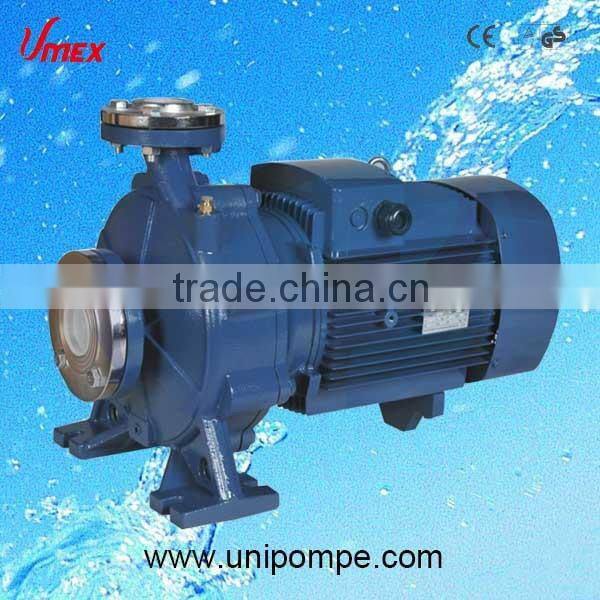

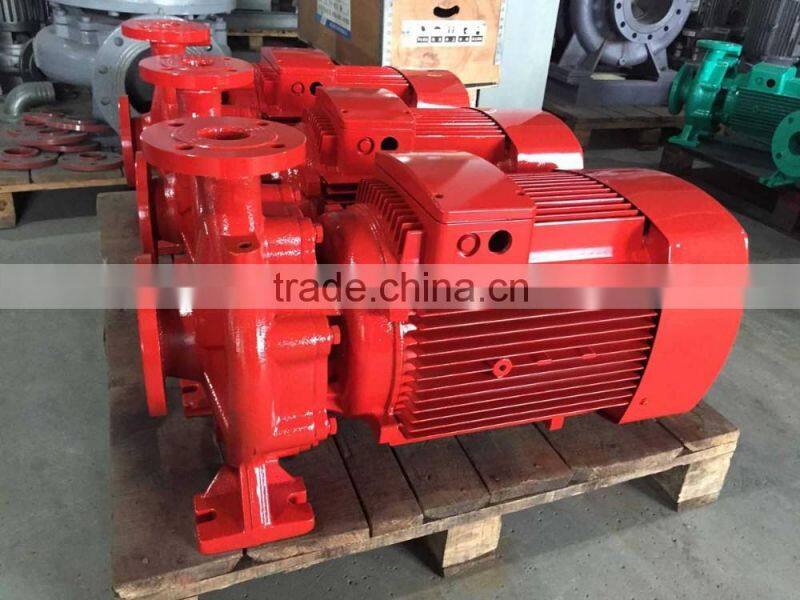

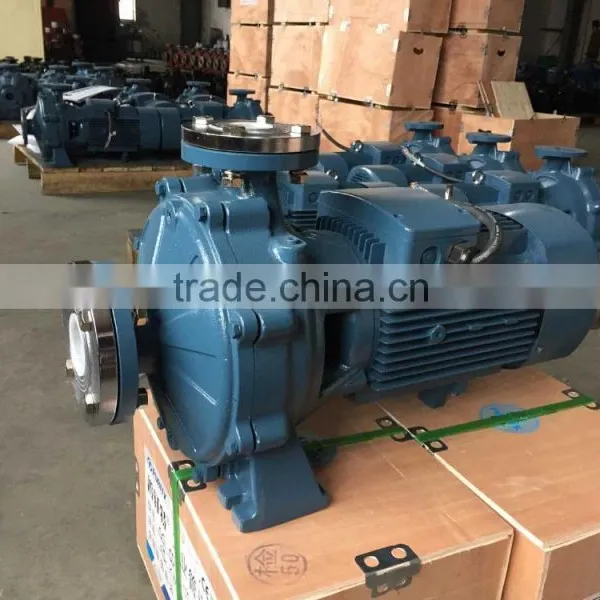

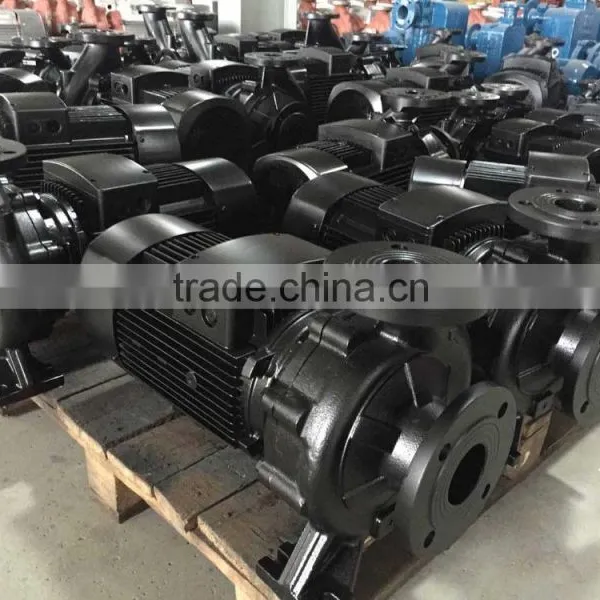

Big flow Agricultural standard monoblock centrifugal pump industrial water pump
RANGE OF PERFORMANCE
8Flow rate up to 1500 l/min (90 m3/h)
8Head up to 21m
8Power up to 55W
8Diameter up to 100mm
LIMITS OF USE
8Manometric suction lift up to 8m
8Liquid temperature between -10 °C and +120°C
8Environment temperature between -10 °C and +40°C
Application
1. For clean non-aggressive liquids without brasives
2. Water supply 3. Cleaning sets 4. Pressure boosting 5. Firefighting sets
6. Irrigation 7. Industrial applications 8. Water circulation in climatisation sets
9. Agricultural applications
MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B /F
8Protection grade IP44 /54
MATERIALS
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum
8Impeller: Brass / Stainless steel
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing: NSK, C&U, or local quality.
WARRANTY: 1 YEAR (according to our general sales conditions)
Performance Chart
32-125 series
32-160 Series
32-200 series
32-250 Series
