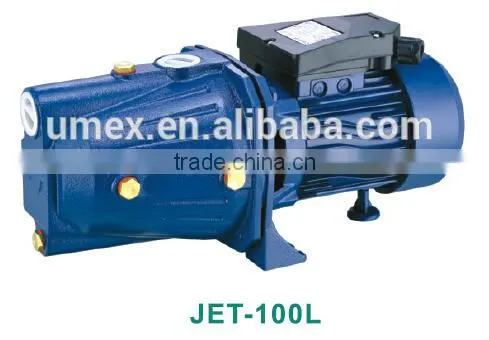

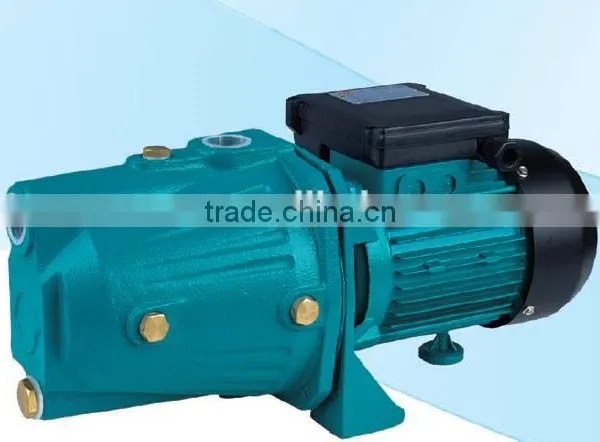

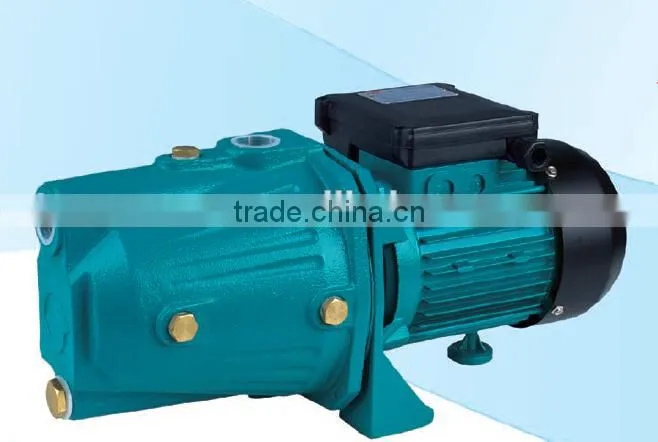

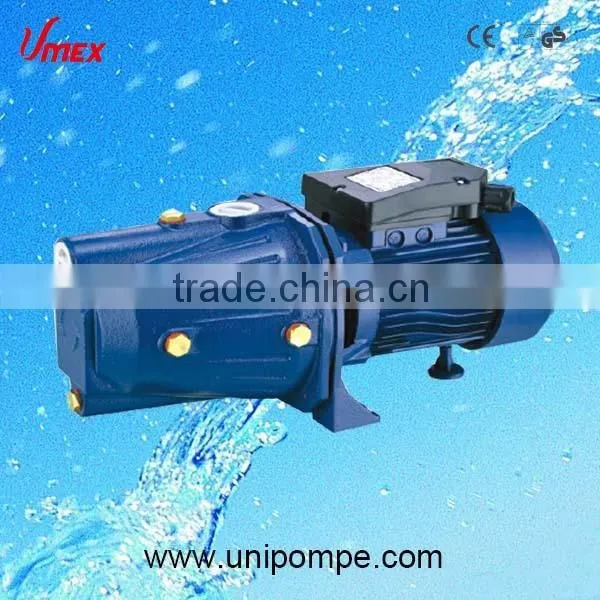

jet 100 water water jet pump price

 jet 100 water water jet pump price

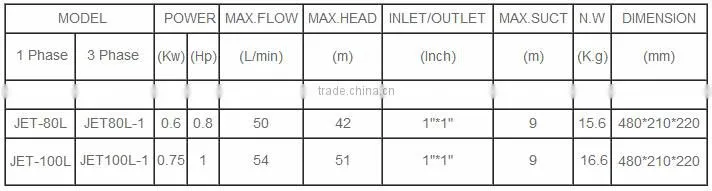

RANGE OF PERFORMANCE

1.Flow rate up to 54 l/min (3.2 m³/h)
2.Head up to 51m

LIMITS OF USE

1.Manometric suction lift up to 9m
2.Liquid temperature up to +60°C
3.Environment temperature up to +40°C

INSTALLATION AND USE

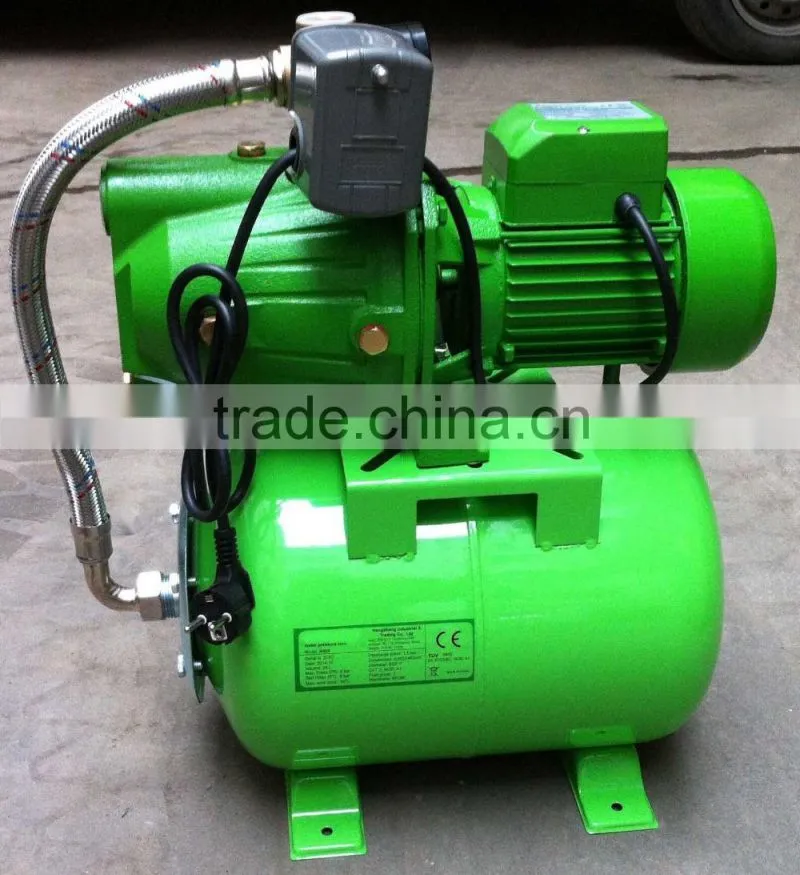

These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.

MOTOR
1.Two –pole induction motor (n=2850rpm)
2.Insulation Class B
3.Protection grade IP44

MATERIALS

1.Pump body: Cast iron WITH THREAD opening ISO 228/1

2.Motor support: Cast iron
3.Motor housing: Aluminum
4.Impeller: Brass/Stainless Steel/PPO
5.Shaft with rotor: Carbon steel or stainless steel
6.Mechanical seal: Ceramic/ Graphite
7.Bearing:  NSK, C&U, or local quality.

WARRANTY: 1 YEAR (according to our general sales conditions)

 Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.

Production Process Scheme:
