Self- priming jet water pump
RANGE OF PERFORMANCE
1.Flow rate up to 30 l/min
2.Head up to 100m
3. Max. suction: 35m
LIMITS OF USE
1.Manometric suction lift up to 35m
2.Liquid temperature up to +60°C
3.Environment temperature up to +40°C
INSTALLATION AND USE
These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.
MOTOR
1.Two –pole induction motor (n=2850rpm)
2.Insulation Class B
3.Protection grade IP44
MATERIALS
1.Pump body: Cast iron WITH THREAD opening ISO 228/1
2.Motor support: Cast iron
3.Motor housing: Aluminum
4.Impeller: Brass/Stainless Steel/PPO/ Noryl
5. Diffuser: PPO/ Noryl
5.Shaft with rotor: 45#steel or AISI 416stainless steel
6.Mechanical seal: Ceramic/ Carbon
7.Bearing: NSK, C&U, or local quality.

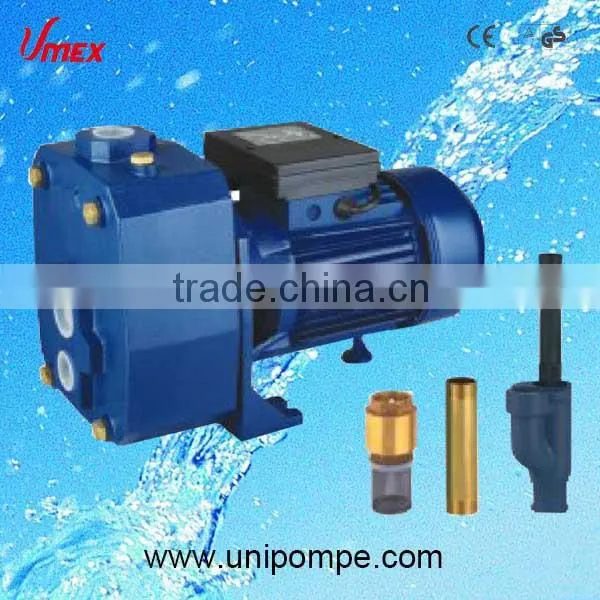

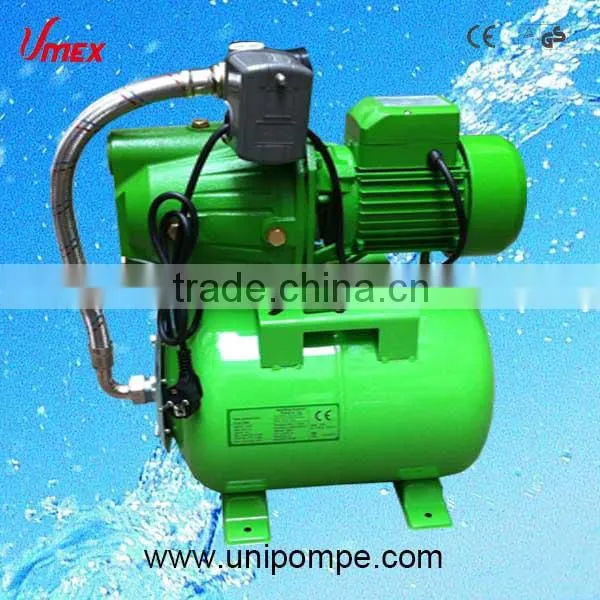

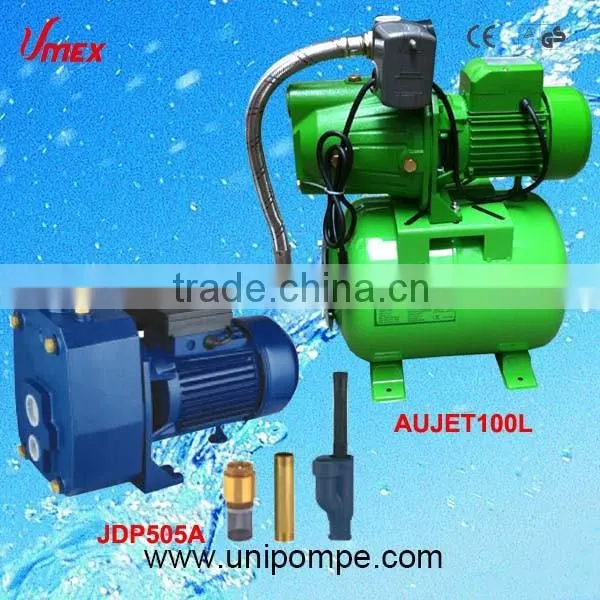

JDP505A AUJET-100L
| Model | Power | Max. flow | Max. head | Max. suction | Inlet/Outlet | G.W. | Dimension(mm) |
| JDP505A | 1.1Kw/1.5Hp | 40L/min | 100m | 30m | 1 1/4''×1''×1'' | 32.2kgs | 525×235×295 |
| JDP750A | 1.5Kw/2.0Hp | 30L/min | 120m | 40m | 1 1/4''×1''×1'' | 34kgs | 525×235×295 |
| AUJET60L/S | 0.37Kw/0.5Hp | 40L/min | 36m | 9m | 1''×1'' | 17.5kgs | 550×285×590 |
| AUJET80L/S | 0.55Kw/0.75Hp | 50L/min | 38m | 9m | 1''×1'' | 19kgs | 550×285×590 |
| AUJET100L/S | 0.75Kw/1.0Hp | 60L/min | 43m | 9m | 1''×1'' | 20kgs | 550×285×590 |

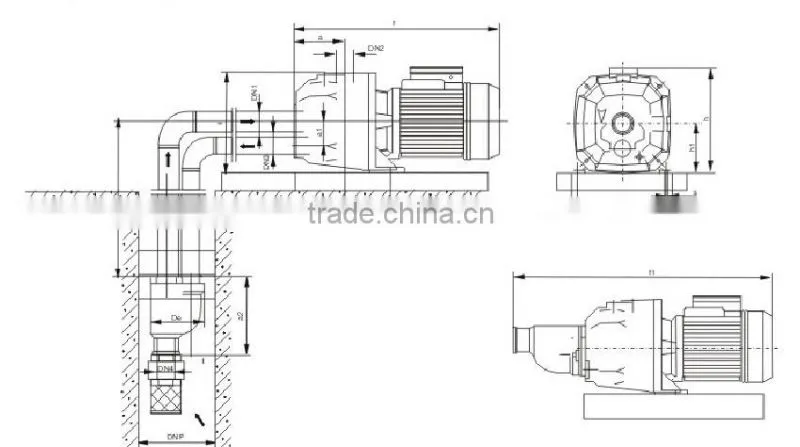

DNP:4''; DN1: 11/4''; DN2: 1''; DN3: 1''; DN4: 1''; De: 97mm
WARRANTY: 1 YEAR (according to our general sales conditions)
Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.

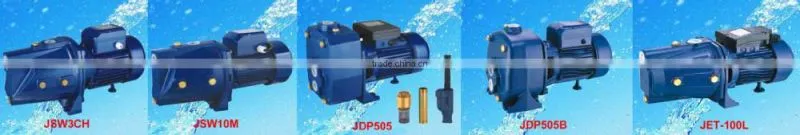

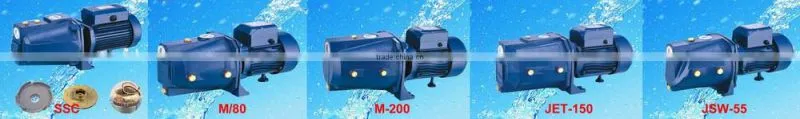

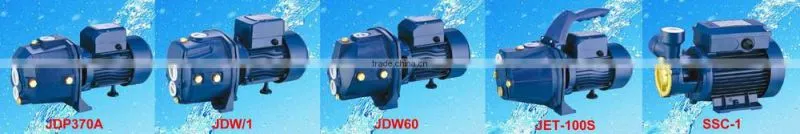

OTHER FIST JET PUMPS
Popular Jet Pumps
Small Jet Pumps
New Jet Pumps

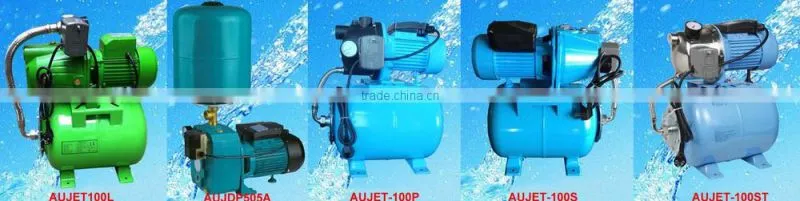

Automatic Booster Pumps
Production Process Scheme:
