V2200DF Submersible Sewage Pump With Cutting Function
- Ningbo or Shanghai
- T/T
You May Like
-
2013 Hot-sale Submersible Sewage Pump,sewage Pump With Open Impeller
-
QK Series New Design Sewage Submersible Pump ,Cutting Sewage Pumps
-
WQ Model Best Hot-sale Submersible Sewage Water Pump,sewage Pumps With Grinder System
-
NG Series New Design Sewage Submersible Pump ,Cutting Sewage Water Pumps
-
DRM Series New Design Sewage Submersible Pump ,dirty Water Pump
-
DRM Model Hot-sale Submersible Sewage Water Pump,submersible Dirty Water Pump
Product Details
| Place of Origin | Zhejiang, China | Brand Name | UNIPOMPE | |
| Model Number | V2200DF | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, electric | Pressure | High Pressure | |
| Application | Submersible |
Product Description

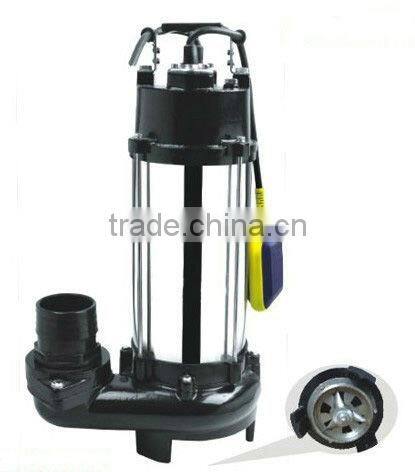

V2200DF Submersible sewage pump with cutting function

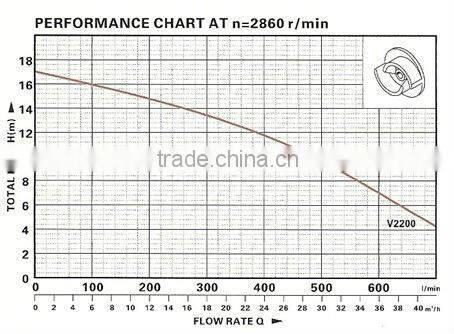

RANGE OF PERFORMANCE
8Flow rate: up to 700 L/min (42 m3/h)
8Head: up to 17 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 20mm

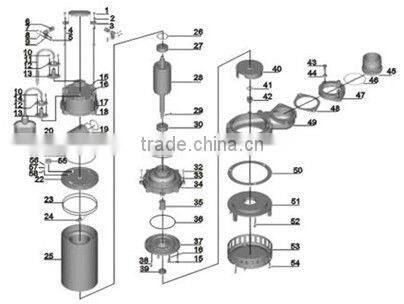

N. | DESCRIPTION | N. | DESCRIPTION | N. | DESCRIPTION | N. | DESCRIPTION |
1 | Bolt | 16 | "O" ring | 31 | "O" ring | 46 | "O" ring |
2 | Washer | 17 | Streching washer | 32 | Bolt | 47 | Connection nut |
3 | Handle | 18 | Capacitor cover | 33 | Washer | 48 | Rubber washer |
4 | Bolt | 19 | "O" ring | 34 | Connection part | 49 | Pump body |
5 | Nut | 20 | Capacitor | 35 | Mechanical seal | 50 | Rubber washer |
6 | Protector | 21 | "O" ring | 36 | "O" ring | 51 | Pump cover |
7 | Screw | 22 | Motor cover | 37 | Oil chamber cover | 52 | Screw |
8 | Washer | 23 | "O" ring | 38 | Screw | 53 | Filter mesh |
9 | Cable presser | 24 | Thermal protector | 39 | Oil seal | 54 | Bolt |
10 | Screw | 25 | Stator | 40 | Impeller | 55 | Line protector |
11 | Cable | 26 | Undulated washer | 41 | Washer | 56 | Screw |
12 | Flange | 27 | Bearing | 42 | Nut | 57 | Streching washer |
13 | Cable protector | 28 | Rotor | 43 | Bolt | 58 | Float switch |
14 | Float switch | 29 | Key | 44 | Washer |
|
|
15 | Bolt | 30 | Bearing | 45 | Out-let connector |
|
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL | Power | Outlet | Voltage | Max. Flow | Max. Head | Weight | 20' loading qty | |
(kw) | (Hp) | (mm) | (V/Hz) | (m3/h) | (m) | (kg) | (pcs) | |
V180(F) | 0.18 | 0.2 | 40 | 220/50 | 8 | 7 | 8.5 | 2230 |
V250(F) | 0.25 | 0.35 | 40 | 220/50 | 9 | 7.5 | 9.5 | 1860 |
V450(F) | 0.45 | 0.5 | 50 | 220/50 | 12 | 8.5 | 18.5 | 1210 |
V750(F) | 0.75 | 1 | 50 | 220/50 | 18 | 12 | 19.5 | 1090 |
V1100(F) | 1.1 | 1.5 | 50 | 220/50 | 20 | 9 | 23.5 | 840 |
V1500(F) | 1.5 | 2 | 40 | 220/50 | 16 | 22 | 26.5 | 630 |
V2200(F) | 2.2 | 3 | 75 | 220/50 | 42 | 17 | 33.5 | 630 |
V1100D(F) | 1.1 | 1.5 | 50 | 220/50 | 14 | 7 | 24.0 | 810 |
V1300D(F) | 1.3 | 1.8 | 50 | 220/50 | 18 | 12 | 25.5 | 670 |
V1800D(F) | 1.8 | 2.45 | 75 | 220/50 | 24 | 10 | 32.5 | 540 |
V2200D(F) | 2.2 | 3 | 75 | 220/50 | 31.2 | 10 | 31.5 | 535 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
