Help Center2013 Hot-sale Submersible Sewage Pump,sewage Pump With Open Impeller
Related Products
-
QK Series New Design Sewage Submersible Pump ,Cutting Sewage PumpsUS$ 10 - 35MOQ: 100 Units -
WQ Model Best Hot-sale Submersible Sewage Water Pump,sewage Pumps With Grinder SystemUS$ 50 - 100MOQ: 100 Pieces
-
NG Series New Design Sewage Submersible Pump ,Cutting Sewage Water PumpsUS$ 10 - 35MOQ: 100 Units
-
DRM Series New Design Sewage Submersible Pump ,dirty Water PumpUS$ 50 - 100MOQ: 100 Units
-
DRM Model Hot-sale Submersible Sewage Water Pump,submersible Dirty Water PumpUS$ 50 - 100MOQ: 100 Pieces
Specifications
Submersible sewage pump1. Open impeller, double seal
2. Cast iron pump, stainless steel motor casing
3. Water depth 5m

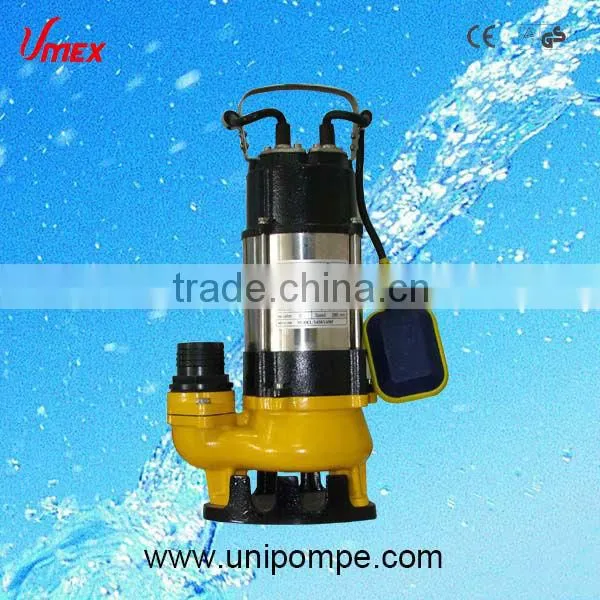

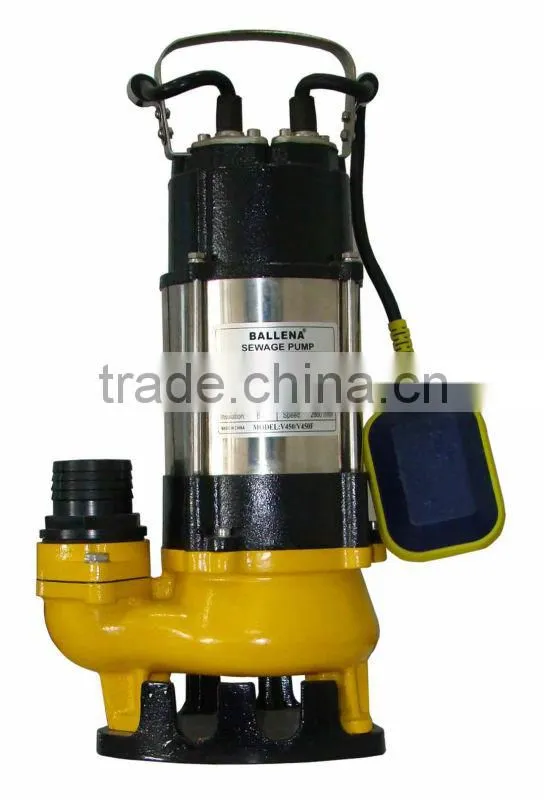

V450F Submersible Sewage Pump
Pump motor: 0.18kw - 2.2 kw
Max. flow: 6 ~ 42m3/h
Max. head: 7 ~ 22m
Working conditions
Fluid temperature up to 35°C
Maximum ambient temperature 40°C
Max particle: 15-35mm (dirty water)
Working principle
These pump series are submersible vortex pump for dirty pump, mainly for domestic use and industrial application. Their principle is a centrifugal pump with a retracted vortex impeller. A large size ring chamber with a threaded delivery opening is machined in the pump body and closed by a cover, housing the suction opening, which is shaped to prevent suspended solid over a certain size from entering the pump. Since the impeller is retracted with respected to the cover, water entering the front chamber lying between these two components makes a vortex motion and is pumped into the ring chamber, leaving the pump via the delivery opening.

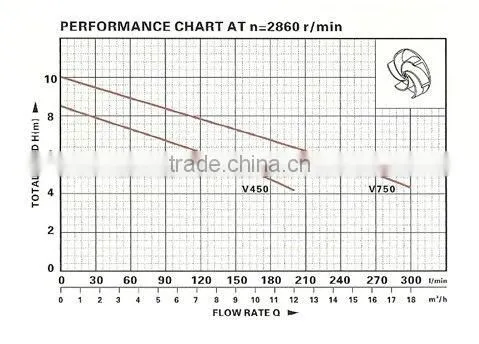

Performance table:
MODEL |
Power |
Outlet |
Voltage |
Max. Flow |
Max. Head |
Weight |
20' loading qty |
|
(kw) |
(Hp) |
(mm) |
(V/Hz) |
(m3/h) |
(m) |
(kg) |
(pcs) |
|
V180(F) |
0.18 |
0.2 |
40 |
220/50 |
8 |
7 |
8.5 |
2230 |
V250(F) |
0.25 |
0.35 |
40 |
220/50 |
9 |
7.5 |
9.5 |
1860 |
V450(F) |
0.45 |
0.5 |
50 |
220/50 |
12 |
8.5 |
18.5 |
1210 |
V750(F) |
0.75 |
1 |
50 |
220/50 |
18 |
12 |
19.5 |
1090 |
V1100(F) |
1.1 |
1.5 |
50 |
220/50 |
20 |
9 |
23.5 |
840 |
V1500(F) |
1.5 |
2 |
40 |
220/50 |
16 |
22 |
26.5 |
630 |
V2200(F) |
2.2 |
3 |
75 |
220/50 |
42 |
17 |
33.5 |
630 |
V1100D(F) |
1.1 |
1.5 |
50 |
220/50 |
14 |
7 |
24.0 |
810 |
V1300D(F) |
1.3 |
1.8 |
50 |
220/50 |
18 |
12 |
25.5 |
670 |
V1800D(F) |
1.8 |
2.45 |
75 |
220/50 |
24 |
10 |
32.5 |
540 |
V2200D(F) |
2.2 |
3 |
75 |
220/50 |
31.2 |
10 |
31.5 |
535 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
