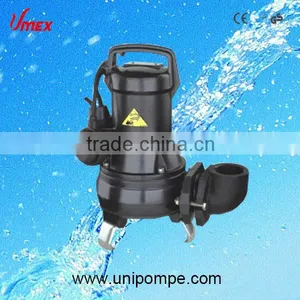

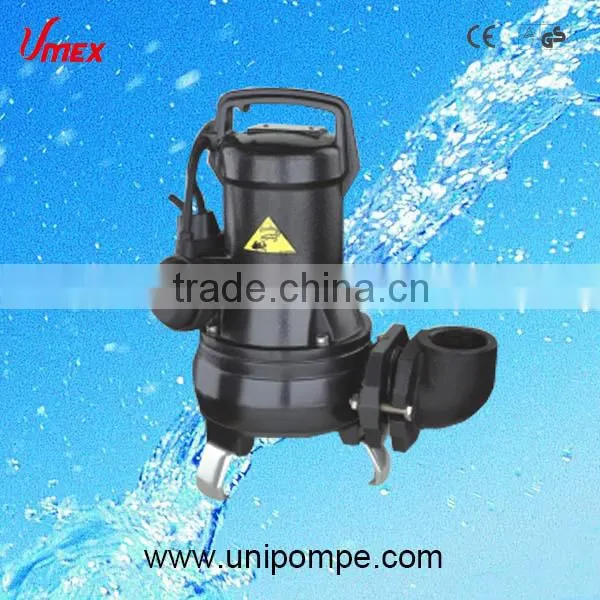

DRM series New design sewage submersible pump ,dirty water pump

Specifications

1,sewage pumps
2,pump body:cast iron
3,casting iron impeller
4,insulation:class
4, IP68 protection

NG series New design sewage submersible pump ,Cutting sewage water pumps

Specifications

submersible sewage pump
1. high efficiency with cutting system
2. Rated flow 10 m3/h
3.1 year guarantee



RANGE OF PERFORMANCE
* rated flow: 10 m3/h
* rated Head: 10 m



LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 15mm

MATERIALS:

Pump body: cast iron

Impeller:cast iron

Mechanical seal: stainless steel/ Carbon-ceramic

Shaft: 45# steel or stainless steel

Bearing: SKF/MTN/NSK/China

MOTOR

Protection Class:IP68

Insulation:class F

Three phase motor: protection devices requires users to intall by themselves

Single Phase motor: Over heat protector and capacitor are built in.



Model	Power	Max. flow	Max. head
1 phase/3 phase	KW	m3/h	m
DRM-200T	0.8	18	8.1
DRM-200	1.1	24	10.8
DRM-201	1.4	27	12.7
DRM-202	1.6	30	14.5
DRM-300	1.2	30	7.1
DRM-301	1.5	36	9.2
DRM-302	1.8	39	11
