Specifications
Multistage submersible pumpmulti impeller
high head up to 77m
water depth max. 5m
with float switch
SPA SERIES MULTI-STAGE SUBMERSIBLE PUMP
RANGE OF PERFORMANCE
8Flow rate up to 120 L/min (7.2 m3/h)
8Head up to 77 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 2 mm

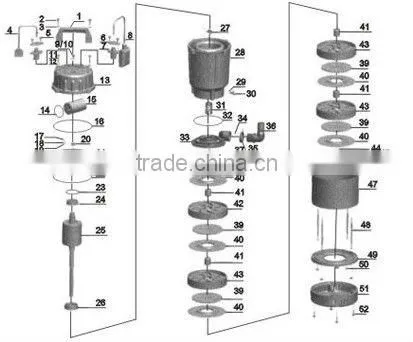

N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Handle |
16 |
"O" ring |
31 |
Mechanical seal |
46 |
Bolt |
2 |
Screw |
17 |
Screw |
32 |
"O" ring |
47 |
Machine canister |
3 |
Washer |
18 |
Spring washer |
33 |
Connection part |
48 |
Bilateral bolt |
4 |
Cable |
19 |
Washer |
34 |
"O" ring |
49 |
Base plate |
5 |
Screw |
20 |
Line protector |
35 |
Connection nut |
50 |
Nut |
6 |
Flange |
21 |
Cover |
36 |
Out-let connector |
51 |
Filter mesh |
7 |
Cable protector |
22 |
"O" ring |
37 |
Screw |
52 |
Screw |
8 |
Float switch |
23 |
Undulated washer |
38 |
Oil seal |
53 |
|
9 |
Screw |
24 |
Bearing |
39 |
Impeller |
54 |
|
10 |
"O" ring |
25 |
Rotor |
40 |
Guide leaf cover |
55 |
|
11 |
Bolt |
26 |
Bearing |
41 |
Shaft sleeve I |
56 |
|
12 |
Washer |
27 |
Thermal protector |
42 |
Upper guide leaf |
57 |
|
13 |
Capacitor cover |
28 |
Stator |
43 |
Lower guide leaf |
58 |
|
14 |
"O" ring |
29 |
"O" ring |
44 |
Washer |
59 |
|
15 |
"Capacitor |
30 |
Bolt |
45 |
Shaft sleeve II |
60 |
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
CABLE |
G.W |
PACKING DIMENSION |
20‘ QUANTITY
|
|
(Kw) |
(m) |
(L/min) |
(mm) |
(m) |
(K.g) |
(cm) |
|
5SPA-900F |
0.9 |
53 |
120 |
25 |
12 |
14.5 |
52.5X25X20 |
1050 |
6SPA-1100F |
1.1 |
65 |
120 |
25 |
12 |
16 |
55X25X20 |
1000 |
7SPA-1300F |
1.3 |
77 |
120 |
25 |
12 |
17.5 |
57.5X25X20 |
940 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 220V/60Hz are available on request.
