Specifications

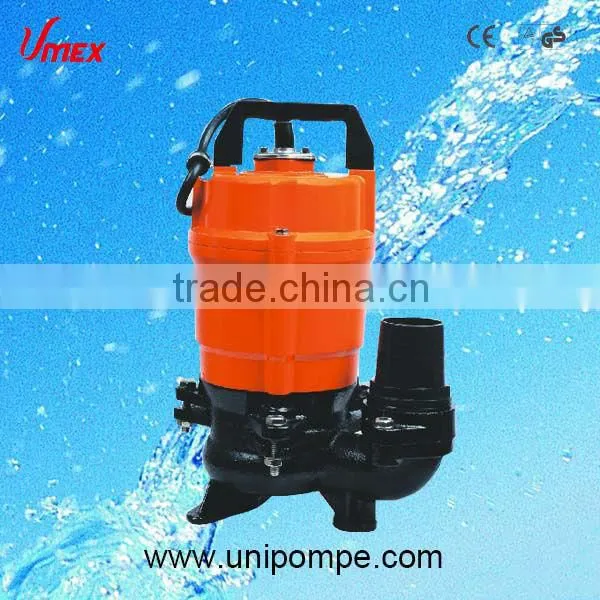

New type of Submersible Sewage Pumpcast iron pump body
vortex impeller
max capacity 14 m3/h
V(WQ)MODEL Cast Iron sewage pump,
electric submersible pump with vortex impeller

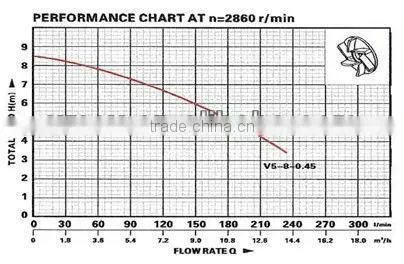

RANGE OF PERFORMANCE
8Flow rate: up to 233 L/min (14 m3/h)
8Head: up to 8.5 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 15mm

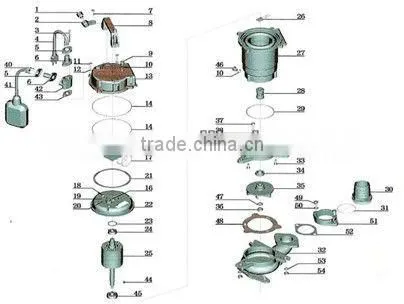

N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Protector |
16 |
Line protector |
31 |
"O" ring |
46 |
Bolt |
2 |
Cable presser |
17 |
"O" ring |
32 |
Pump body |
47 |
Washer |
3 |
Screw |
18 |
Screw |
33 |
Screw |
48 |
Rubber washer |
4 |
Cable |
19 |
Stretching washer |
34 |
Oil seal |
49 |
Bolt |
5 |
Flange |
20 |
Washer |
35 |
Impeller |
50 |
Washer |
6 |
Cable protector |
21 |
Rubber washer |
36 |
Nut |
51 |
Connection nut |
7 |
Screw |
22 |
Motor cover |
37 |
Bolt |
52 |
Rubber washer |
8 |
Handle |
23 |
Undulated washer |
38 |
Washer |
53 |
Washer |
9 |
Screw |
24 |
Ball bearing |
39 |
Connection part |
54 |
Nut |
10 |
"O" ring |
25 |
Rotor |
40 |
Screw |
55 |
|
11 |
Bolt |
26 |
Thermal protector |
41 |
Float switch |
56 |
|
12 |
Washer |
27 |
Motor stator |
42 |
Tees |
57 |
|
13 |
Capacitor cover |
28 |
Mechanical seal |
43 |
Rubber washer |
58 |
|
14 |
"O" ring |
29 |
"O" ring |
44 |
Key |
59 |
|
15 |
Capacitor |
30 |
Out-let connector |
45 |
Ball bearing |
60 |
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
MAX.DIA |
G.W |
PACKING DIMENSION |
20‘ QUANTITY
|
(w) |
(m) |
(l/min) |
(mm) |
(mm) |
(K.g) |
(cm) |
pcs |
|
V5-8 |
450 |
8.5 |
233 |
50 |
15 |
11 |
25X22X36 |
810 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
PRODUCTION PROCESS SCHEME
