Specifications
centrifugal Submersible pump,clean water pumpStainless Steel Pump casing
multistage (5 or 8) impeller
Power 2.2 KW

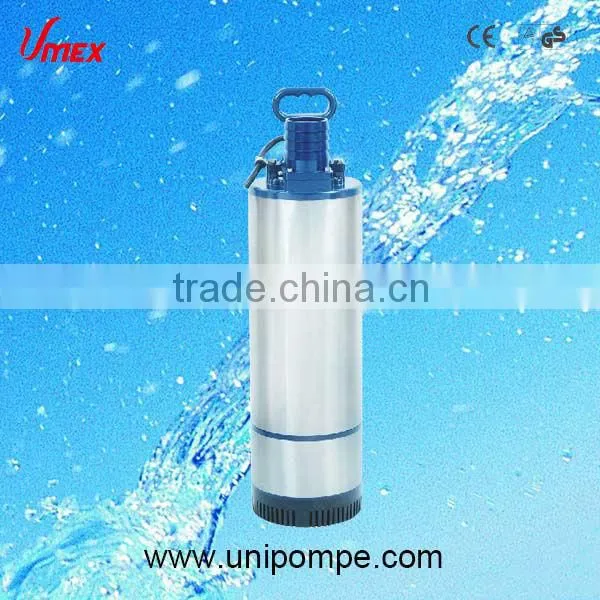

SPS SERIES CENTRIFUGAL SUBMERSIBLE PUMP,CLEAN WATER PUMP
RANGE OF PERFORMANCE
8Flow rate: up to 333 L/min (19.98 m3/h)
8Head: up to 64 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 2 mm
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Screw |
16 |
"O" ring |
31 |
Thermal protector |
46 |
shaft sleeve 1 |
2 |
Flange |
17 |
Motor shell |
32 |
Motor stator |
47 |
Pump cap |
3 |
Cable |
18 |
Seal ring |
33 |
Undulated washer |
48 |
Pump cover |
4 |
Cable protector |
19 |
capacitor cover |
34 |
Ball bearing |
49 |
Nut |
5 |
Protector |
20 |
Bolt |
35 |
Rotor |
50 |
Bolt |
6 |
Cable presser |
21 |
Stretching washer |
36 |
Key |
51 |
Shaft sleeve 2 |
7 |
Bolt |
22 |
"O" ring |
37 |
Ball bearing |
52 |
Bolt |
8 |
Screw |
23 |
Capacitor |
38 |
Mechanical seal |
53 |
Filter mesh |
9 |
Screw |
24 |
"O" ring |
39 |
Lower bearing bracket |
54 |
Bolt |
10 |
"O" ring |
25 |
Line protector |
40 |
"O" ring |
55 |
|
11 |
Handle |
26 |
Screw |
41 |
Connection part |
56 |
|
12 |
Outlet connector |
27 |
Stretching washer |
42 |
Oil seal |
57 |
|
13 |
Screw |
28 |
Washer |
43 |
Guide leaf |
58 |
|
14 |
"O" ring |
29 |
Upper bearing bracket |
44 |
"O" ring |
59 |
|
15 |
Motor cover |
30 |
"O" ring |
45 |
Impeller |
60 |
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
CABLE |
G.W |
PACKING DIMENSION |
20‘ QUANTITY
|
(kw) |
(m) |
(l/min) |
(mm) |
(m) |
(K.g) |
(cm) |
pcs |
|
SPS8-40/3-2.2 |
2.2 |
44 |
333 |
75 |
10 |
31 |
75X20.5X20.5 |
850 |
SPS5-60/4-2.2 |
2.2 |
64 |
166 |
50 |
10 |
30.5 |
71.5X20.5X20.5 |
850 |
8220V/50Hz, 240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.

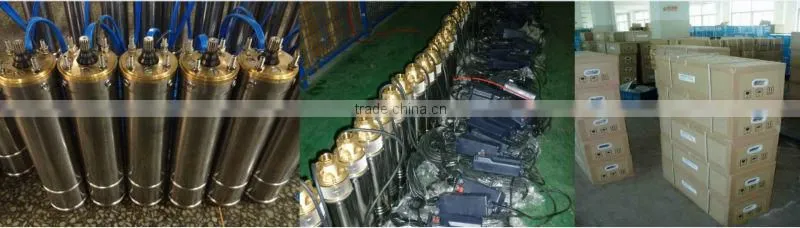

PRODUCTION PROCESS SCHEME
