Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > WQD16-6 Submersible Vortex Pump, Sewage Pumps

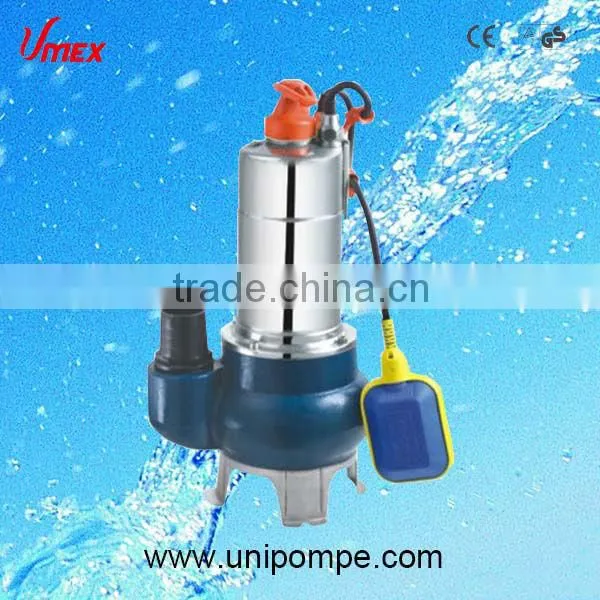

WQD16-6 Submersible Vortex Pump, Sewage Pumps

Name: WQD16-6 Submersible Vortex Pump, Sewage Pumps
Brand: BALLENA,UNIPOMPE
SKU: 113797709
Availability: InStock

WQD16-6 Submersible Vortex Pump, Sewage Pumps thumbnail-1

WQD16-6 Submersible Vortex Pump, Sewage Pumps photo-1

US$ 50 - 150 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

BALLENA,UNIPOMPE

Model Number:

WQD16-6

Contact Supplier Request Quote Chat Now

Umex (Ningbo) Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name BALLENA,UNIPOMPE

Model Number WQD16-6

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, electric

Pressure High Pressure

Application Sewage

Specifications

submersible vortex pump
stainless steel motor casing
vortex impeller
power 0.75kw-1.1kw
capacity 24 m3/h

WQD MODEL SUBMERSIBLE VORTEX PUMP,SEWAGE PUMPS

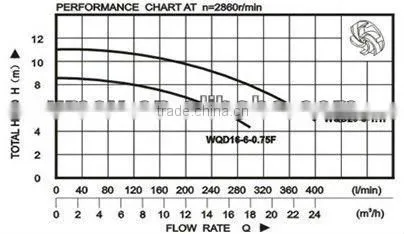

RANGE OF PERFORMANCE
8Flow rate: up to 400 L/min (24 m3/h)
8Head: up to 11 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 40mm

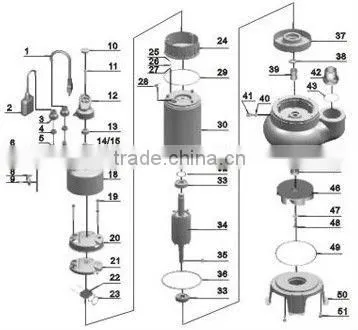

N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION
1	Cable	16	Screw	31	Screw	46	Impeller
2	Float switch	17	"O" ring	32	Undulated washer	47	Washer
3	Nut	18	Outer cover	33	Bearing	48	Bolt
4	Word ring	19	Screw	34	Rotor	49	"O" ring
5	Cable protector	20	Inner cover	35	Key	50	Base plate
6	Protector	21	Capacitor cover	36	"O" ring	51	Screw
7	Groove	22	Capacitor	37	Connection part
8	Sliding block	23	"O" ring	38	Oil seal
9	Screw	24	Capacitor holder	39	Mechanical seal
10	Handle cover	25	Nut	40	Oil seal
11	Screw	26	Spring washer	41	Screw
12	Handle	27	Washer	42	Out-let connector
13	Buckle	28	Thermal protector	43	"O" ring
14	Bolt	29	"O" ring	44	Pump body
15	"O" ring	30	Stator	45	Oil seal

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL	POWER	MAX.HEAD	MAX.FLOW	OUTLET	Voltage	Max. Diameter	G.W	PACKING DIMENSION	20"QUANTITY
MODEL	(Kw)	(m)	(L/min)	(mm)	(V/Hz)	(mm)	(K.g)	(cm)	pcs
WQD16-6-0.75S	0.75	8.5	300	50	220/50	40	15.5	28x23x53	825
WQD20-8-1.1S	1.1	11	400	50	220/50	40	18	28x23x57	770
