Specifications
plastic electrical submersible pumpsewage water pump
max. capacity 4.5 m3/h
Head: up to 7 m

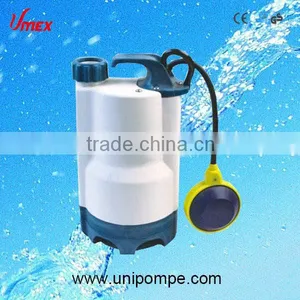

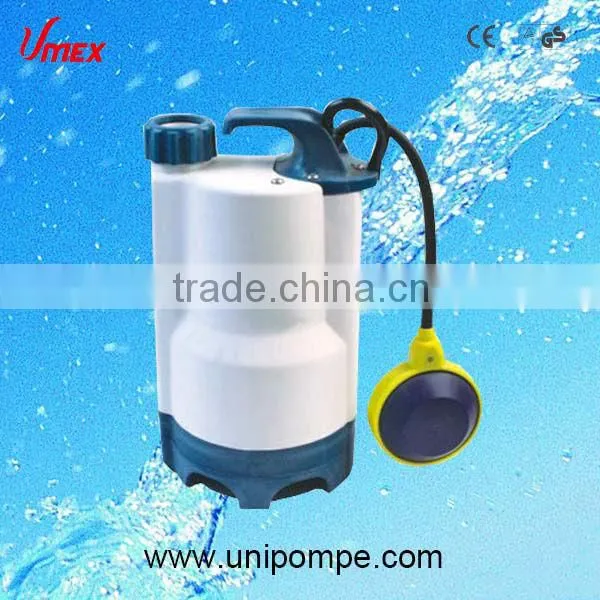

Best Selling VP370F plastic submersible pump,electrical submersible pump,sewage water pump
RANGE OF PERFORMANCE
8Flow rate: up to 75 L/min (4.5 m3/h)
8Head: up to 7 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 20mm
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Cable |
13 |
"O" ring |
25 |
Thermal protector |
37 |
Seal ring |
2 |
Float switch |
14 |
Motor shell |
26 |
"O" ring |
38 |
Pump cover |
3 |
Screw |
15 |
Capacitor |
27 |
Stator |
39 |
Pump casing |
4 |
Cable protector |
16 |
Capacitor holder |
28 |
"O" ring |
40 |
Base plate |
5 |
Flange |
17 |
Screw |
29 |
Oil seal |
41 |
Screw |
6 |
Screw |
18 |
Screw |
30 |
Connection part |
42 |
|
7 |
Rubber washer |
19 |
Stretching washer |
31 |
Screw |
43 |
|
8 |
Screw |
20 |
Washer |
32 |
Screw |
44 |
|
9 |
Handle |
21 |
Motor cover |
33 |
Mechanical seal |
45 |
|
10 |
Connection nut |
22 |
Undulated washer |
34 |
Impeller |
46 |
|
11 |
Out-let connector |
23 |
Bearing |
35 |
Washer |
47 |
|
12 |
Screw |
24 |
Rotor |
36 |
Bolt |
48 |
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
Voltage |
Max.Diameter of |
G.W |
PACKING DIMENSION |
(Kw) |
(m) |
(L/min) |
(mm) |
(V/Hz) |
(mm) |
(K.g) |
(cm) |
|
VP-370F |
0.37 |
7 |
75 |
32 |
220/50 |
20 |
5.3 |
20X19X33 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
production process scheme
