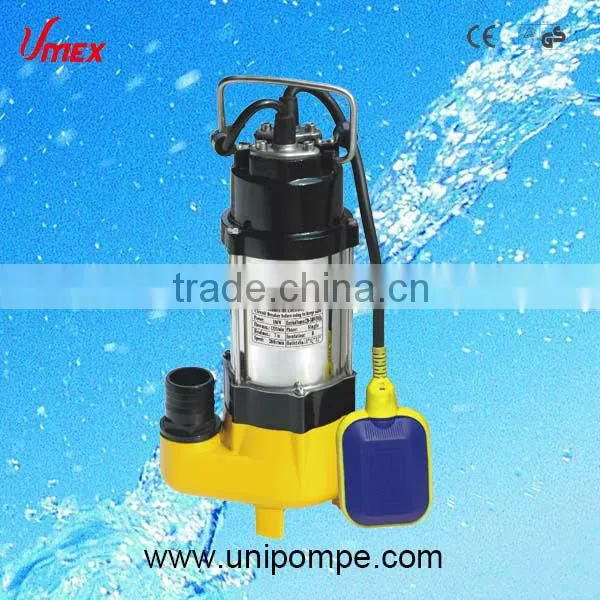

Top quality sewage pump submersible water pump

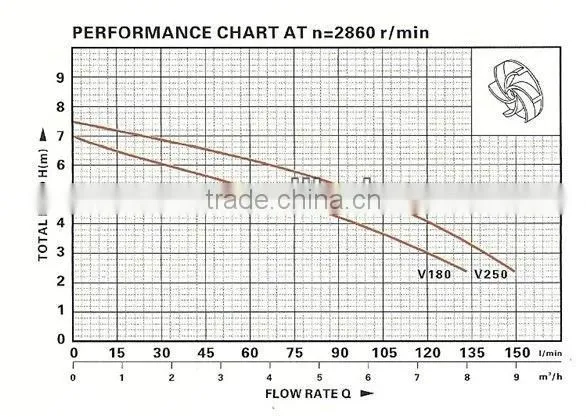

RANGE OF PERFORMANCE
8Flow rate: up to 150 L/min (9 m3/h)
8Head: up to 7.5 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 15mm

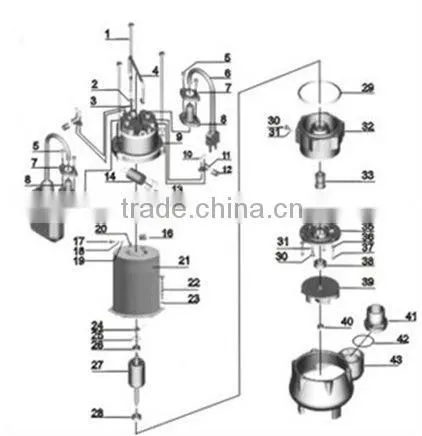

N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
N. |
DESCRIPTION |
1 |
Bolt |
13 |
"O" ring |
25 |
Undulated washer |
37 |
Screw |
2 |
Stretching washer |
14 |
Capacitor |
26 |
Bearing |
38 |
Oil seal |
3 |
Washer |
15 |
Rubber washer |
27 |
Rotor |
39 |
Impeller |
4 |
Handle |
16 |
Line protector |
28 |
Bearing |
40 |
Nut |
5 |
Screw |
17 |
Screw |
29 |
Rubber washer |
41 |
Out-let connector |
6 |
Cable |
18 |
Stretching washer |
30 |
Screw |
42 |
"O" ring |
7 |
Flange |
19 |
Washer |
31 |
"O" ring |
43 |
Pump body |
8 |
Cable protector |
20 |
Nut |
32 |
Connection part |
44 |
Float switch |
9 |
Capacitor cover |
21 |
Stator |
33 |
Mechanical seal |
45 |
|
10 |
Screw |
22 |
Screw |
34 |
"O" ring |
46 |
|
11 |
Cable presser |
23 |
Stretching washer |
35 |
Oil chamber cover |
47 |
|
12 |
Protector |
24 |
Thermal protector |
36 |
Washer |
48 |
|
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET |
CABLE |
G.W |
PACKING DIMENSION |
QTY/20GP |
(w) |
(m) |
(L/min) |
(mm) |
(m) |
(K.g) |
(cm) |
pcs |
|
V-180F |
180 |
7 |
133 |
40/32/25 |
5.3 |
9.0 |
18.5X18X36.5 |
2230 |
V-250F |
250 |
7.5 |
150 |
40/32/25 |
5.3 |
9.5 |
18.5X18X38.5 |
1860 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
Other submersible pump
