Specifications
1,submersible sewage cutter pump2,made of hard alloy and reliable protection device
3,casting iron impeller
4, IP68 protecti

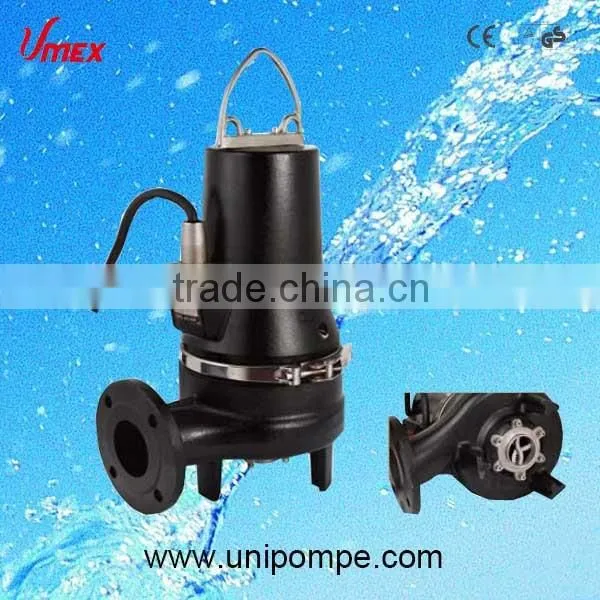

WQ MODEL submersible sewage cutter pump
Model Analysis
Specifications
submersible sewage cutter pump
1, Power cable: standard cord is 10m
2, Liquid Temperature: 40°c continuous
3, Motor: class B insulation, IP68 protection
4, Single Phase: Built-in thermal protector
5, Accessories: Float switch is available
RANGE OF PERFORMANCE
8Flow rate: up to 100m3/h
8Head: up to 15m
Materials
Pump casing: Plastic
Impeller: stainless steel vortex
Double-sided Mechanical Seal: Burna-N elastomers
Motor side Mechanical Seal:carbon VS silicon carbide
Pump side mechanical seal: silicon carbide VS silicon carbide
Shaft:45# steel or stainless steel
Bearing:SKF/NTN/China
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 35mm
8 Protection:IP68
General Characteristics
* Impeller with a grinder system
* Grinder system contain a revolving cutter and a plate withholes, sharpened edges that fine-chops filaments, preventing fouling of the impeller.

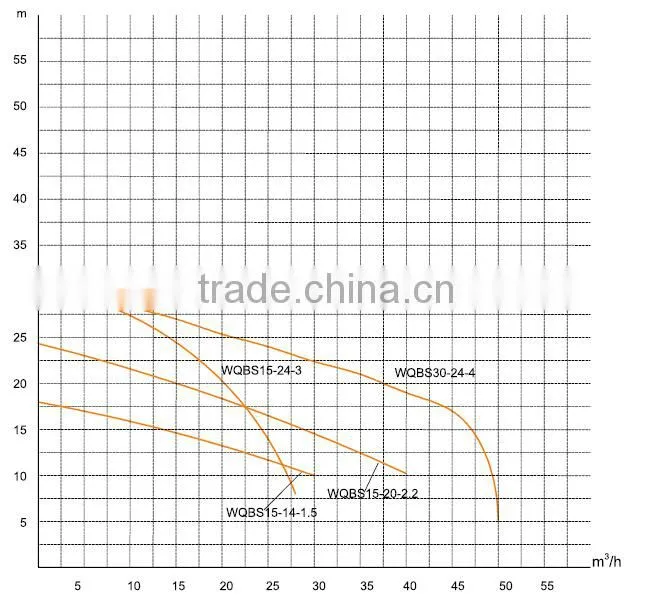

Performance Curve

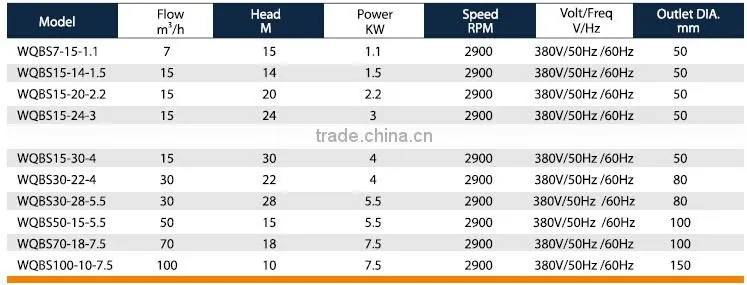

Performance Table
