Help CenterNew Design Float Switch Submersible Pump
Related Products
-
Submersible Water Pump With Stirring Cutting SystemUS$ 20 - 50MOQ: 100 Units -
New Design Sewage Submersible Pump ,submersible Sewage Cutter PumpUS$ 10 - 35MOQ: 100 Units
-
Cutting Submersible Pump With Grinder SystemUS$ 20 - 50MOQ: 100 Units
-
Professional Manufacturer of Sewage Pump Stainless Steel Centrifugal Submersible PumpUS$ 30 - 100MOQ: 100 Pieces
-
Cost-effective VP220F Model Float Switch Submersible Sewage Pump,plastic Sewage PumpUS$ 15 - 50MOQ: 100 Pieces
Specifications
1,float switch submersible pump2,made of hard alloy and reliable protection device
3,casting iron impeller
4, IP68

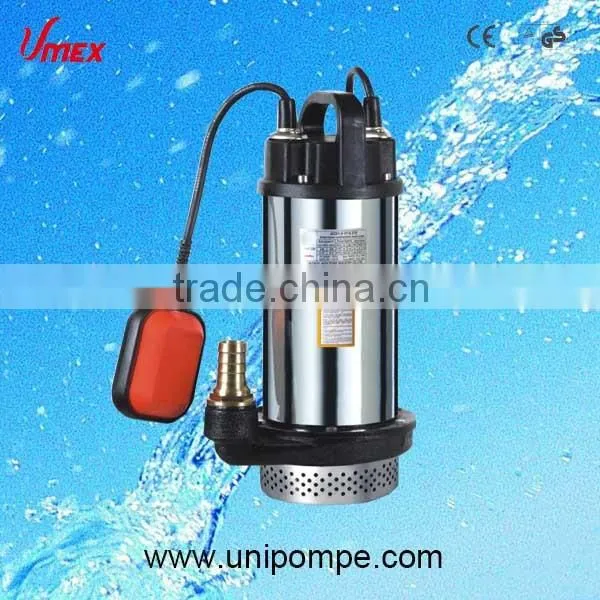

New design float switch submersible pump
Specifications
1, Power cable: standard cord is 10m
2, Liquid Temperature: 40°c continuous
3, Motor: class B insulation, IP68 protection
4, Single Phase: Built-in thermal protector
5, Accessories: Float switch is available
RANGE OF PERFORMANCE
8Flow rate: up to 10m3/h
8Head: up to 15m
Materials
Pump casing: Cast Iron
Impeller: stainless steel vortex
Double-sided Mechanical Seal: Burna-N elastomers
Motor side Mechanical Seal:carbon VS silicon carbide
Pump side mechanical seal: silicon carbide VS silicon carbide
Shaft:45# steel or stainless steel
Bearing:SKF/NTN/China
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 10mm
8 Protection:IP68
Performance Curve

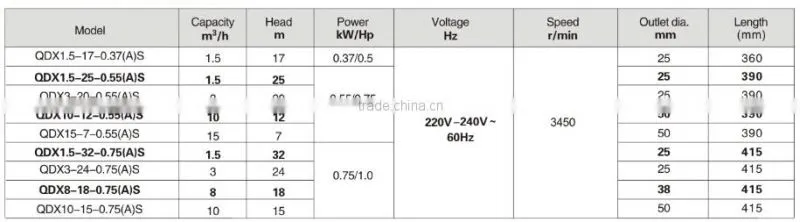

Performance Table
