Top quality sewage pump submersible pump
- 5000 Piece / Pieces per Month
- Ningbo or shanghai
- T/T
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | UNIPOMPE | Model Number: | V16-9-0.45-FX |
| Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric |
| Pressure: | High Pressure | Application: | Sewage |
Product Description

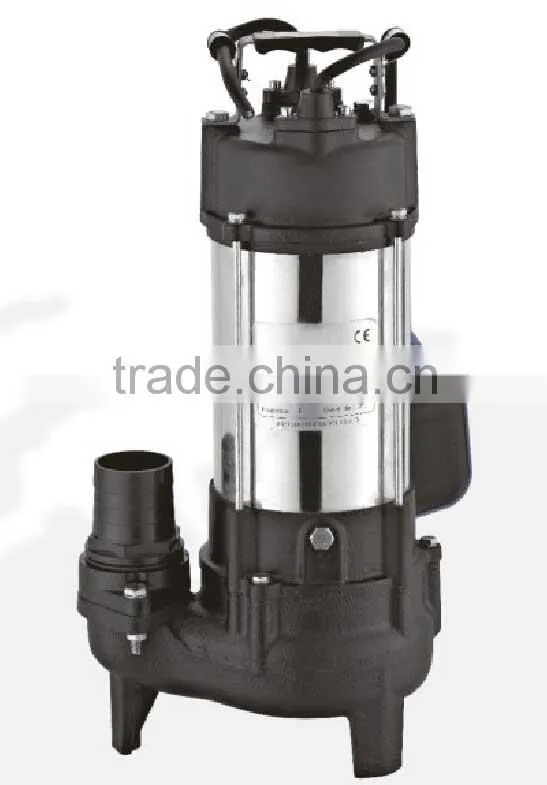

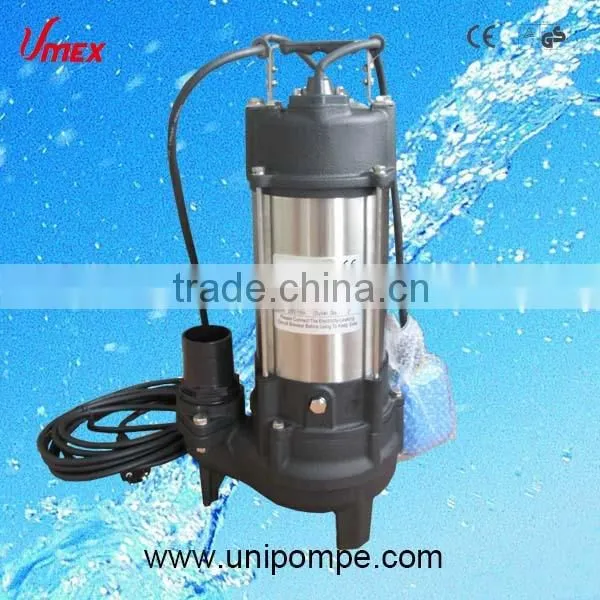

Top quality sewage pump submersible pump

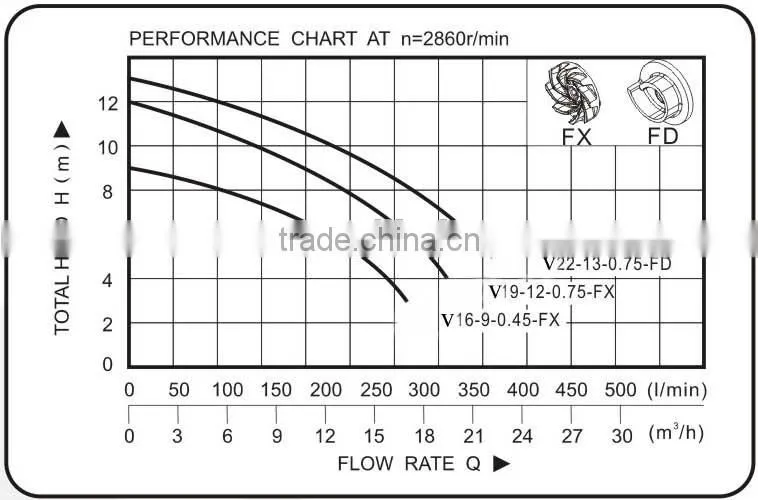

RANGE OF PERFORMANCE
8Flow rate: up to 266 L/min (16 m3/h)
8Head: up to 9 m
LIMITS OF USE
8Maximum immersion depth:5m
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 30mm or 20mm
Motor
Copper winding
Built-in thermal protector
Stainless steek welded shaft
Insulation Class F
Protection Class IPχ8
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL | POWER | MAX.HEAD | MAX.FLOW | OUTLET Dia. | Max. dia. of particle | CABLE | G.W | PACKING DIMENSION |
(Kw) | (m) | (L/min) | (mm) | (mm) | (m) | (K.g) | (cm) | |
V16-9-0.45-FX | 0.45 | 9 | 266 | 50 | 30 | 6 | 17.0 | 29.5X19.5X48.5 |
V19-12-0.75-FX | 0.75 | 12 | 316 | 50 | 30 | 6 | 18.5 | 25.5X19.5X48.5 |
V22-13-0.75-FD | 0.75 | 13 | 366 | 50 | 20 | 6 | 21.0 | 27.5X26.0X53.0 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
