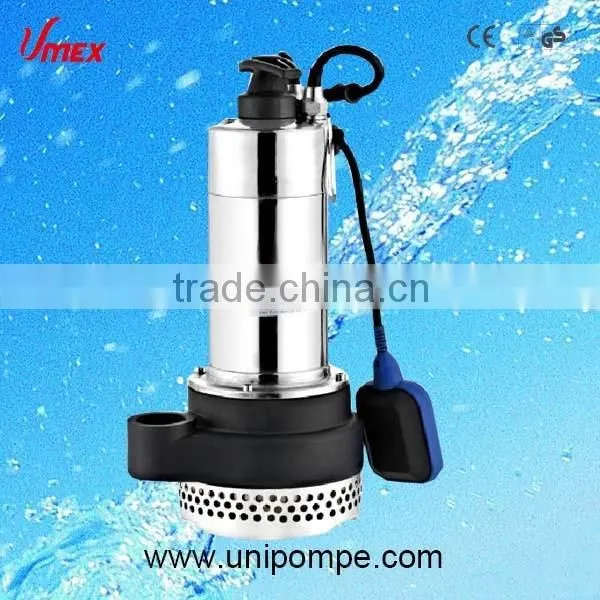

Popular drainage stainless steel submersible pump for dirty water
RANGE OF PERFORMANCE
8Flow rate: up to 300 L/min (18 m3/h)
8Head: up to 24.5 m
LIMITS OF USE
8Maximum immersion depth:5m
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 40mm
Motor
Copper winding
Built-in thermal protector
Stainless steek welded shaft
Insulation Class F
Protection Class IPχ8
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
POWER |
MAX.HEAD |
MAX.FLOW |
OUTLET Dia. |
Max. dia. of particle |
CABLE |
G.W |
PACKING DIMENSION |
(Kw) |
(m) |
(L/min) |
(mm) |
(mm) |
(m) |
(K.g) |
(cm) |
|
GDX12-12-0.75F |
0.75 |
16 |
280 |
16 |
40 |
6 |
15.5 |
20X23X40 |
GDX15-16-1.1F |
1.1 |
24.5 |
300 |
24.5 |
40 |
6 |
18 |
20X23X40 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
