Specifications
5" (125SC) Deep well Pump1. Submersible motor in the upper place
2. AISI 304 shaft
3. With starting controller

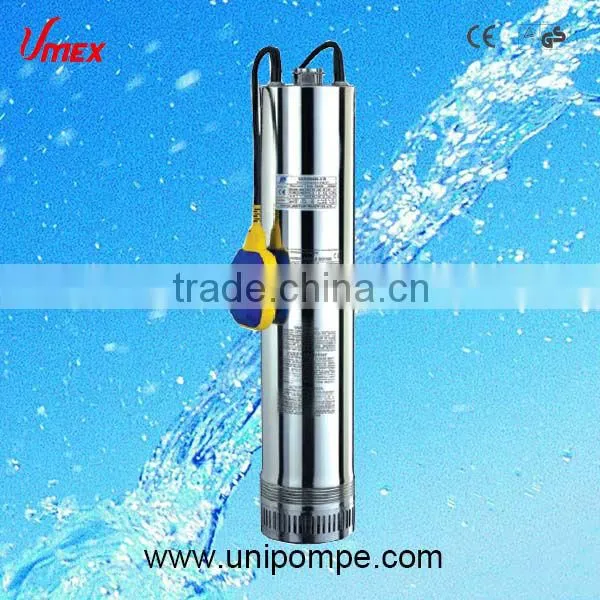

5" (125SC) DEEP WELL SUBMERSIBLE PUMP ,SUBMERSIBLE BOREHOLE PUMP
TECHNICAL DATA:
-Pump
1.Qmax: 7.8(m3/h)
2.Capacity from 2 to 4 (m3/h)
3.Total head from 75 to 13 (m)
-MOTOR
1.Rewindable oil-filled moter.
2.Adopted the NEMA standard.
3.Power: 0.55 to 1.5 KW (1 phase)
4.Power : 1.1 to 1.5 KW (3 phase)
5.Insulation class : B
6.Protection grade: IP 68
7.Maximum diameter : Φ126 mm
8.Highest temperature of liquid : 35 °C
9.International standard: IEC 60335-1 IEC 60335-2-41.
-Application
1.For water supply from wells or reservoirs.
2.For domestic use,for civil and industrial applications.
3.For sprimking and flow irrigation plants.
4.These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.
-Operating conditions
1.Water temperature up to 35 Cent.Degree.
2.Maximum sand content: 0.25%
3.Minimum international diameter of well: 4''.
4.Maximum immersion depth: 80m.
-Materials
1.Pump casing: AISI 304 stainless steel
2.Impeller: plastic (PPO)
3.Diffuser: plastic (PC)
4.Non-return valve: plastic (PPO).
5.Inlet and Outlet: stainless steel.
6.Shaft AISI 304 stainless steel.
7.Motor casing: AISI 304 stainless steel.
8.Mechanical seal: tungsten carbides.
Performance table:
MODEL |
Stage |
Motor Power |
Capacity and head |
Dimension |
||||||||||||
220-240V~50HZ |
380-415V~50HZ |
(Kw) |
(Hp) |
L/min |
0 |
33 |
50 |
58 |
67 |
75 |
83 |
92 |
100 |
Length |
Weight |
|
1 Phase |
3 Phase |
m3/h |
0 |
2 |
3 |
3.5 |
4 |
4.5 |
5 |
5.5 |
6 |
mm |
kg |
|||
125SCM403-0.55S |
3 |
0.55 |
0.75 |
H (m) |
32 |
28 |
27 |
25 |
23 |
21 |
19 |
15 |
13 |
464 |
16 |
|
125SCM404-0.75S |
4 |
0.75 |
1 |
43 |
38 |
36 |
34 |
31 |
28 |
25 |
19 |
17 |
510 |
18 |
||
125SCM405-0.9S |
5 |
0.9 |
1.2 |
56 |
50 |
48 |
46 |
43 |
40 |
37 |
31 |
28 |
560 |
19 |
||
125SCM406-1.1S |
125SC406-1.1 |
6 |
1 |
1.5 |
65 |
56 |
54 |
51 |
47 |
42 |
37 |
28 |
26 |
600 |
20 |
|
125SCM407-1.5S |
125SC407-1.5 |
7 |
1.5 |
2 |
75 |
66 |
63 |
59 |
54 |
49 |
44 |
37 |
30 |
656 |
22 |
|
8Three-phase 380V-50Hz (60hz), single phase 240V/50Hz, 220V/60Hz, 110V/60Hz & 127V/60Hz are available on request.

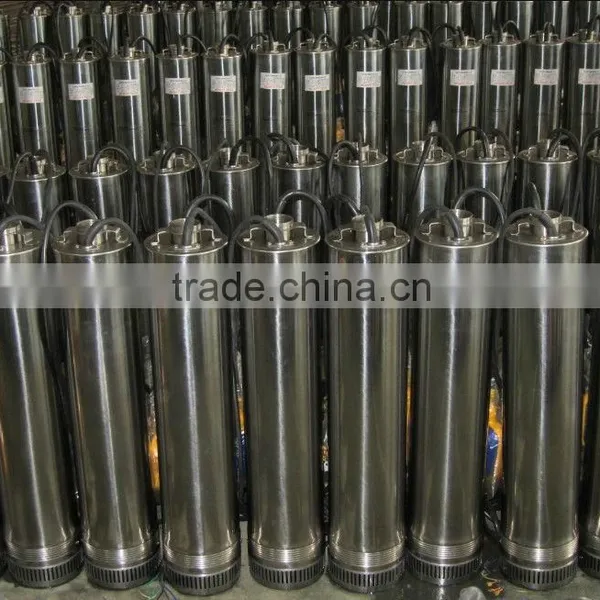

PRODUCTION PROCESS SCHEME
