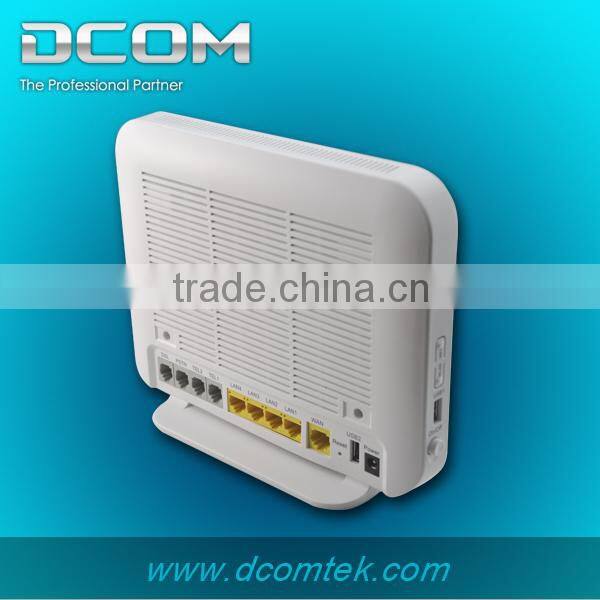

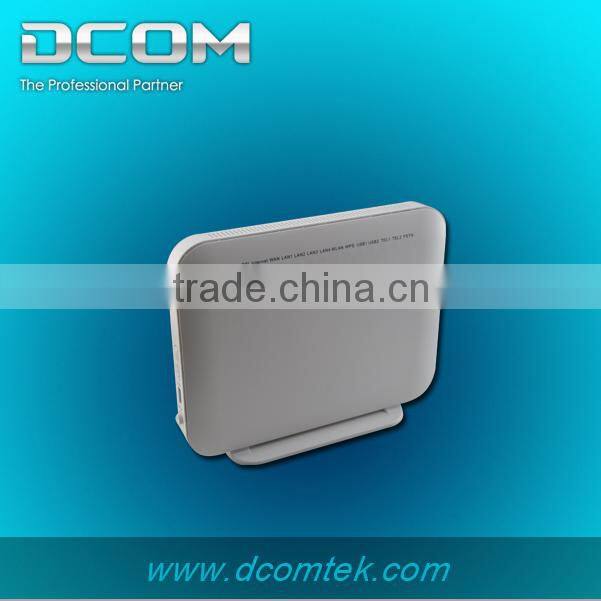

IAD Device 300mbps Vdsl VoIP Router With FXS FXO Port

IAD Device 300mbps Vdsl VoIP Router With FXS FXO Port thumbnail-1
IAD Device 300mbps Vdsl VoIP Router With FXS FXO Port photo-1
US$ 75 - 80 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Soho
Contact Supplier Request Quote Chat Now
Shenzhen Dcom Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wireless
Application Soho
Function QoS
LAN Ports 4
WAN Ports 1
Certification CE,FCC,ROHS
Brand Name OEM
Model Number DIA-V2232BGF
Place of Origin Guangdong, China

Specifications

1. 300mbps vdsl voip iad router
2. gigabit port
3. CE,FCC,ROHS
fessional xdsl product manufacturer

VoIP router with FXS FXO port

System Specifications



Chipset

BCM63168V



DRAM

DDR3 1Gbit



Flash

SPI 16MB or NAND 1Gbit



Wi-Fi

2.4GHz or 5GHz BCM63168V, 802.11b/g/n, 2T2R



Features and Technical Specifications



ADSL Features

=T1.413i2, G.992.1

=G.dmt, G.992.2, G.lite

=G.992.3 (G.bis/ADSL2)

=G.992.5 (ADSL2+)

=ITU G.994.1 (G.hs)

=Annex L (Reach Extended ADSL2)

=Support ATM forum UNI3.0, 3.1 and 4.0 permanent virtual circuits (PVCs)

=Support CBR, UBR, VBR-rt, VBR-nrt

=Support multiple PVCs

Support ITU-T i.610F4/F5 OAM



VDSL Features

=ITU-T G.993.2 VDSL2

=Support 8a,8b,12a,12b,17a 12a_Bonding profile

=Support G.vector

=Support ATM and PTM

=Support G.INP



Protocol Features

=RFC2684 multiprotocol Encapsulation over ATM Adaptation Layer 5

=RFC1483 multiprotocol Encapsulation over ATM Adaptation Layer 5

=RFC2364 PPP over ATM ALL5 (PPPoA)

=RFC2516 PPP Over Ethernet (PPPoE)

=RFC1662 PPP in HDLC-like Framing

=RFC1332 PPP Internet Protocol Control Protocol

=RFC1577/2225 Classical IP and ARP over ATM (IPoA)

=RFC894 A Standard for the Transmission of IP Datagrams over Ethernet Networks

=RFC1042 A standard for the Transmission of IP Datagrams over IEEE 802 Networks

=MER (a.k.a IP over Ethernet over AAL5)

=Support ALG (Application Level Gateways)

=IEEE802.3

=IEEE802.3u

=IEEE 802.11b

=IEEE 802.11g

=IEEE 802.11n



Bridging Features

=Self-learning bridge (IEEE 802.1D Transparent Bridging)

=At least 64 learning MAC addresses

=Support IGMP snooping



Routing Features

=RFC768 User Datagram Protocol (UDP)

=RFC791 Internet Protocol (IP)

=RFC792 Internet Control Message Protocol (ICMP)

=RFC793 Transmission Control Protocol (TCP)

=RFC826 An Ethernet Address Resolution Protocol (ARP)

=RFC862 Echo Protocol

=Support IP routing

=Support transparent bridging

=Support source and destination routing

=Support DHCP server/client

=Support UPnP

=Support NAT,NAPT

=Support DMZ

=Support IP QoS

=Support IGMP proxy

=Support IPv6



Management

=Device Configuration, Management and Update

=Web based GUI

=Localization support

=Embedded web server

=Download image via HTTP, TFTP client, TFTP server, FTP server

=Command Line Interface via serial port, telnet, or ssh

=Menu-driven CLI via serial port or telnet

=Universal Plug and Play (UPnP) Internet Gateway Device (IGDv1.0)

=WAN Management Protocol (TR-069)

=SNMP v1/v2

=PSI configuration file upload and download

=Date/time update from SNTP Internet Time Server



Security

=Three-level login including local admin, local user, and remote technical support access

=Service access control based on incoming interface: WAN or LAN

=Service access control based on source IP addresses

=Protect DOS attacks from WAN: SYN flooding, IP surfing, ping of Death, fragile, UDP ECHO (port 7), teardrop, land

=PAP (RFC1334), CHAP (RFC1994), MSCHAP for PPP session

=IP filter, Parental control



Wireless Features

Standard

IEEE802.11b/g/n



Modulation schemes

=802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS

=802.11b: CCK, DQPSK, DBPSK

=HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK



Wireless data rate

=802.11b: 11, 5.5, 2, 1 Mbps per channel, auto fallback for extended range

=802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps per channel, auto fallback for extended range

=HT20: up to 150 Mbps

=HT40: up to 300 Mbps



Security

64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x



External Connectors

=1 x VDSL interface

=4 x RJ45 LAN Ethernet interfaces 10M/100M

=1 x 10M/100M/1000M WAN Interface

=2 x USB 2.0 host

=2 x FXS

=1 x FXO

=1 x reset button

=1 x WPS button

=1 x WLAN button

=1 x power jack

=1 x power switch



Environment Requirement



Operating Temperature

0ºC—40ºC



Storage Temperature

-20ºC—70ºC



Operating Humidity

10%—95%, non-condensing



Storage Humidity

5%—95%, non-condensing



Power Supply

12VDC, 2.0 A



Consumption

24W (including power Adapter)



EMC and Safety



Regulation Compliance

=CCC Class B

=CE



Safety Regulations

UL



Green Standard

RoHS



Physical Characteristics

Physical Dimension

L*W*H=250mm*61mm*173mm

Weight

466g (not including power adapter)
